/01/Gallery
Around and inside.
Images Coming Soon

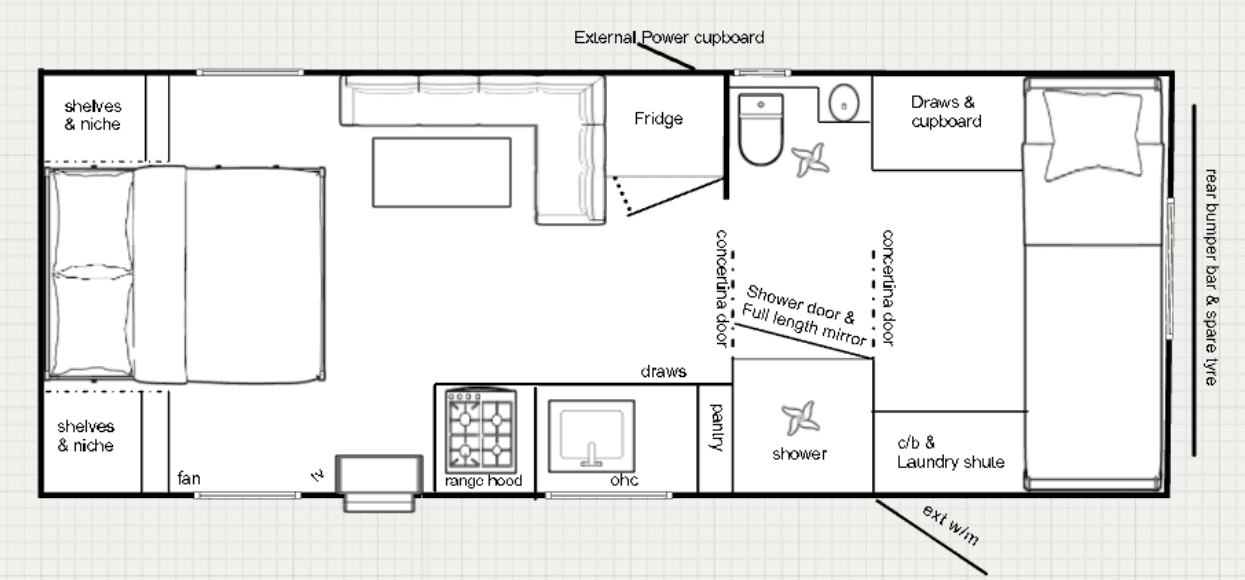

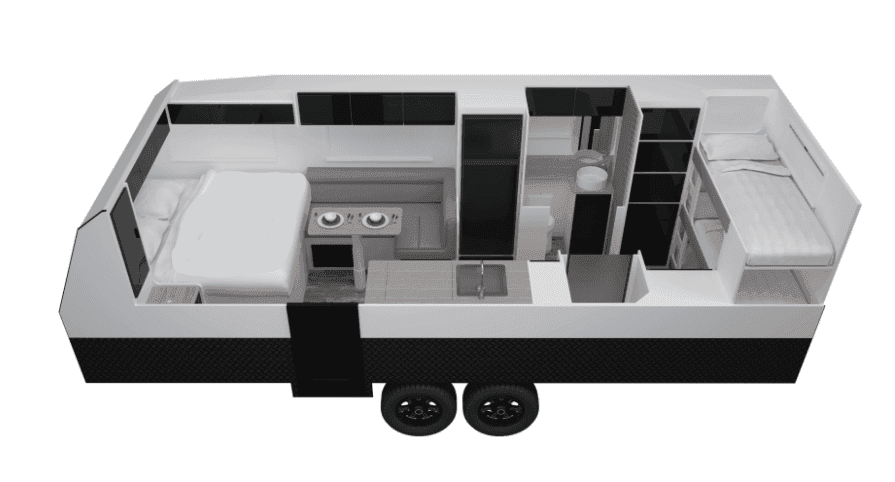

/02/Floorplan
Laid out for living in.
This smart Zenith layout gives you a private front bedroom, a separate rear single bed and a central club lounge, so everyone has their own space to relax. The mid-van kitchen, full shower and toilet, and dedicated storage including pantry, drawers and laundry chute keep everyday living practical and clutter-free on the road.
Indicative floorplan — layouts and inclusions vary with your final spec.
/03/Weights
The numbers.
- 3500kg
- ATM
- 2800kg
- Tare
- 0kg
- Payload
- 0kg
- Ball
/04/Inclusions
Standard, not optional.
What ships on every Zenith before you’ve customised a thing. Every list is a starting point — add, swap or trim with us at the factory.
- Tandem Axle
- Australian-made flat chassis with 2" riser
- Checker plate chassis box-mounted
- Roller rocker suspension (off-road available)
- 15/235 all-terrain tyres & rims (off-road available)
- 1 x spare tyre on rear
- Tow Ball
- Large tunnel boot (560mm x 500mm)
- 6" Drawbar
- Tap on A-frame
- External gas bayonet
- One-piece fibreglass roof
- 1 x 110 litre grey water tank
- 2 x 9kg gas bottles
- Honeycomb core waterproof one-piece floor construction
- Extended A-frame with toolbox
- External picnic table
- External LED lights (front & rear + sides, includes bug light function)
- Meranti timber frame with full insulation
- Aluminium composite cladding
- LED Lava Grab Handle
- Roll-out awning with centre support
- 2 x 95 litre freshwater tanks
- Checker plate chassis box-mounted batteries
- Entertainment unit (TV bracket, power point, 12V and aerial) and external speakers
- Queen bed with inner spring mattress (6'2" x 5') or king bed with inner spring mattress (7'8" x 5'9")
- Full adult-size bunk beds or triple bunks (6' x 2'2")
- Full ensuite with separate shower & toilet plus vanity basin
- Double-glazed windows with inbuilt privacy & fly screens
- 2 x LED skylight hatches
- LED lights to all areas of the van which have inbuilt USB points
- L-shape seating in soft vinyl with hand-stitched upholstery
- Telescopic dining table (can convert to another bed) with an insert cushion available
- Lift up master bed on struts with underneath storage (only in queen bed)
- Fan to master and bunk beds
- 28 litre gas & electric hot water service
- Standard stainless steel kitchen sink and fixtures
- USB charging points
- Backlit mirror
- Front loader washing machine
- 24-inch Smart TV with remote 12V/240V
- GREE 3.5kW inverter air conditioner/heater
- Large 270 litre 12V compressor Sphere fridge
- Bluetooth stereo system with remote
- Safety Dave Bluetooth reverse camera with 6" monitor
- Milenco Dust Reduction with amplified TV Antenna
- Combo (Microwave/Air Fryer/Convection) and Induction (2-burner)
- Full-size gas oven with 4-burner cooktop (1 is 240V electric burner)
- Victron DC-to-DC 50A charger and 65A Smart Battery Protect with 500A SmartShunt
- Cerbo GX, Touch 50 (7-inch touch screen)
- Victron Energy MultiPlus-II 12/3000/120-32 230V Inverter
- 1000W solar panels (4 x 250W Arizon panels) with 2 x Smart Solar Controller MPPT 100/50
- 2 x Arizon 230Ah 12V LiFePO4 lithium batteries
- 240V point & 12V socket
- Samaria wireless phone ports on each side of the bed
- Starlink ready with RJ45 socket
/05/Optional Extras
Optional, not standard.
Want more from your Zenith? These upgrades aren’t part of the standard build, but they’re available to add at the factory — spec them in to suit your trip, your budget, or your build.
- 24V: 5000W Victron inverter, 24V solar panels, 2 x Arizon 25.6V 230Ah lithium batteries
- Electric Jack + Anderson Plug
- Outdoor hot/cold shower
- Electric steps
- Decorative timber on the main bed and bathroom
- Fusion stereo system
- Dishwasher
- Independent suspension (DO35, 16" tyres and 12" electric brakes)
- Upgrade to 17-inch wheels/rims
- Annex
- 32-inch Smart TV with remote
- Instant hot water
- Black, Gold, Nickel / Copper Packages
- Mirrored shower door
- Loo Seal Toilet or OGO Compost Toilet
- Mickey Thompson tyres
- Aluminium Frame
- Electronic Stability Control
- Raptor-coated chassis
- Additional PowerPoint
- Additional 110 litre fresh water tanks
- Stone guard
- Diesel Heater
- Upholstery around the bed base
- X-plate + Smooth finish toolbox
- Battery Package: Upgrade to 2 x Arizon 460Ah lithium batteries
- Slide-out tunnel boot
- Protection rail on bunk
- Exterior colour - Additional cost for a different colour other than dark grey, black and white
- 2 x 24-inch TV in bunks
- Electric awning - Bluetooth enabled
- Gladiator Package
- Aluminium corners/trims
- Additional Fan + Remote
- Bike Racks - 2, 3, 4
- Vendline clothesline
/06/Construction
Built like it means it.
/07/Next step
Make it your Zenith.
Ask a question, book a factory walk-through, or start speccing. We reply within one business day.
Call 0478 555 088
