The range · Family · Bunk van/21′6″
Classic
The family all-rounder — queen up front, bunks down back, and the biggest payload in the range. Load it for the long lap.

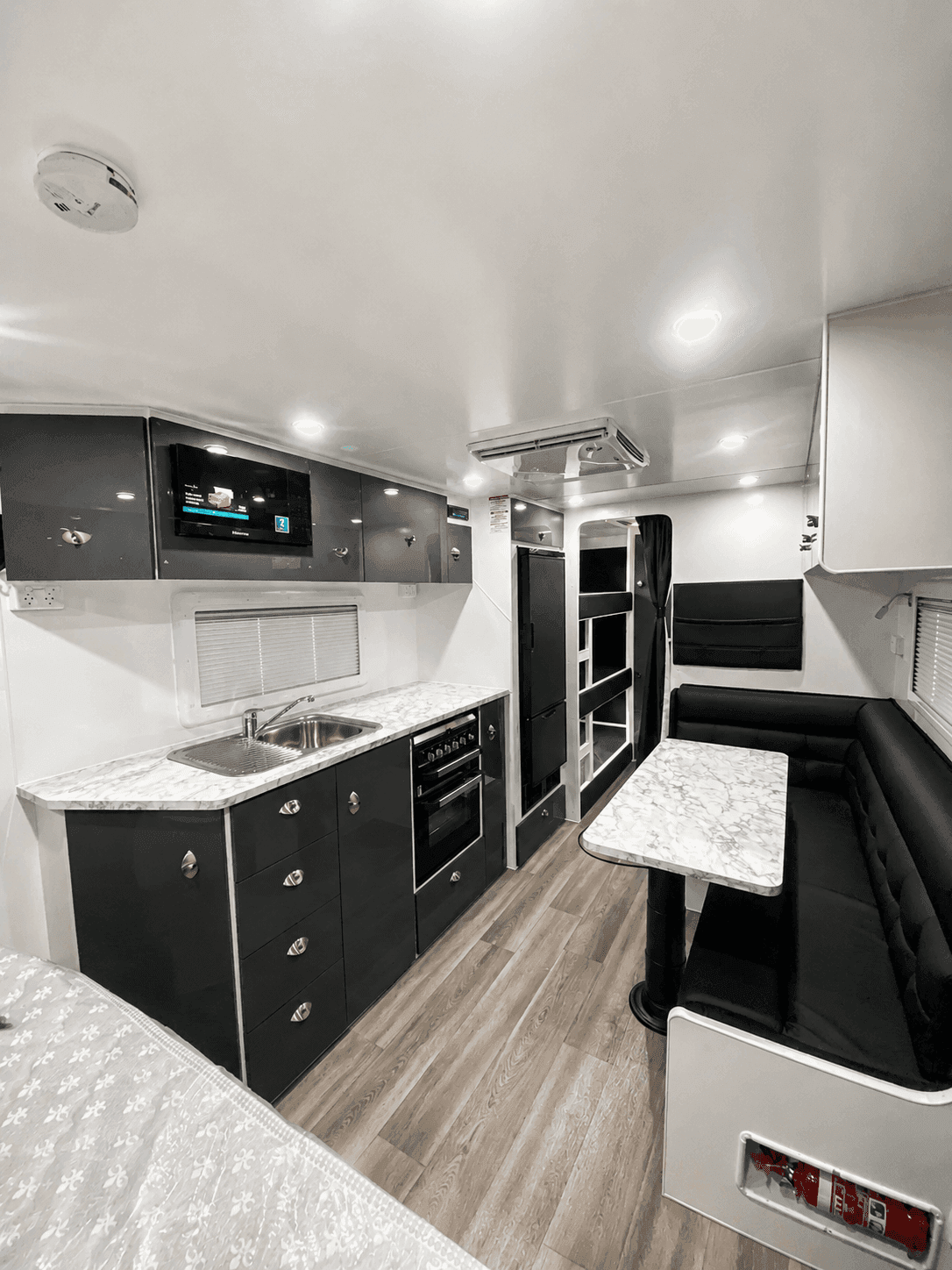

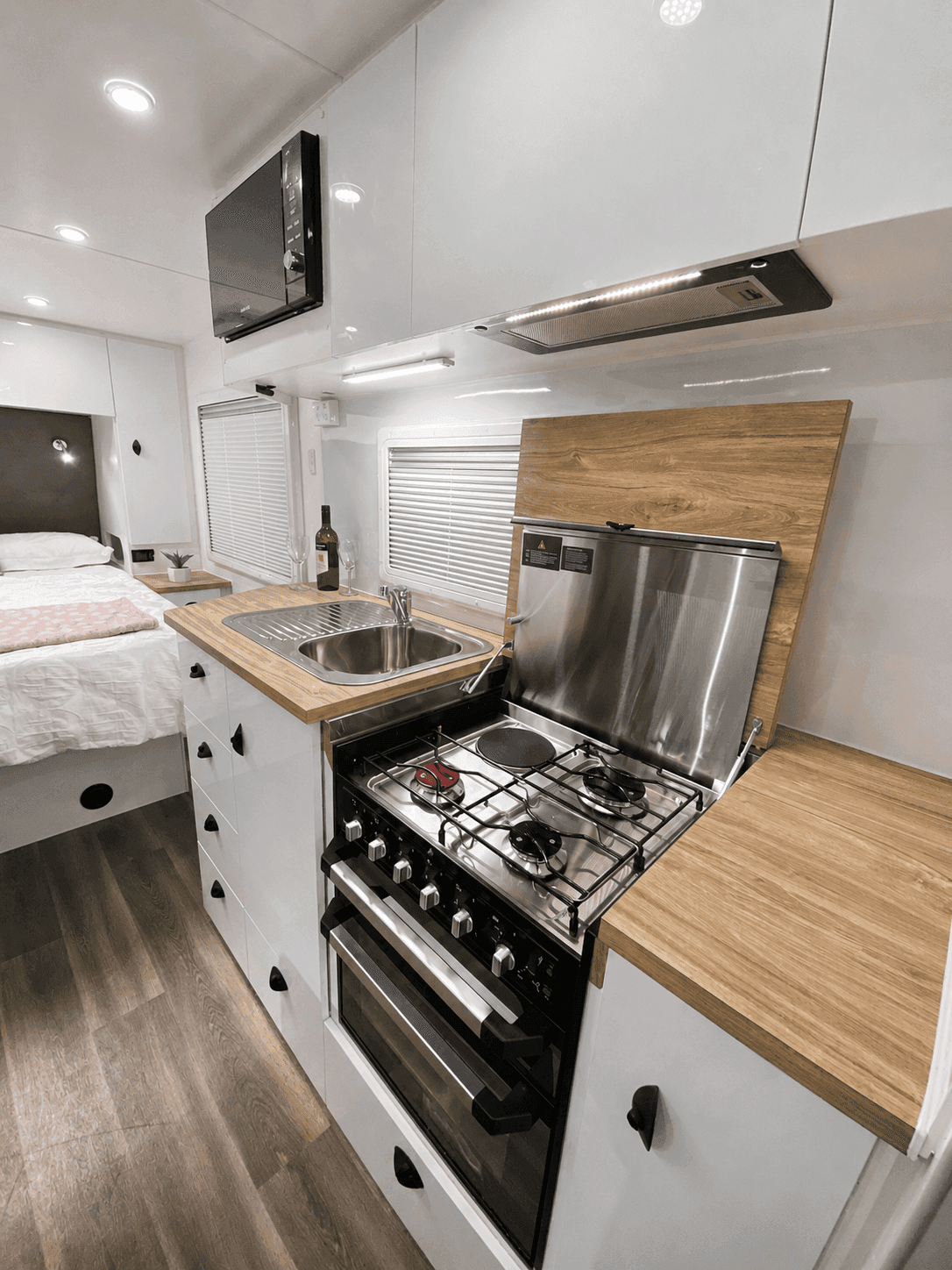

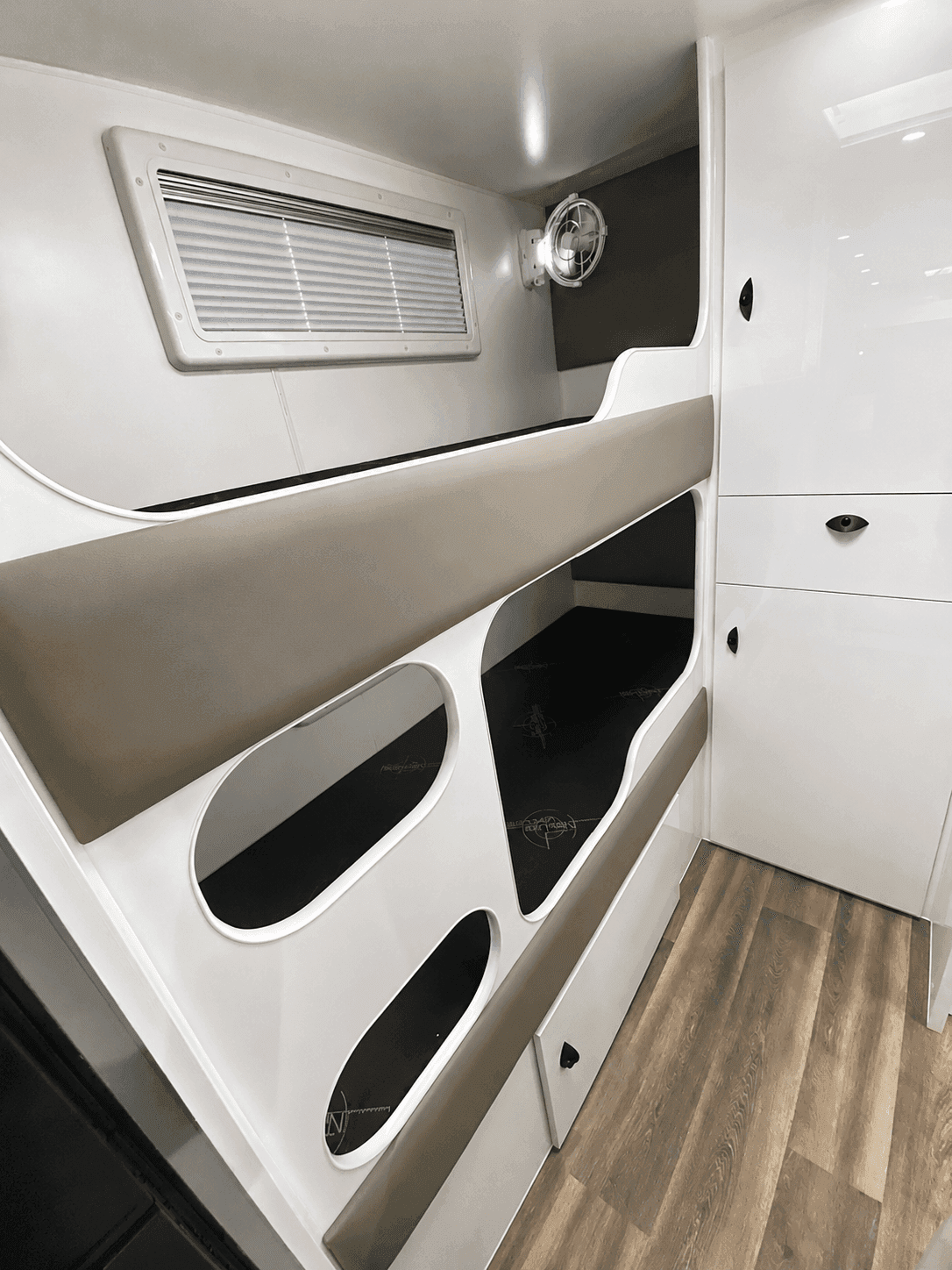

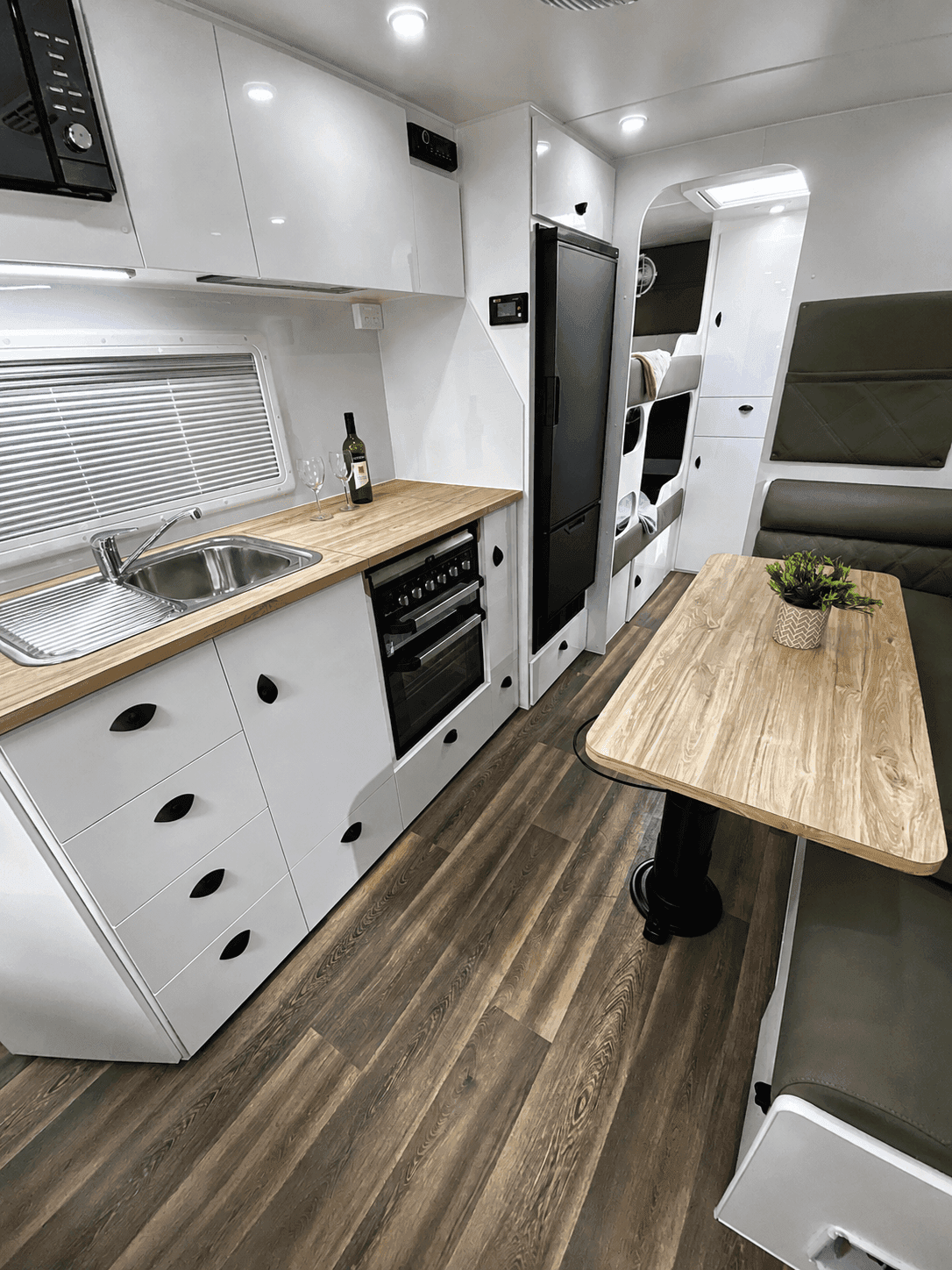

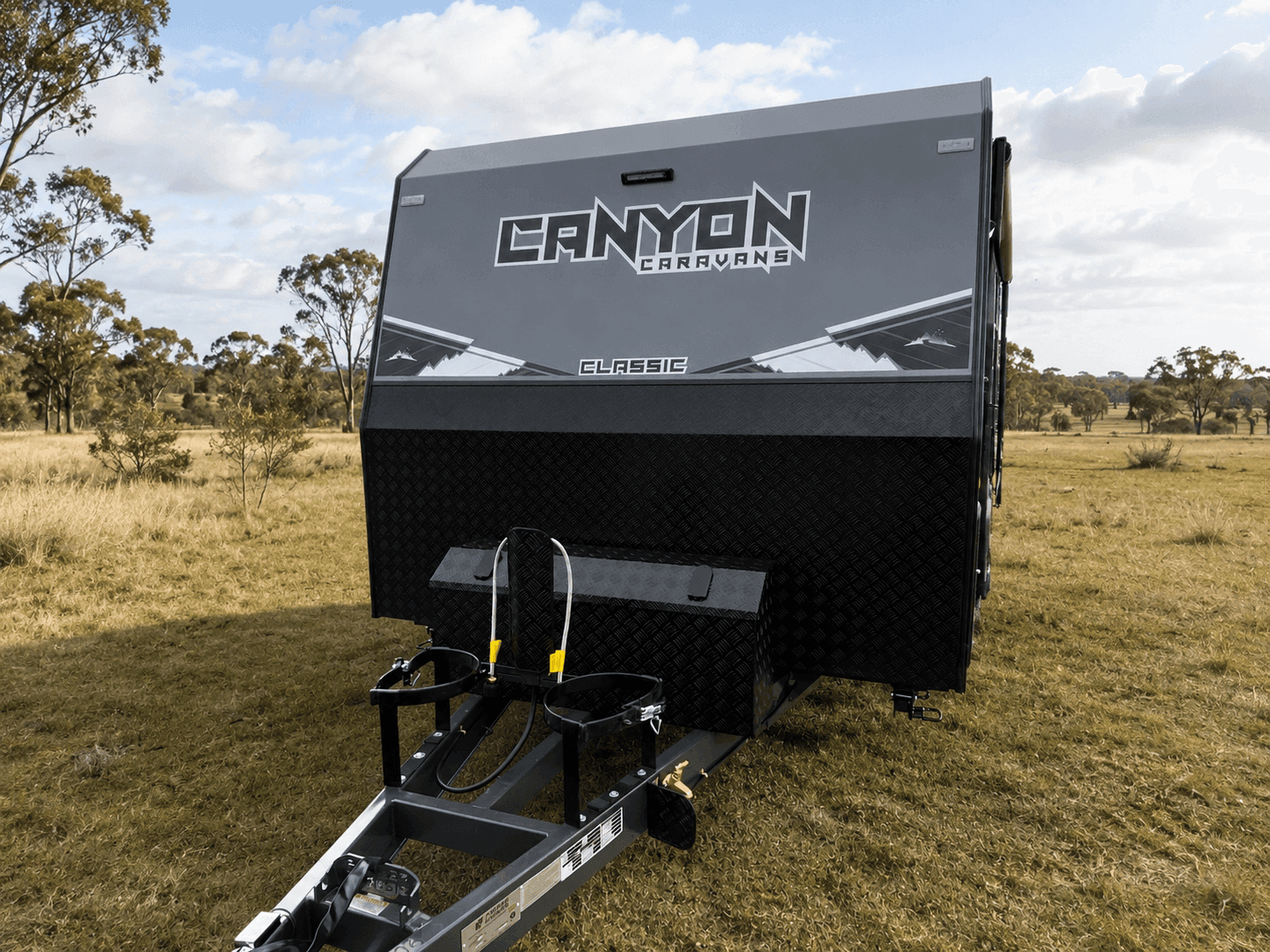

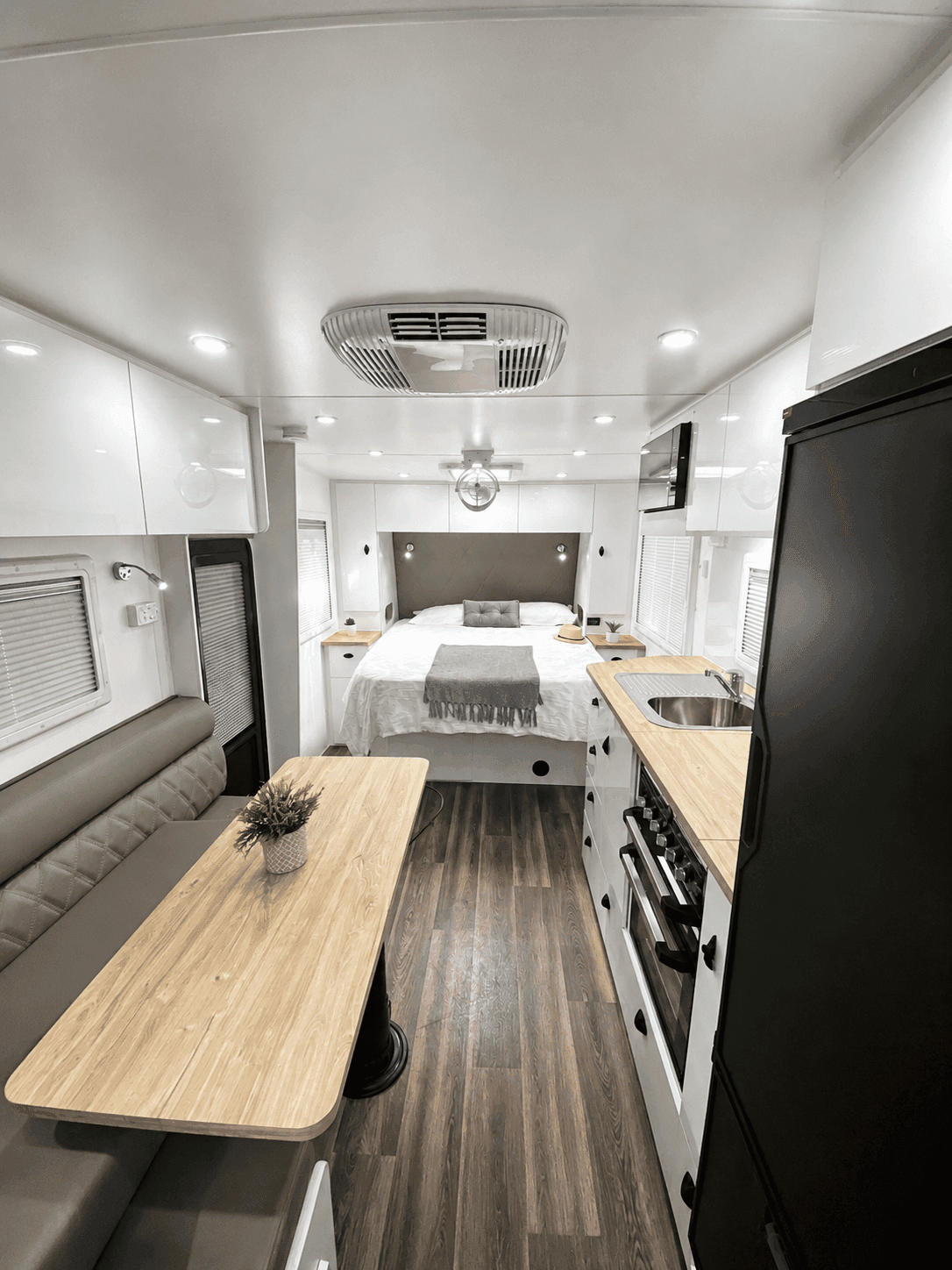

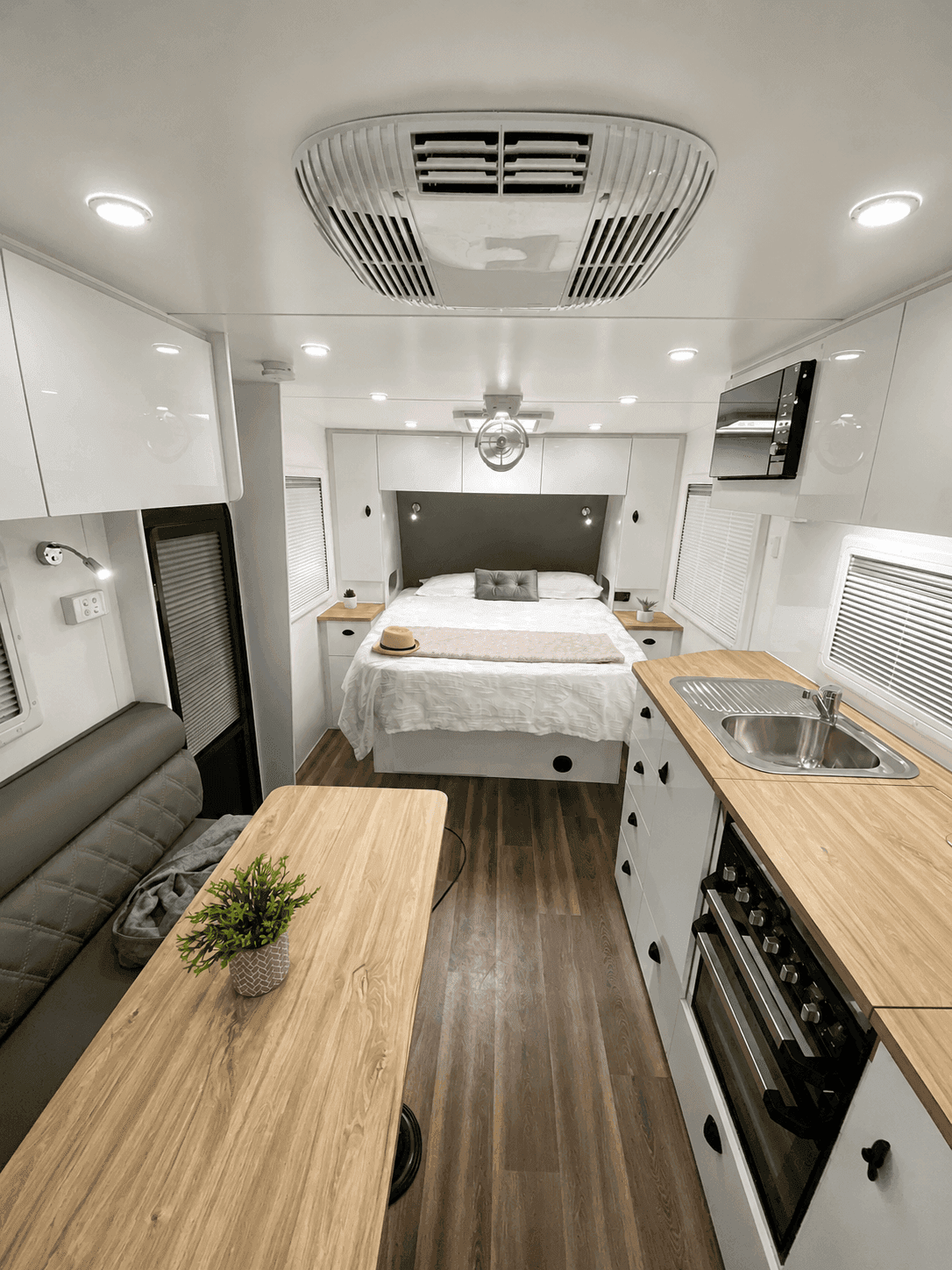

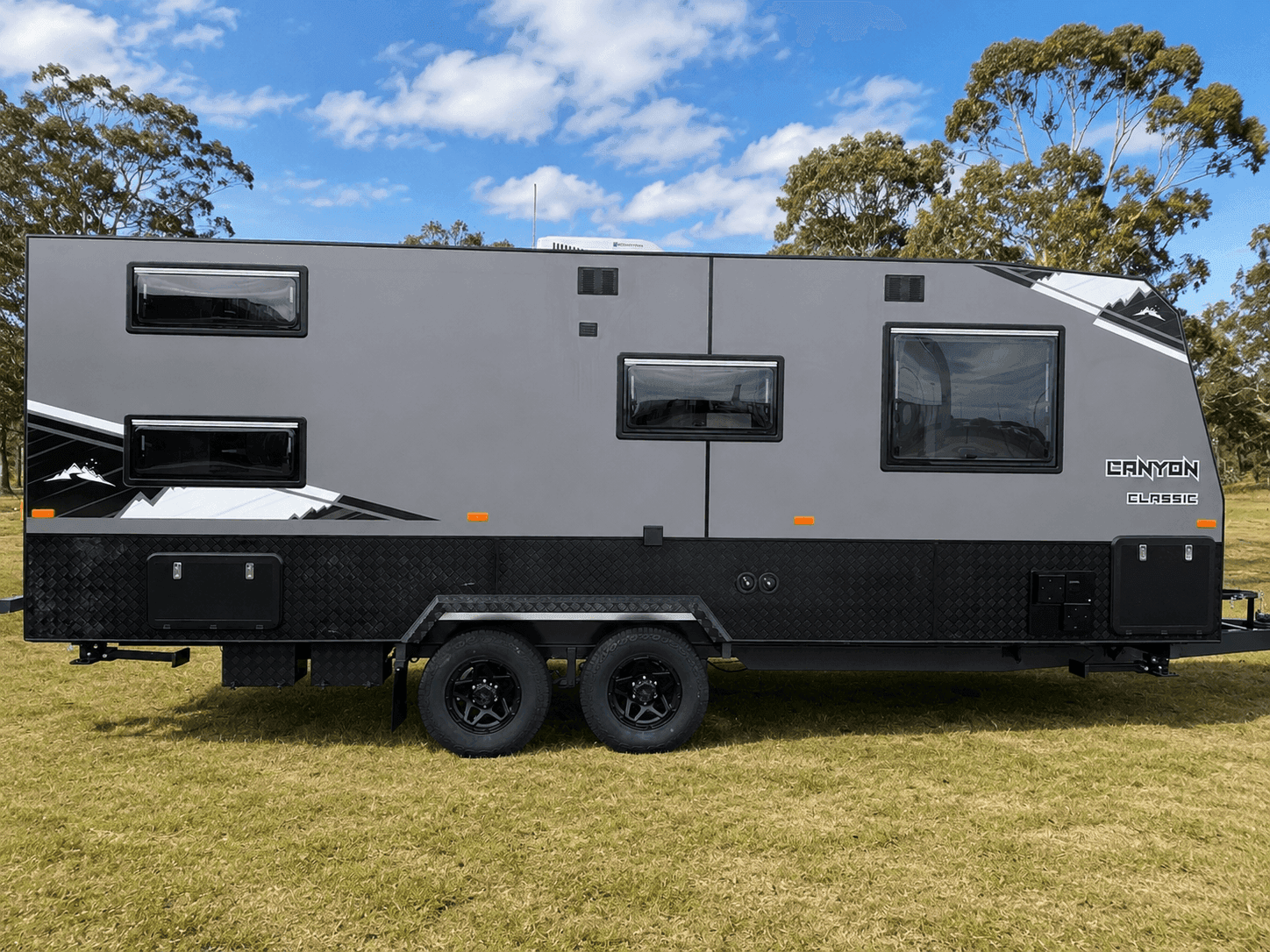

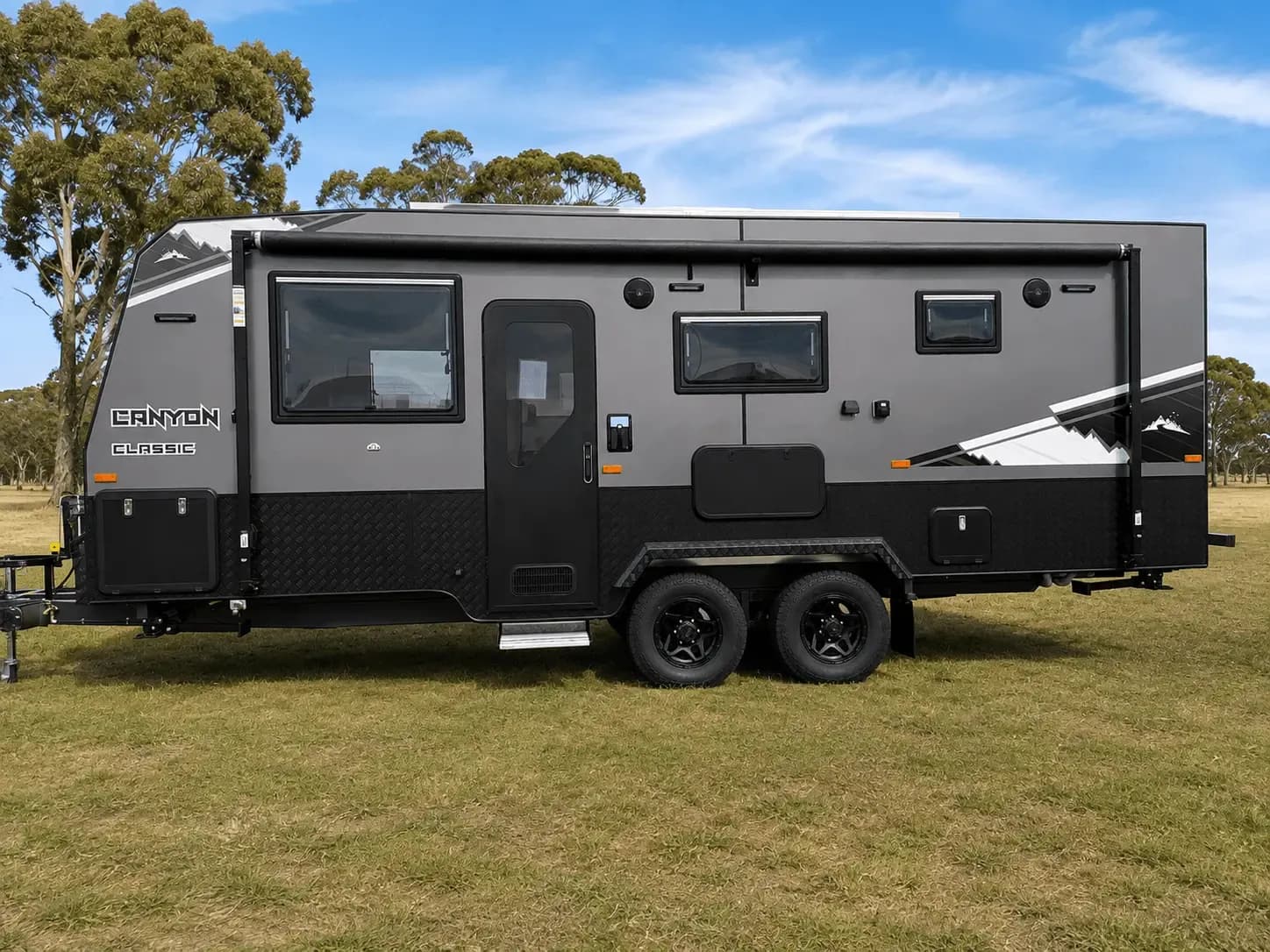

/01/Gallery
Around and inside.
Walkthrough
Step inside the Classic.
Take a quick vertical walkthrough — from the queen bed up front to the bunks down back, exactly as you'd see it on the factory floor.
Special series

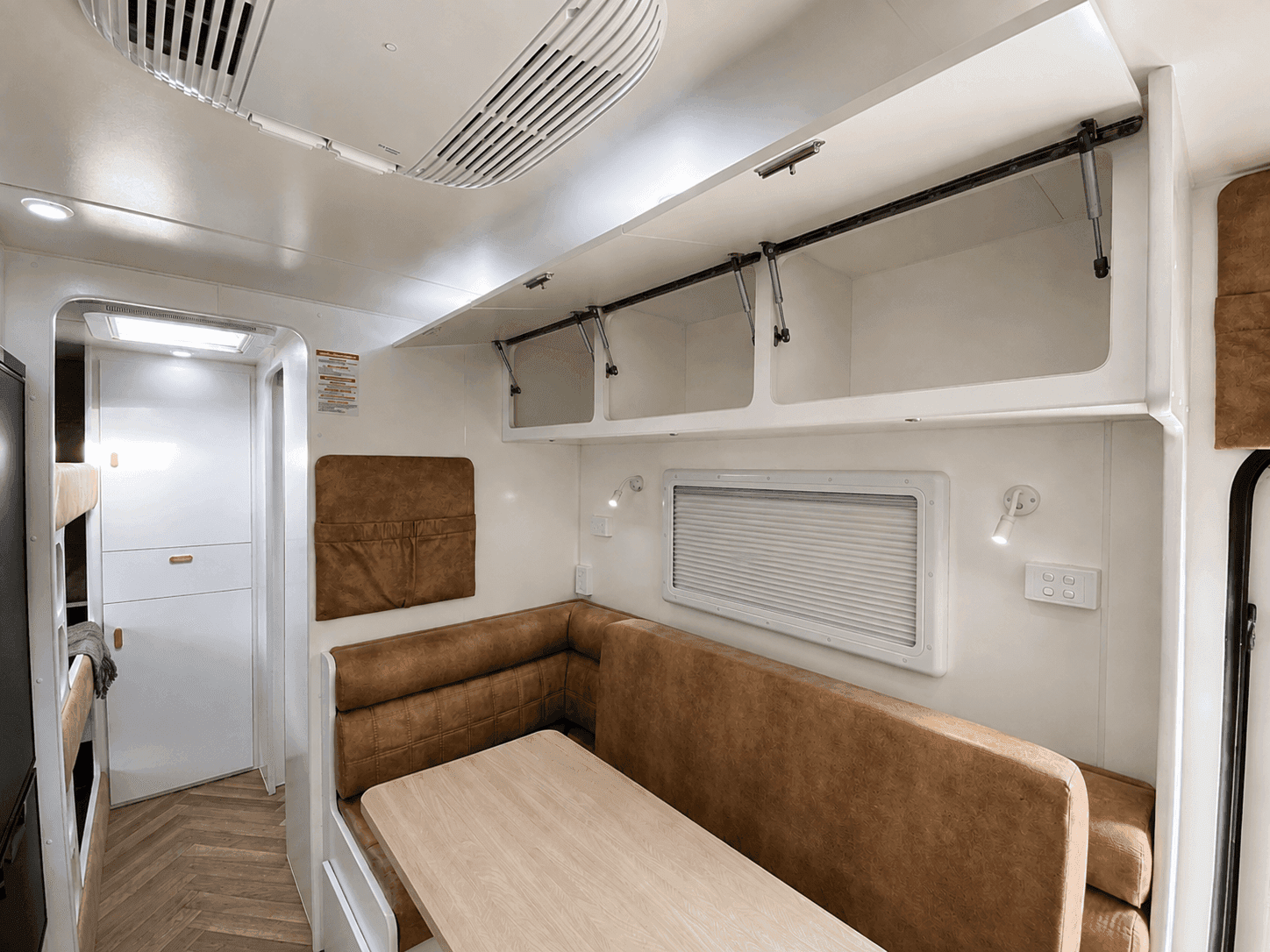

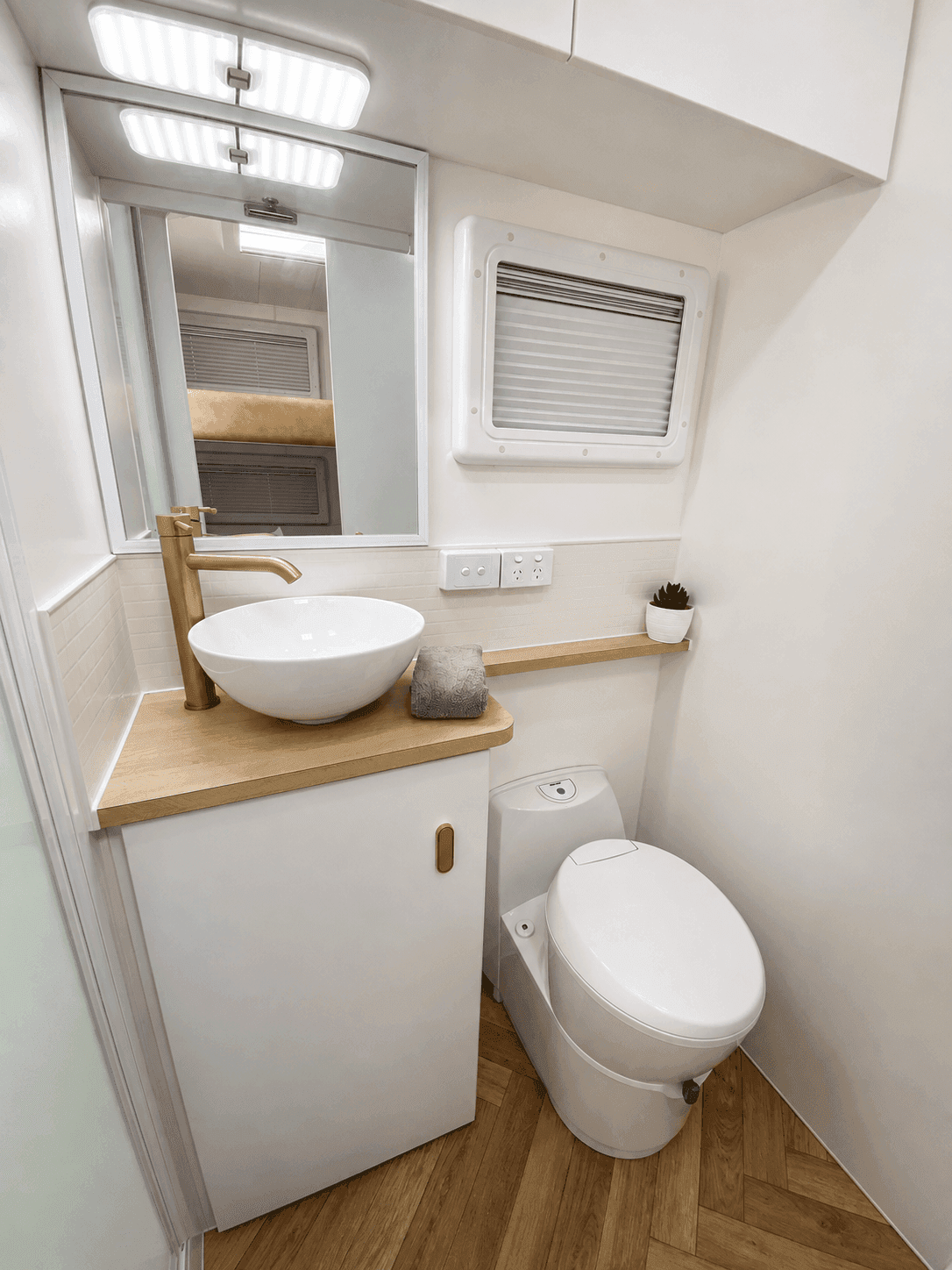

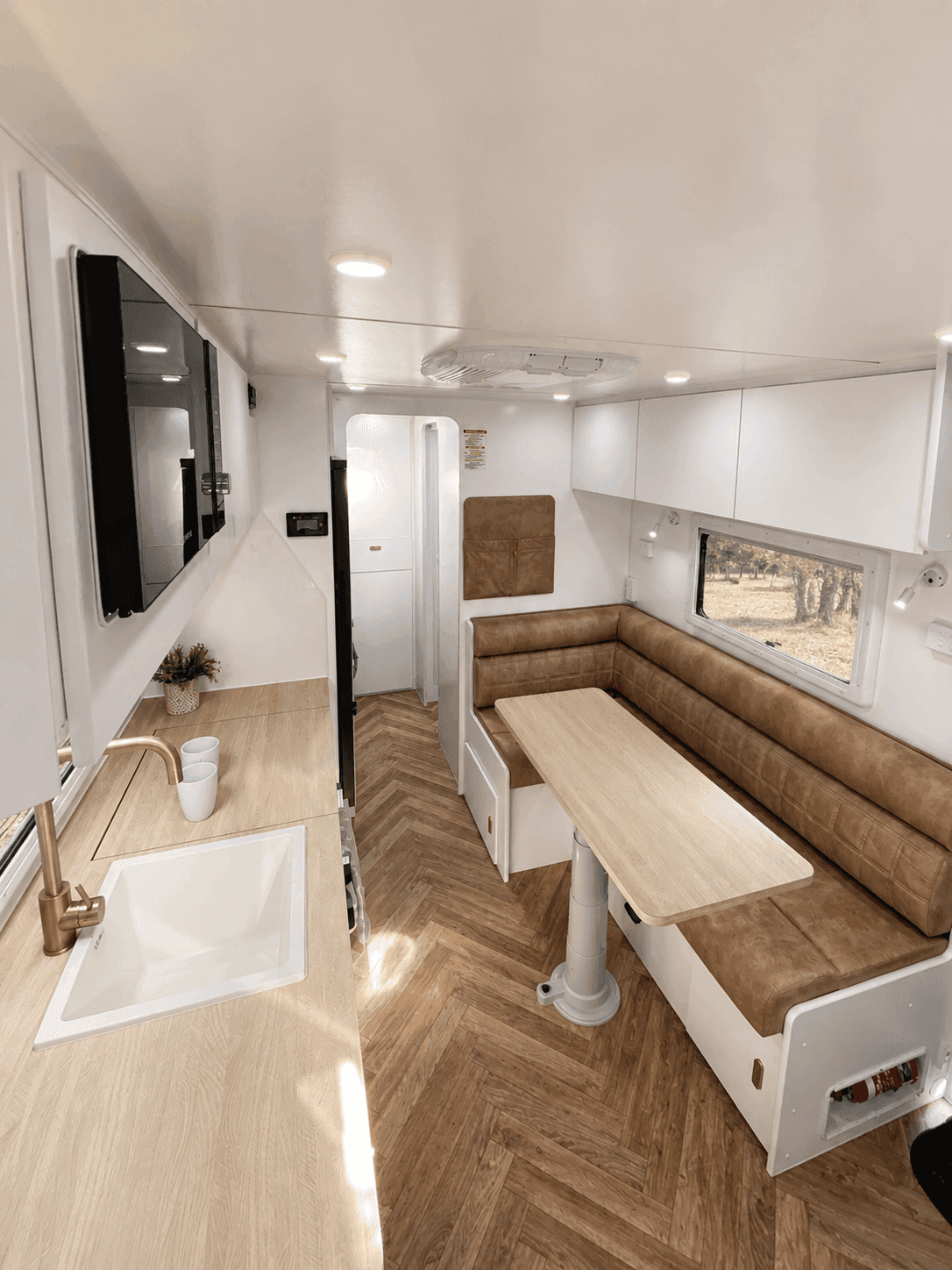

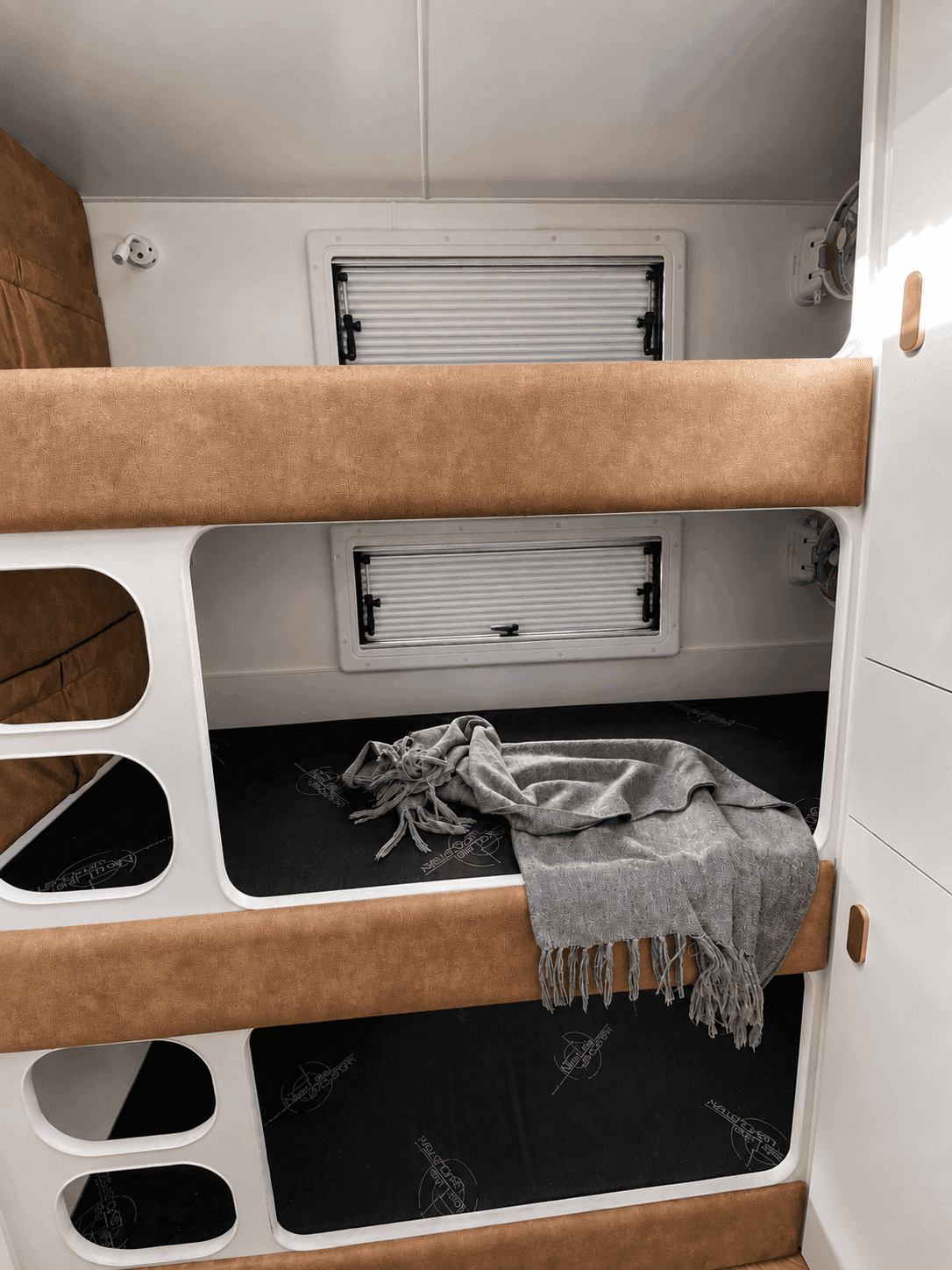

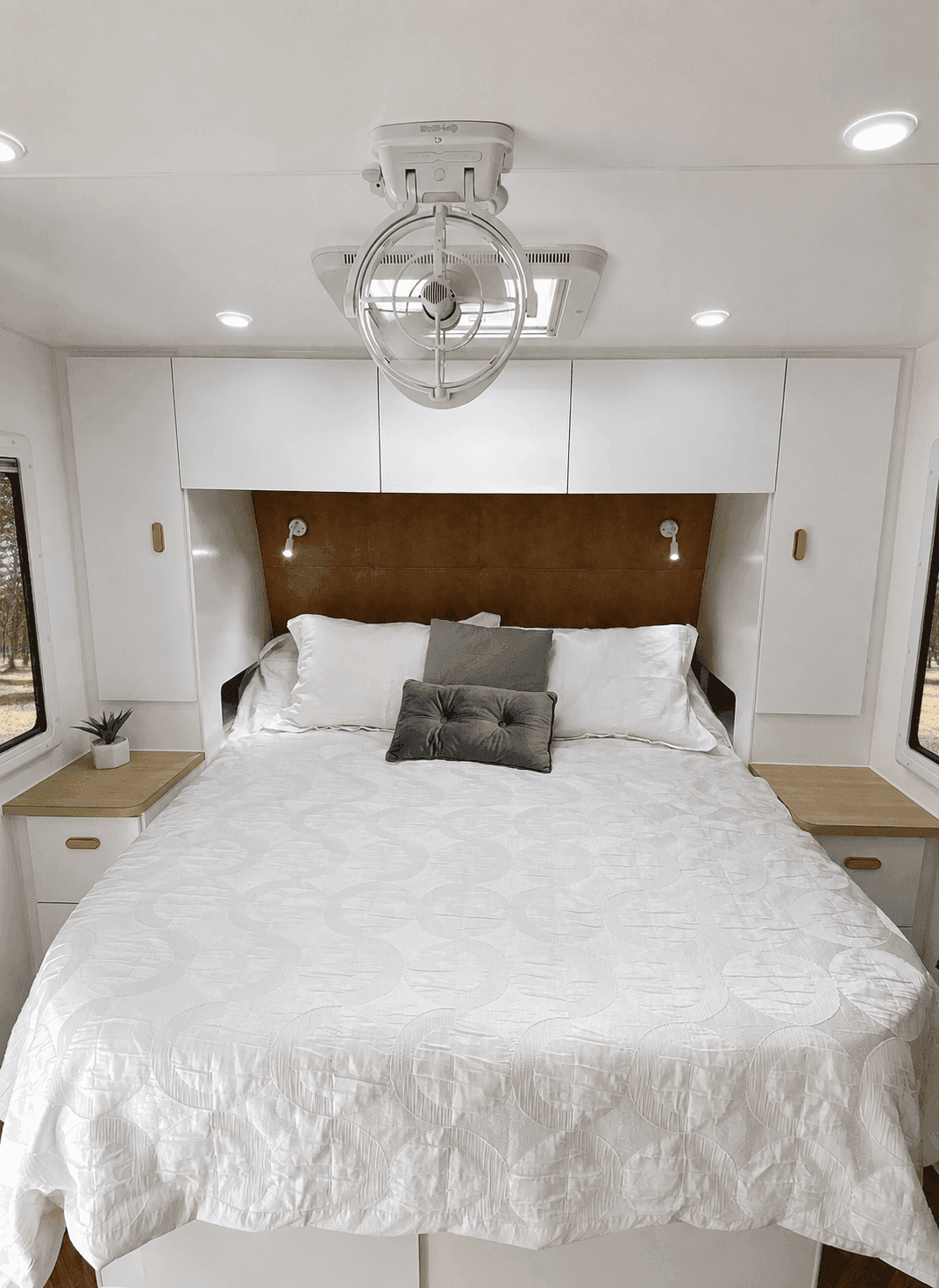

The Classic Gold.

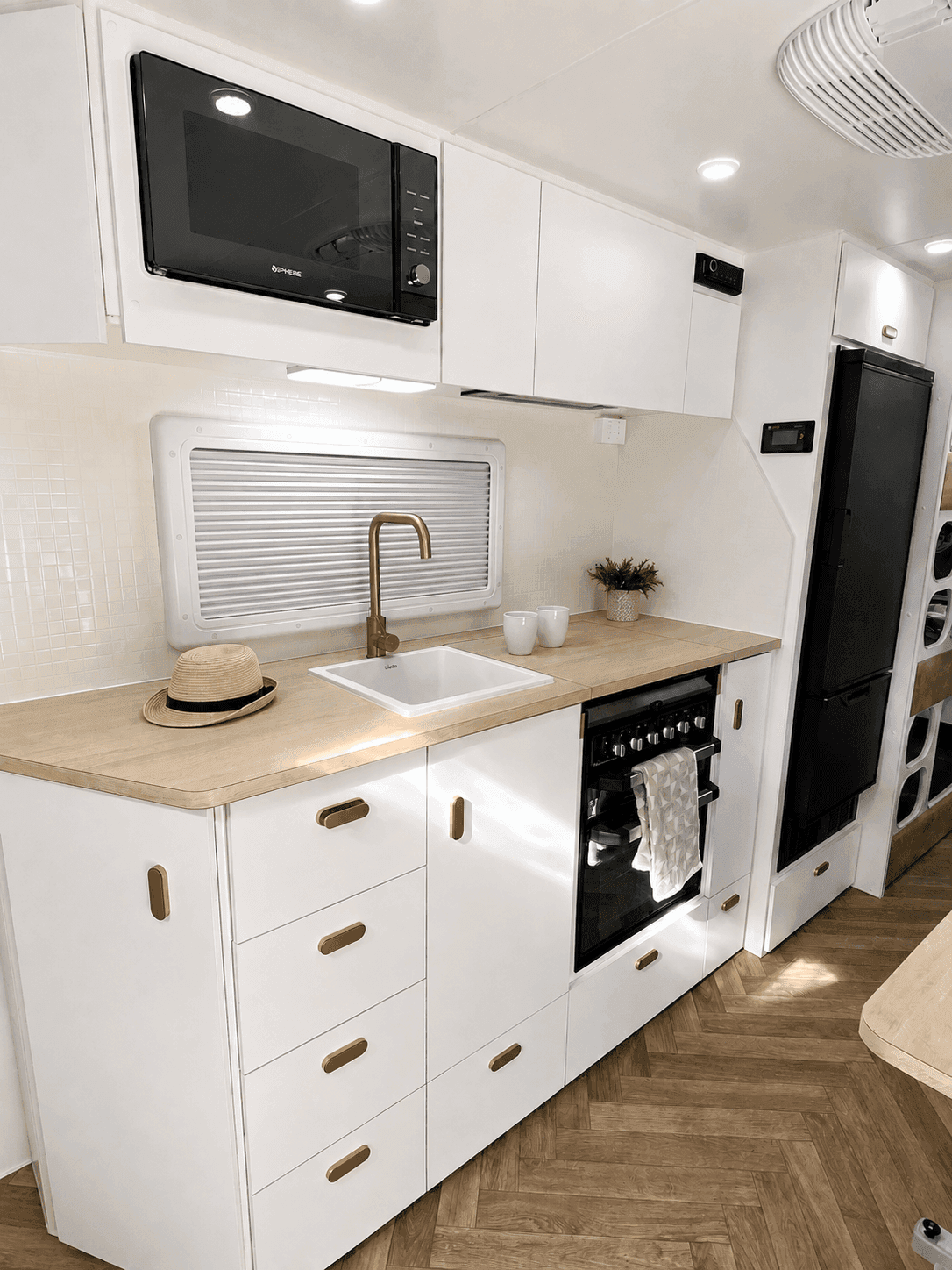

Brushed-gold tapware and handles, warm timber and tan leather — the same family layout, finished a shade richer.
/02/Floorplan
Laid out for living in.

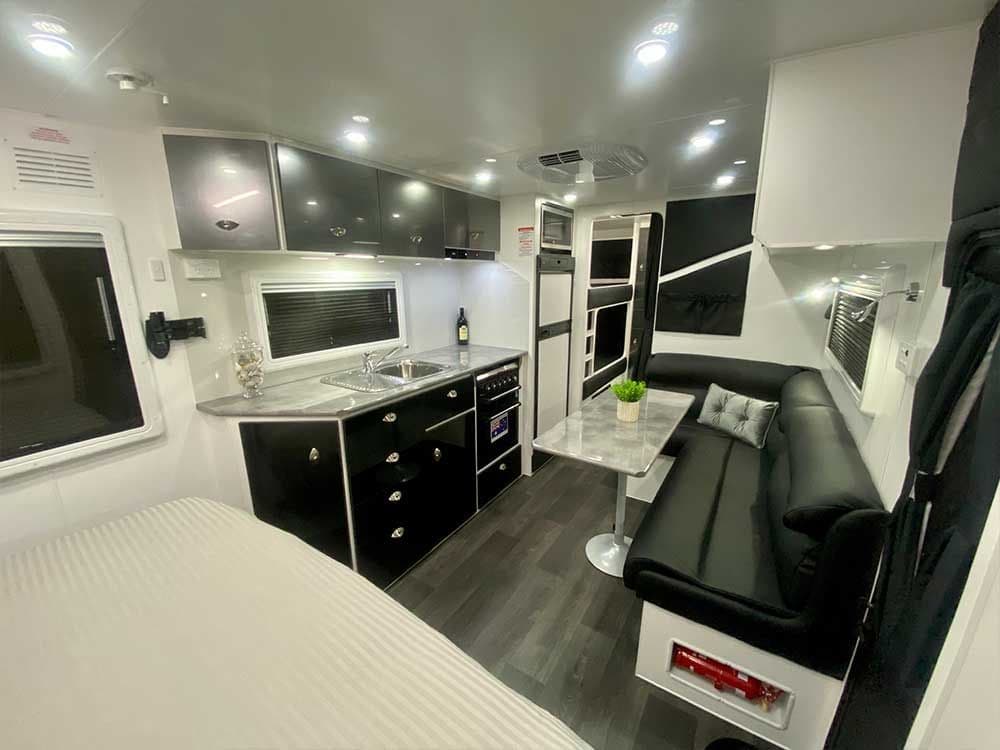

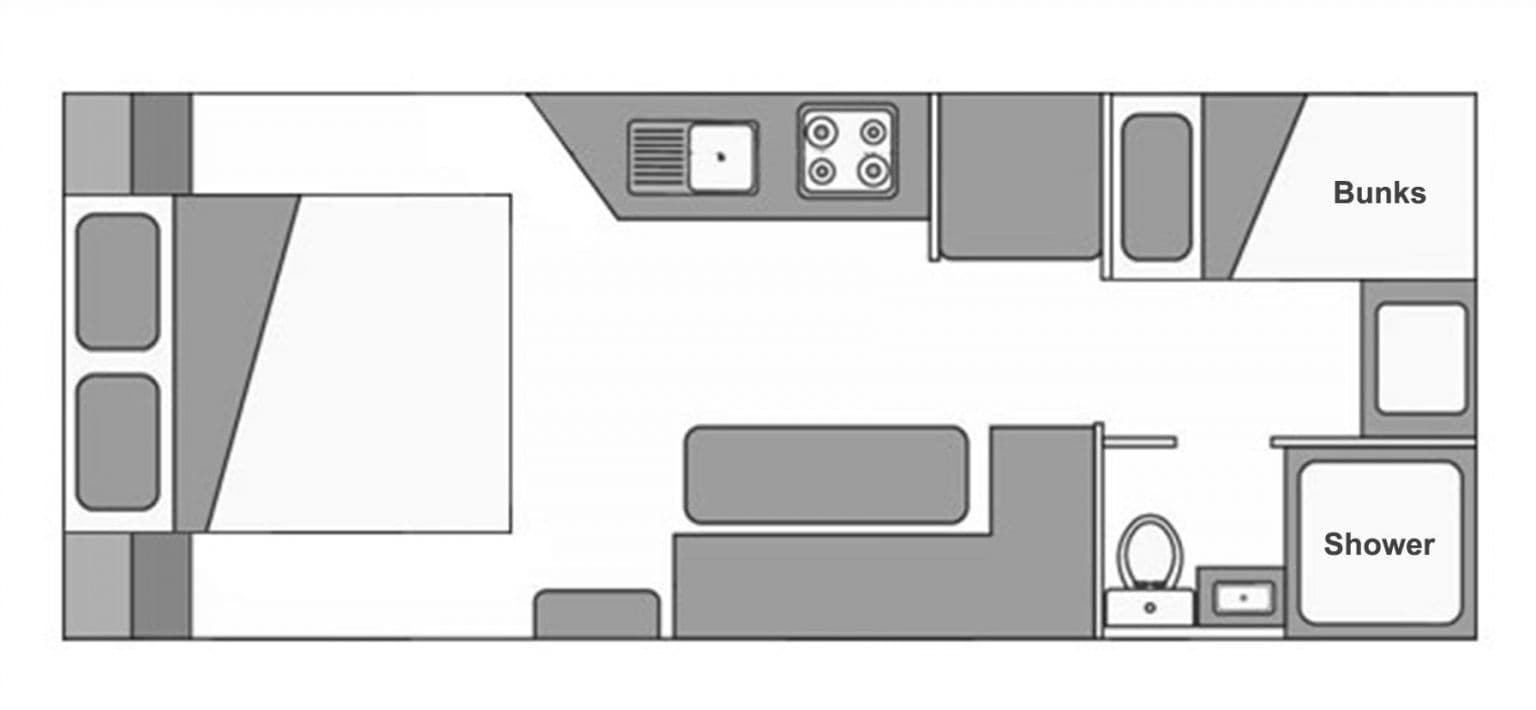

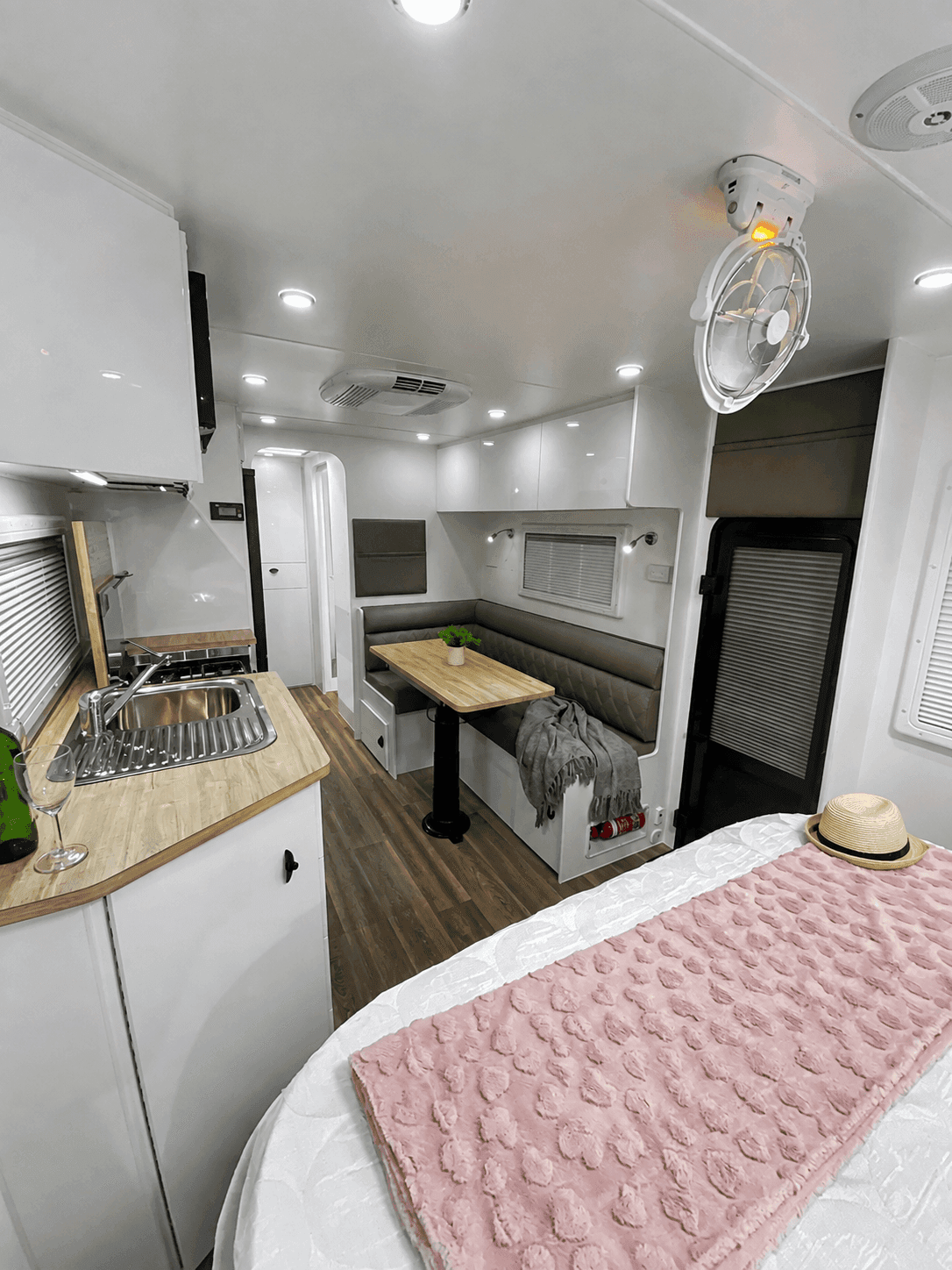

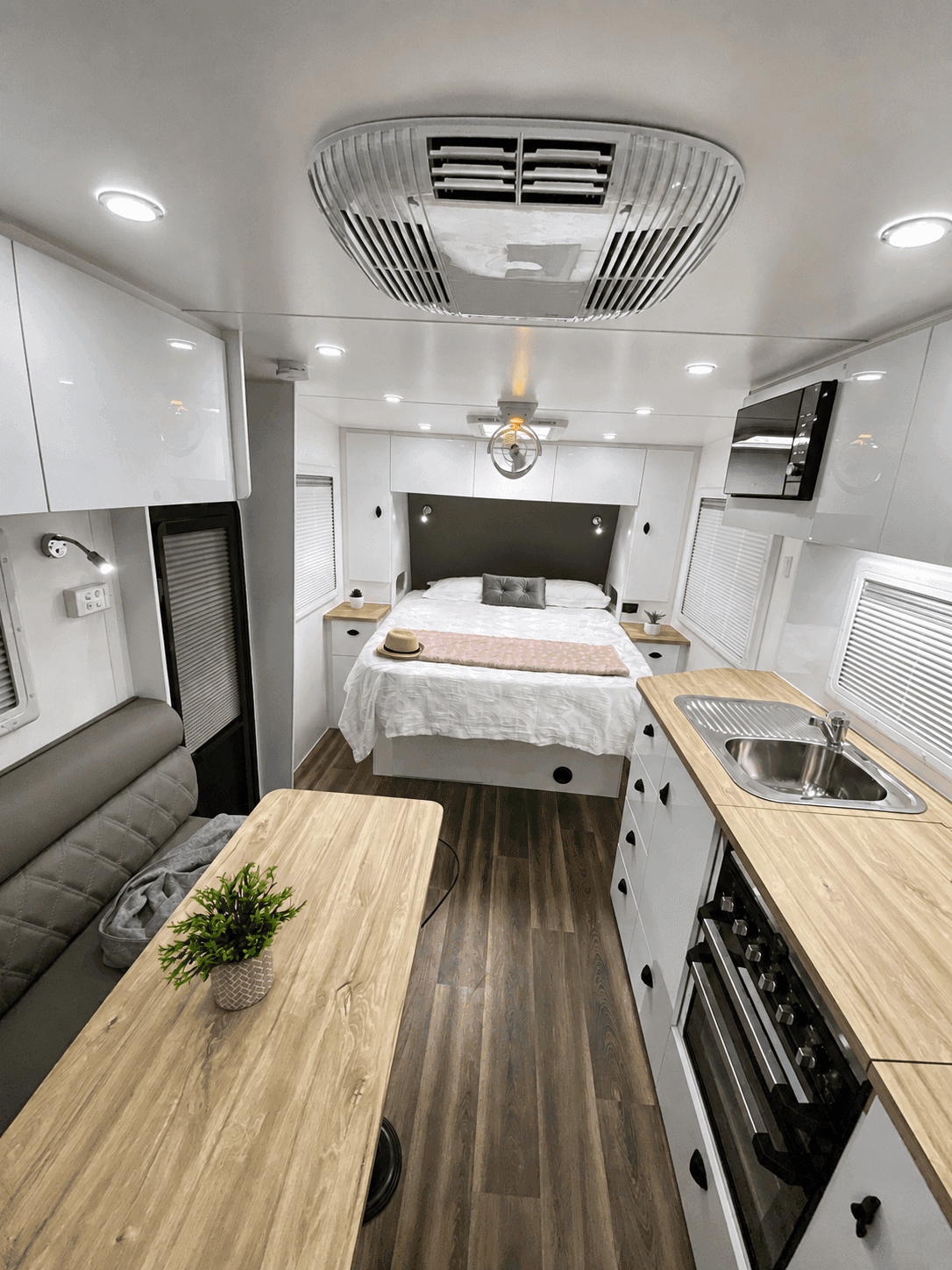

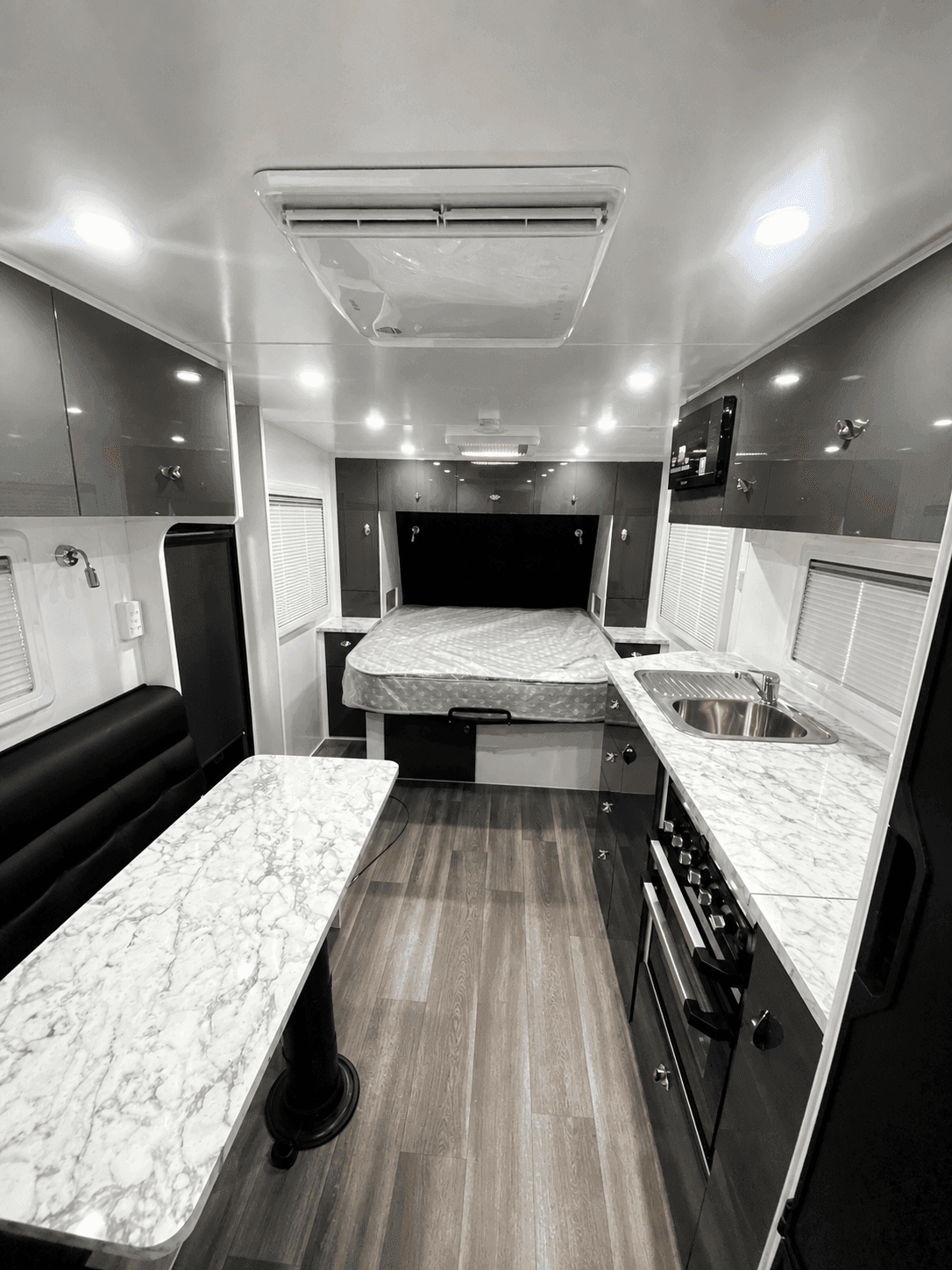

This family-friendly layout gives you a private front bed, central kitchen and lounge, and rear bunks so everyone has their own space. The separate shower and toilet at the back add extra comfort on the road, while the open central walkway keeps the van feeling roomy and easy to move around in.
Indicative floorplan — layouts and inclusions vary with your final spec.
- Queen island bed 6′2″, lift-up with strut assist

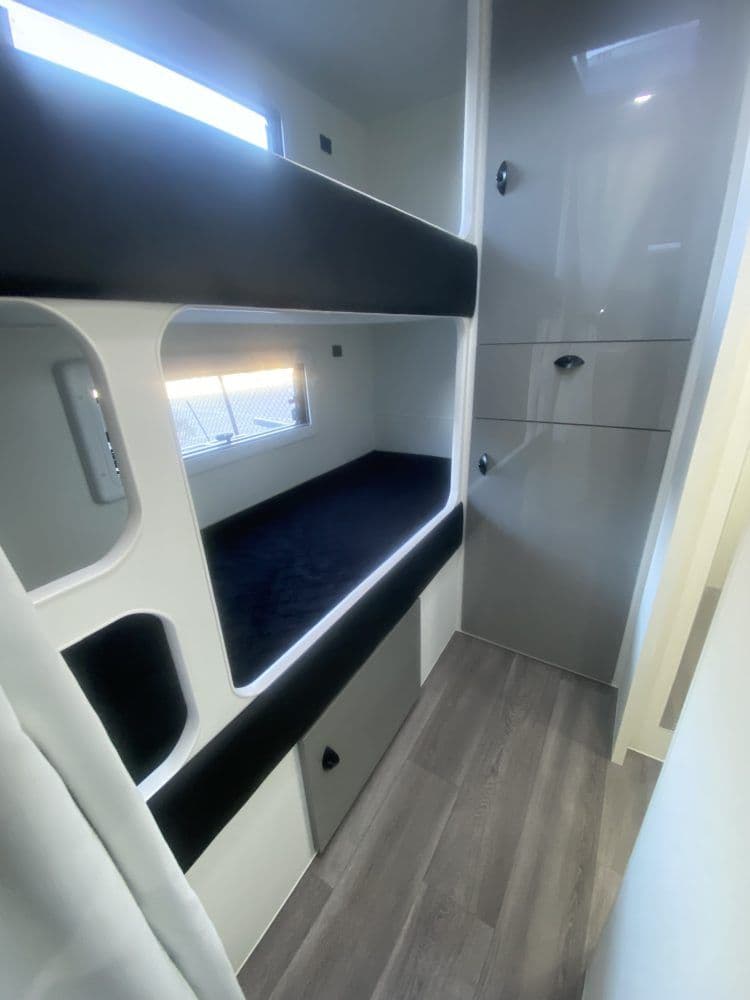

- 2 or 3 bunk option, 6′2″ mattresses

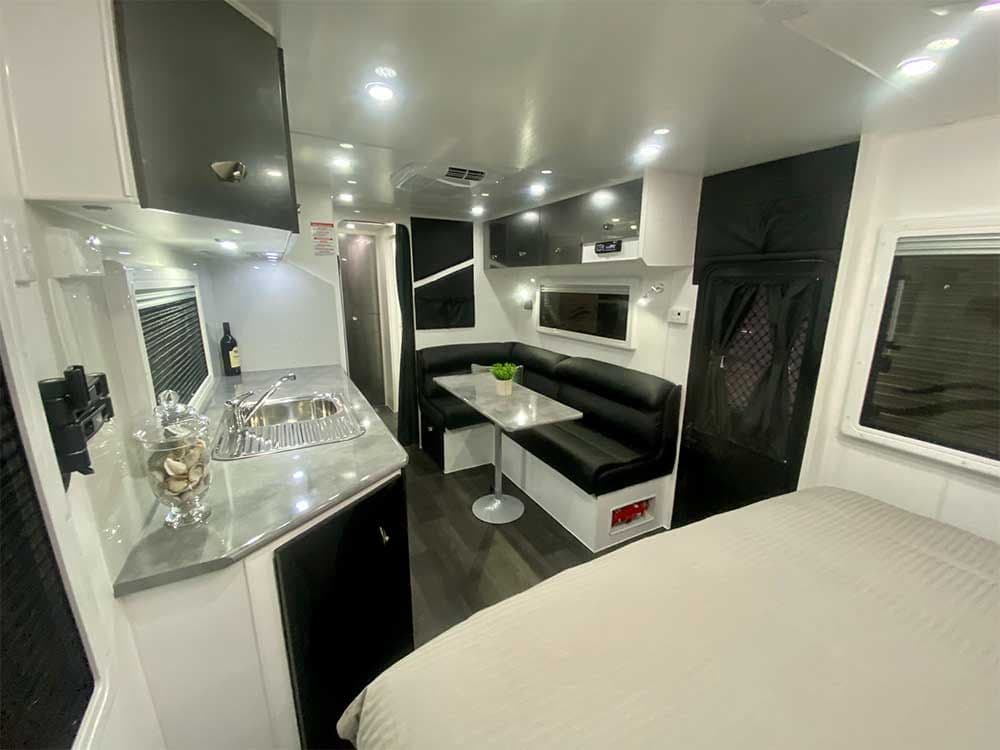

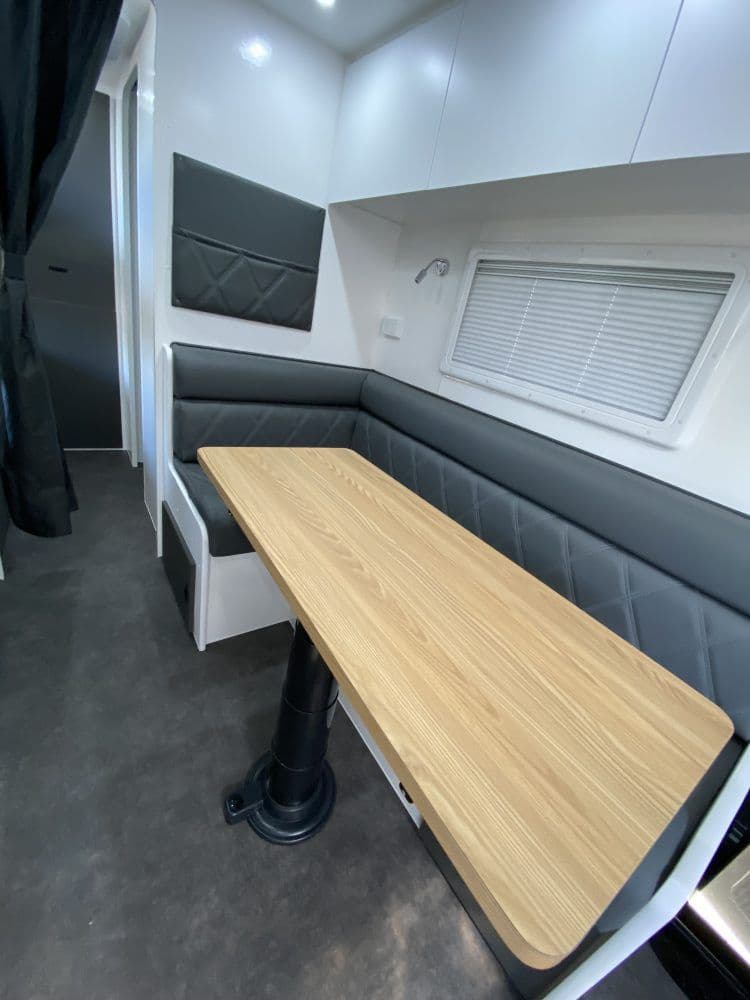

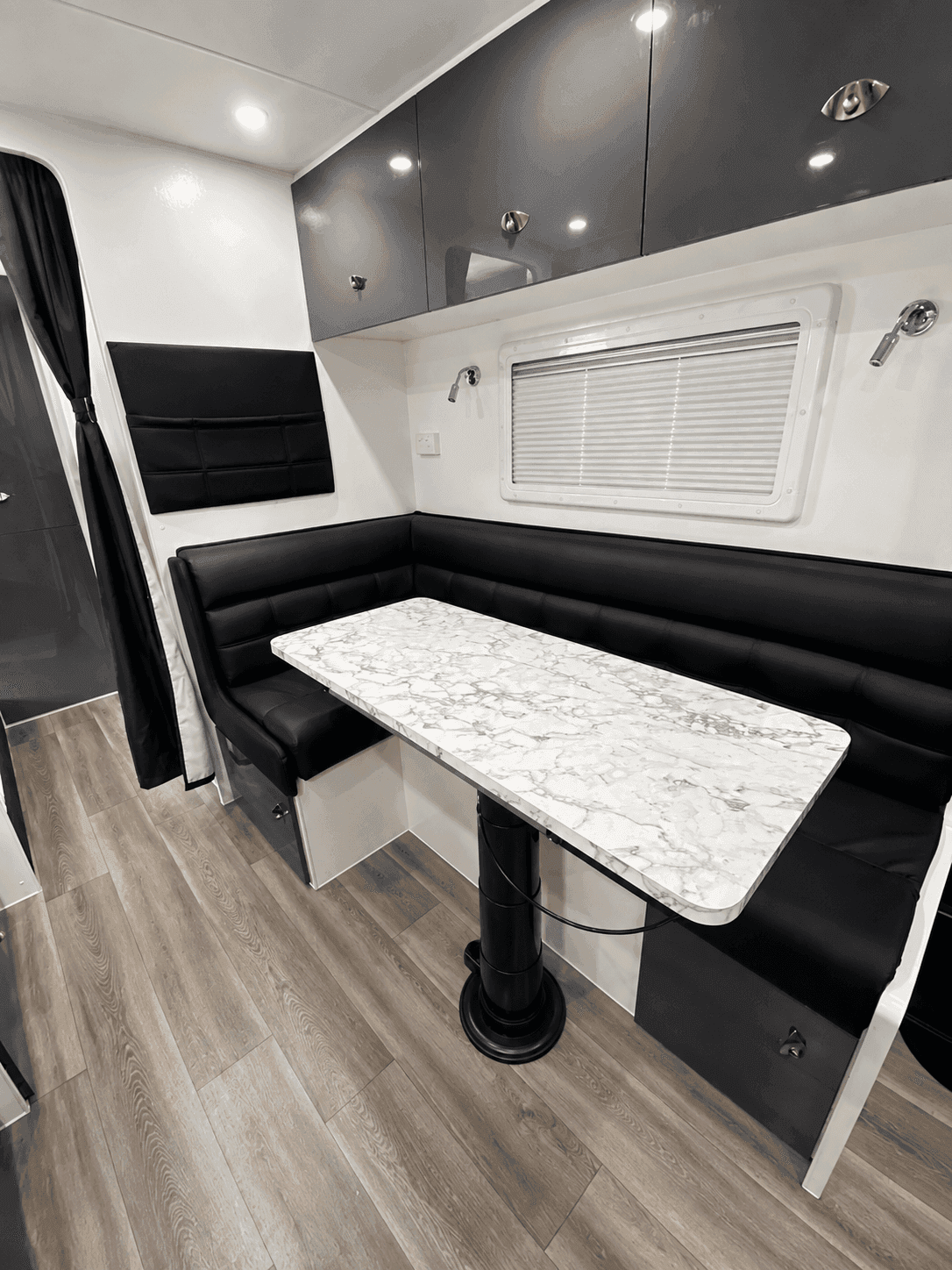

- L-shaped leather-look lounge — converts to an extra bed

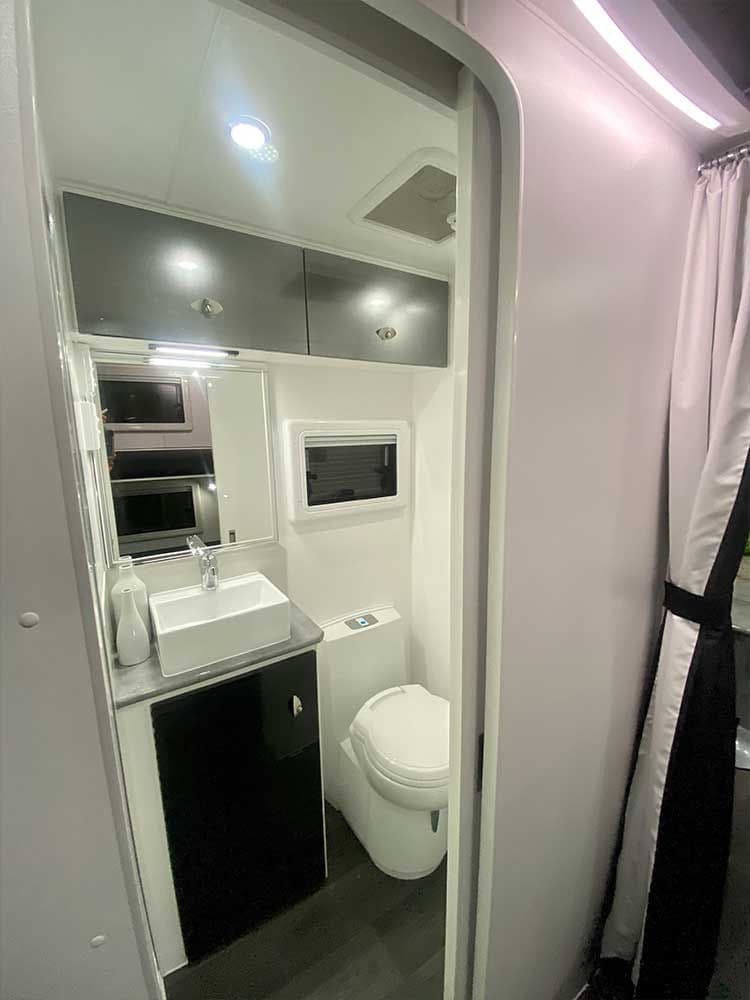

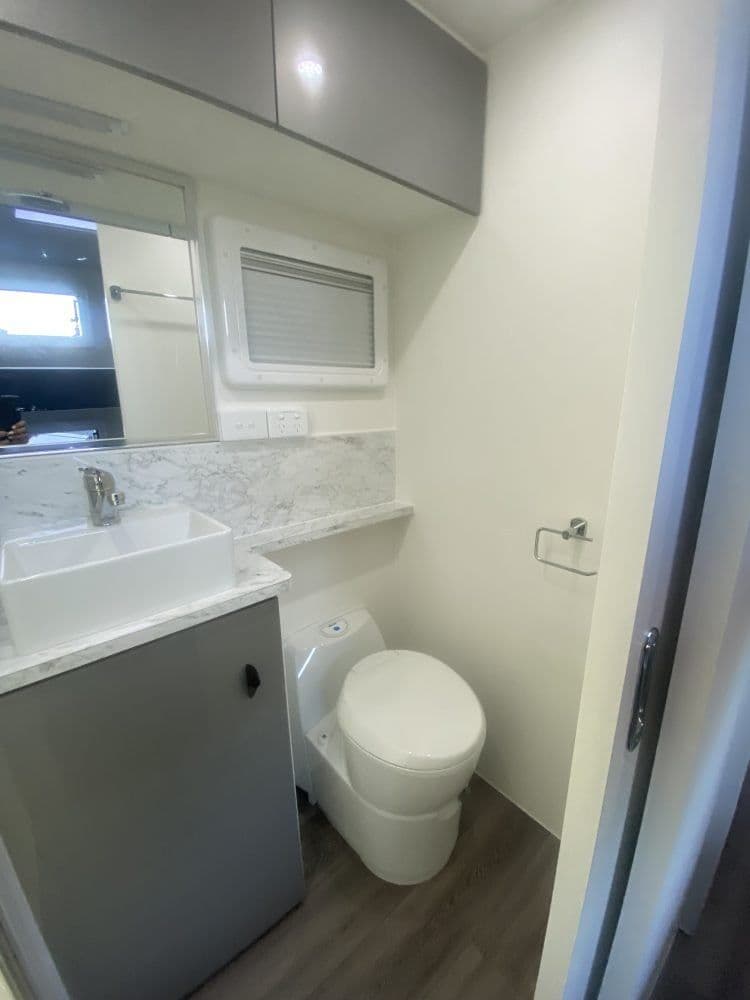

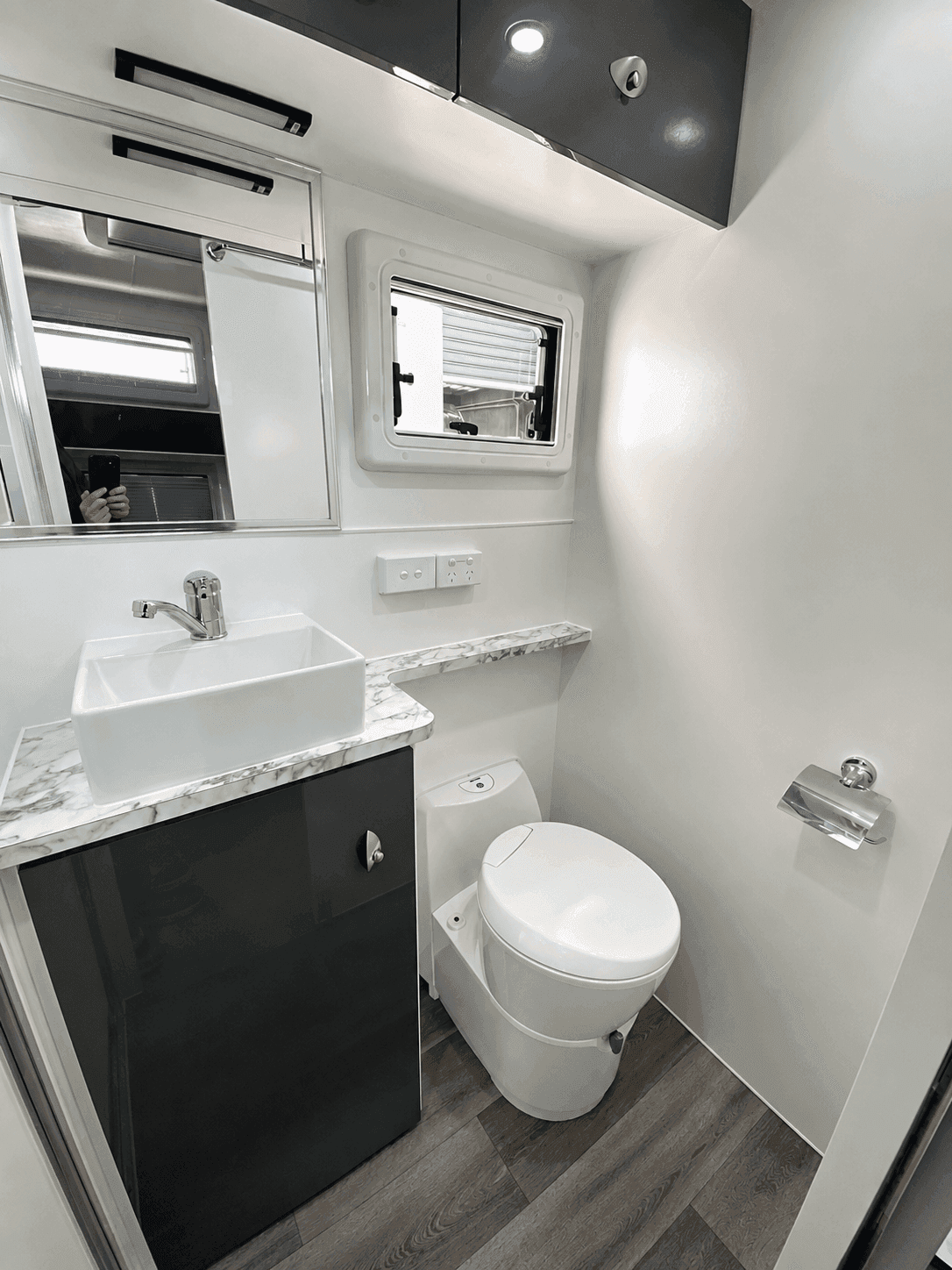

- Full ensuite: shower, cassette toilet, vanity + washing machine
/03/Weights
The numbers.
- 2450kg
- Tare
- 3350kg
- ATM
- 900kg
- Payload
- 160kg
- Ball

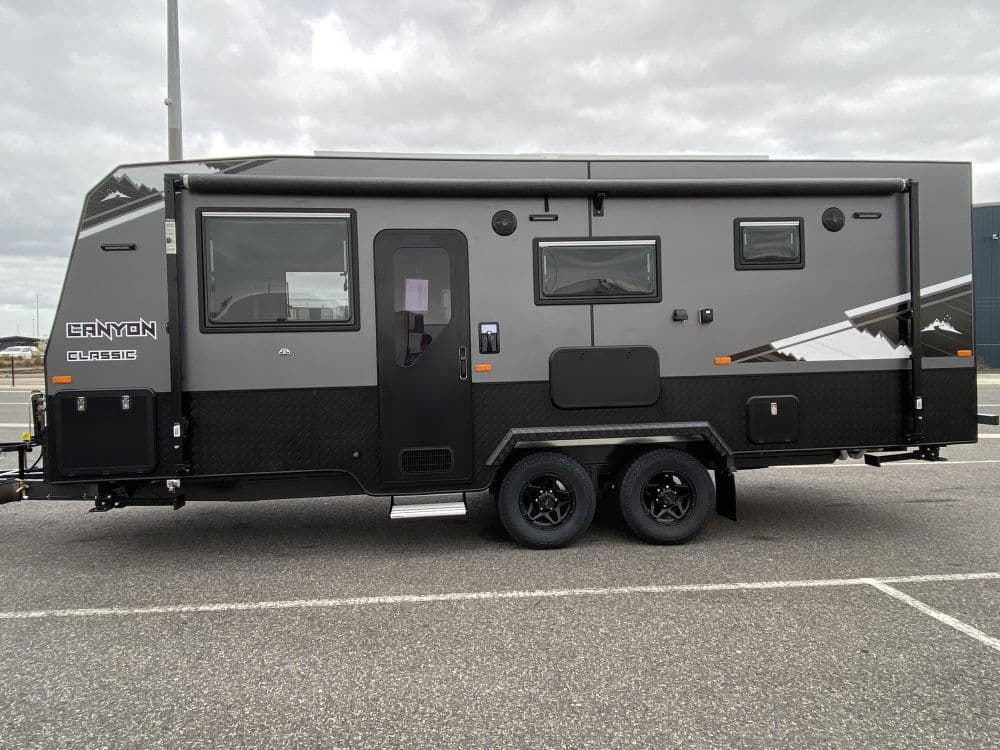

All weights approximate — 21′6″ overall, twin axle Al-Ko Roller Rocker, semi or fully off-road suspension available. Weights vary with your final spec; we confirm everything before build.
Know about it more.
Download the full Classic brochure for detailed specs, inclusions and floorplans — handy to have on hand while you plan your build.
/04/Inclusions
Standard, not optional.
What ships on every Classic before you’ve customised a thing. Every list is a starting point — add, swap or trim with us at the factory.

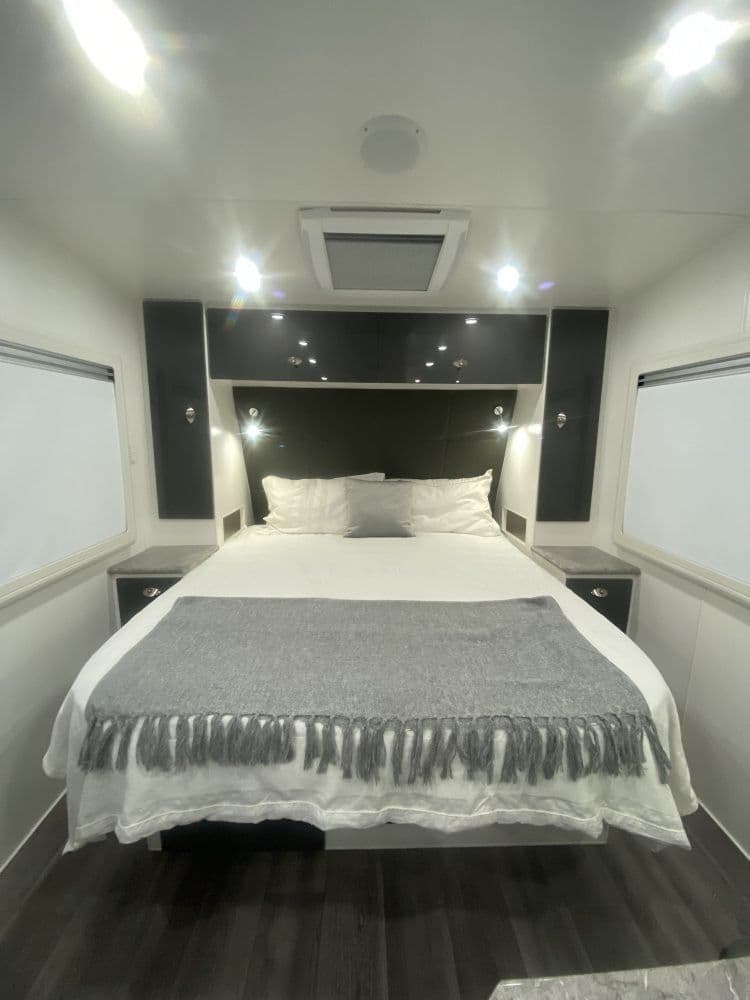

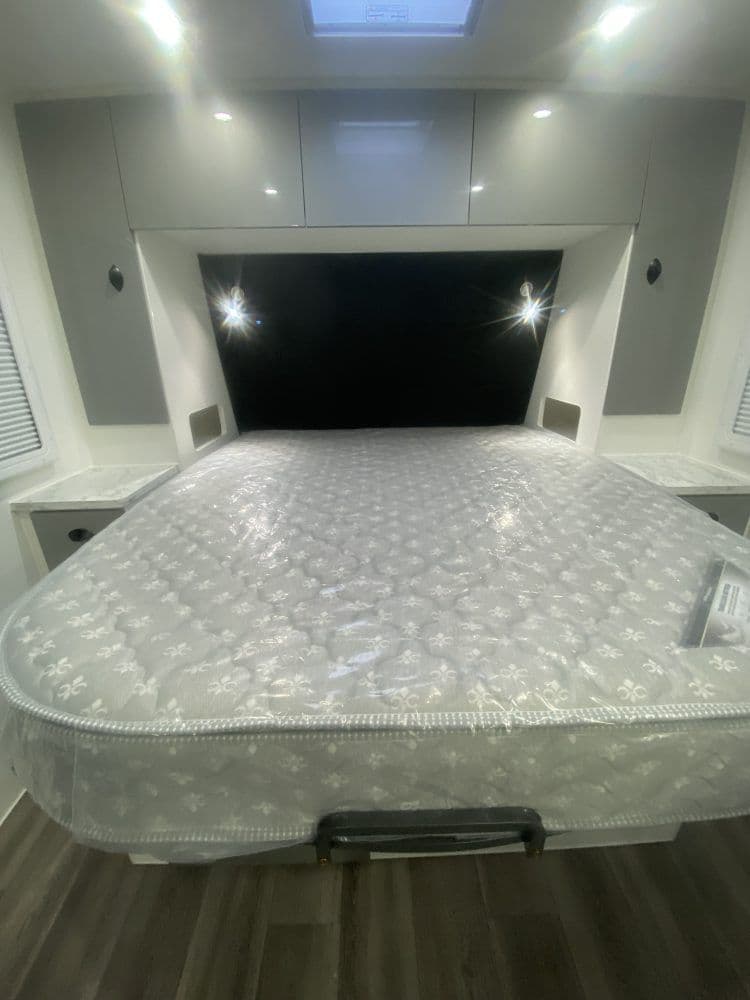

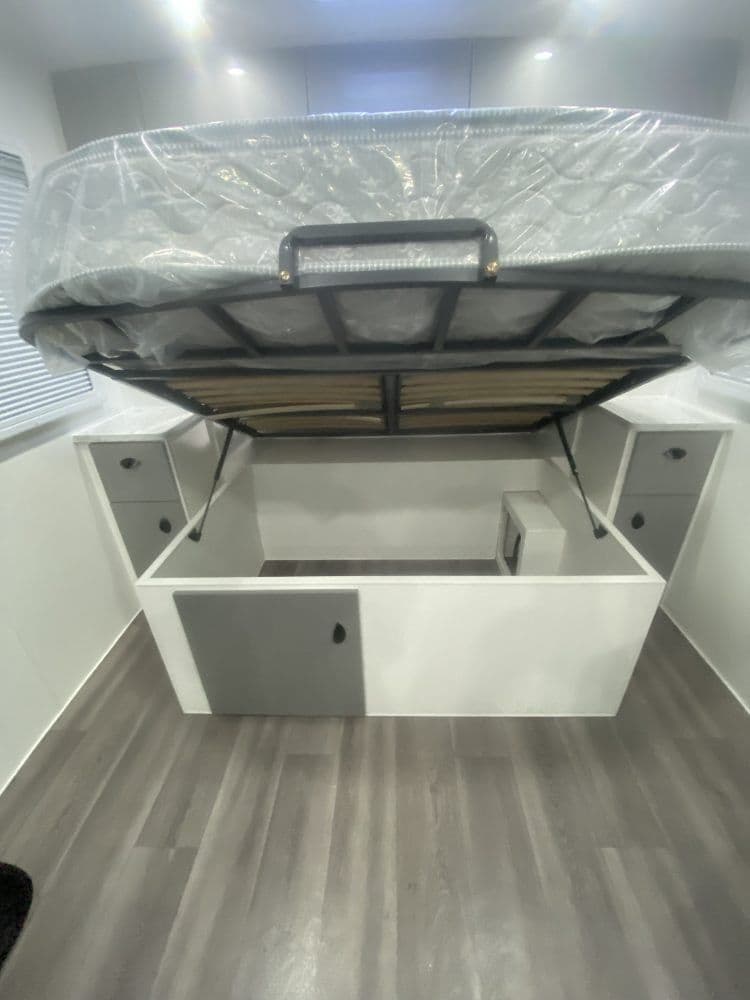

- Queen island bed 6′2″ — lift-up with strut assist, storage underneath
- Inner-spring pillow-top mattress
- Niches both sides of queen bed
- Robes and bedside tables with storage

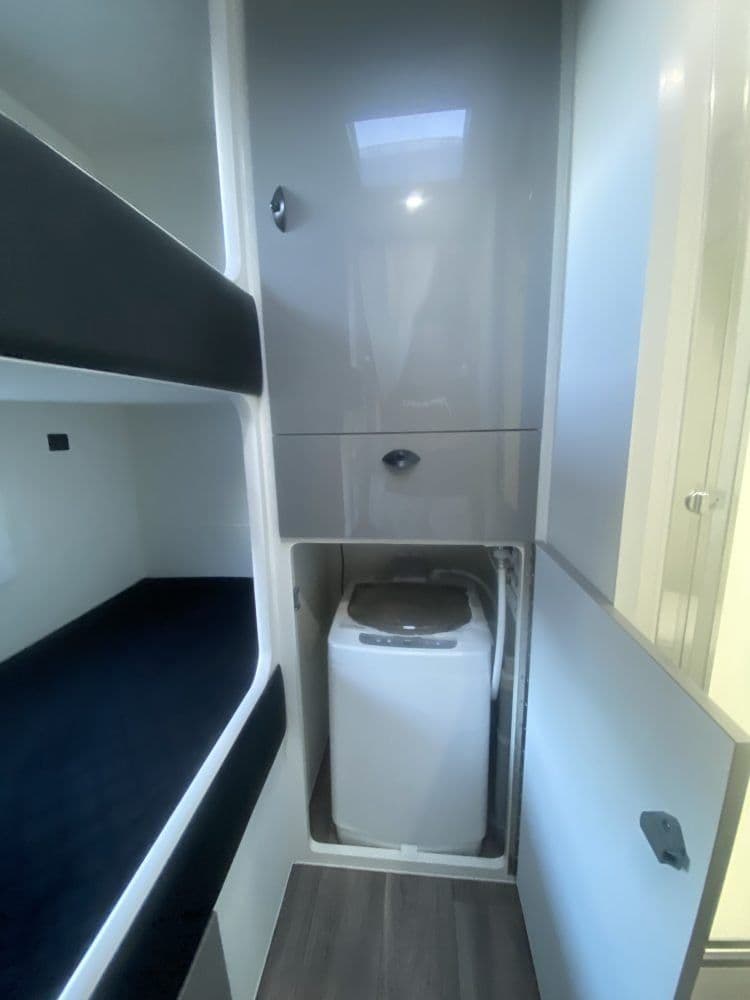

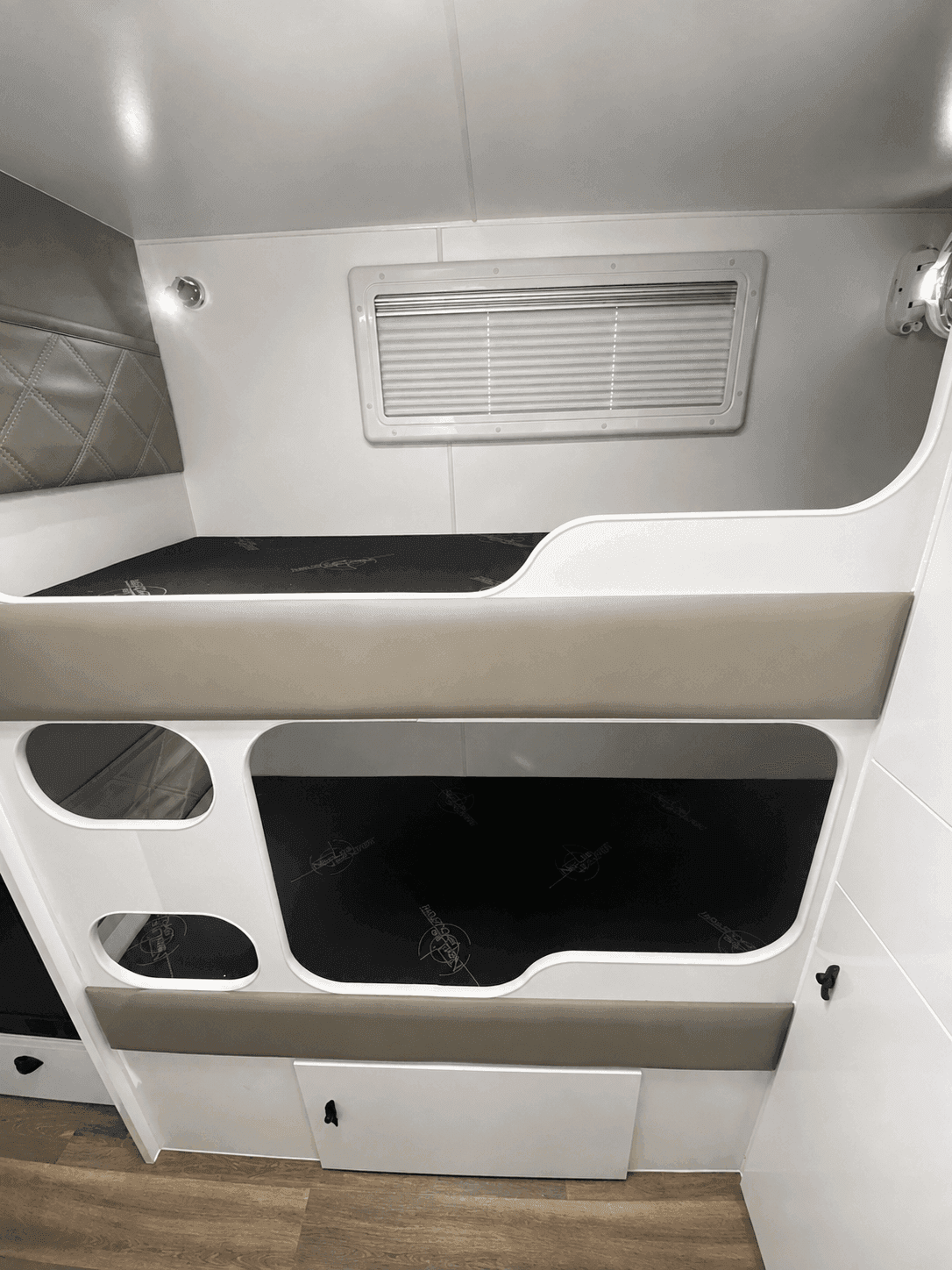

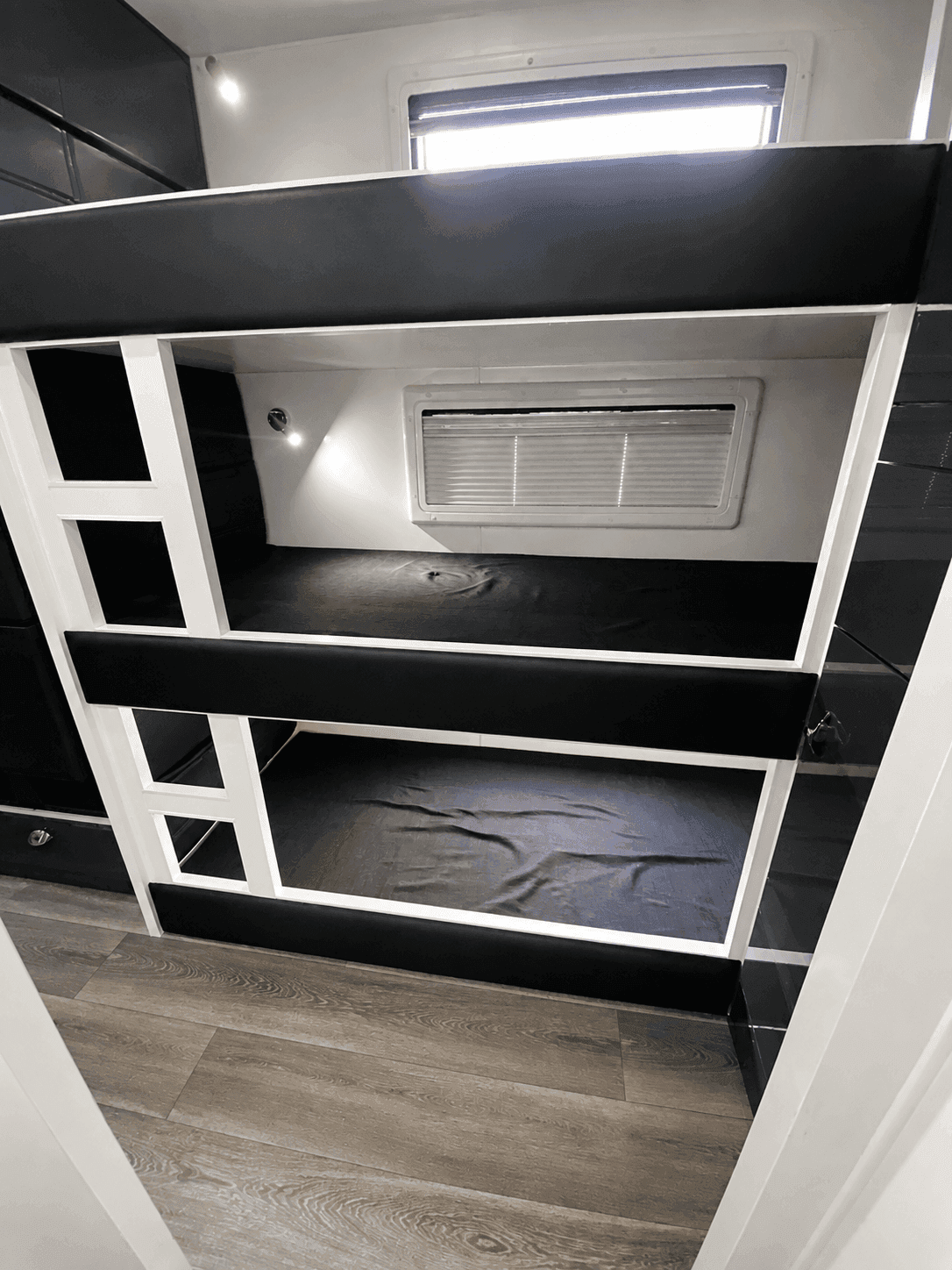

- 2 bunks or 3-bunk option, 6′2″ mattresses

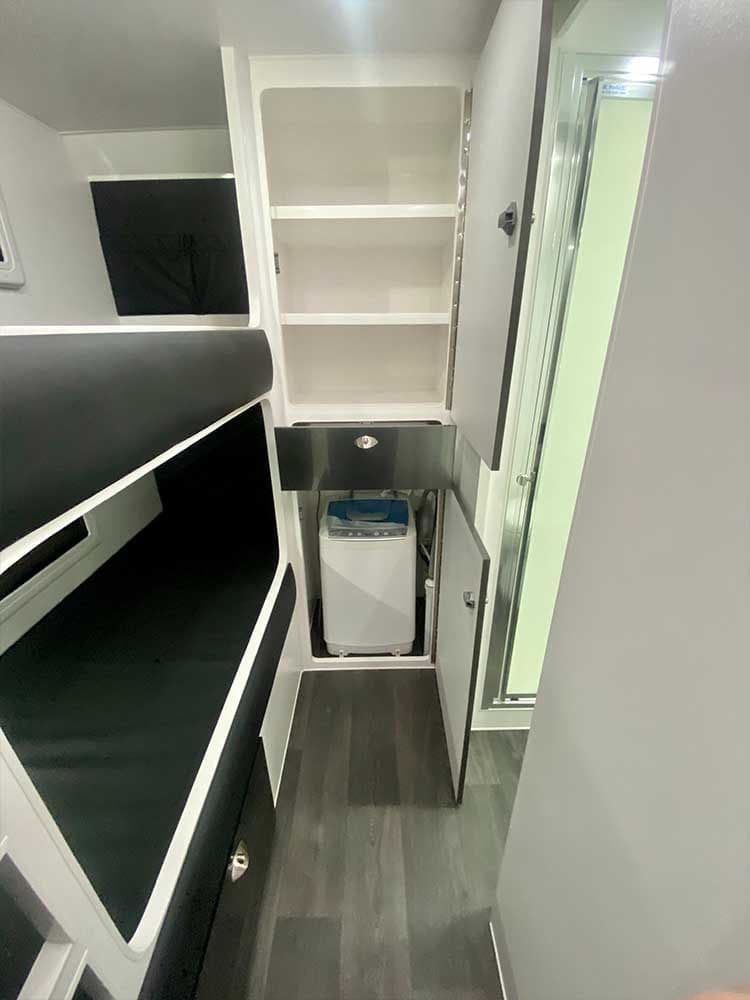

- 2-bunk option with storage underneath — internal and external hatch
- 2 roof-mounted skylight hatches

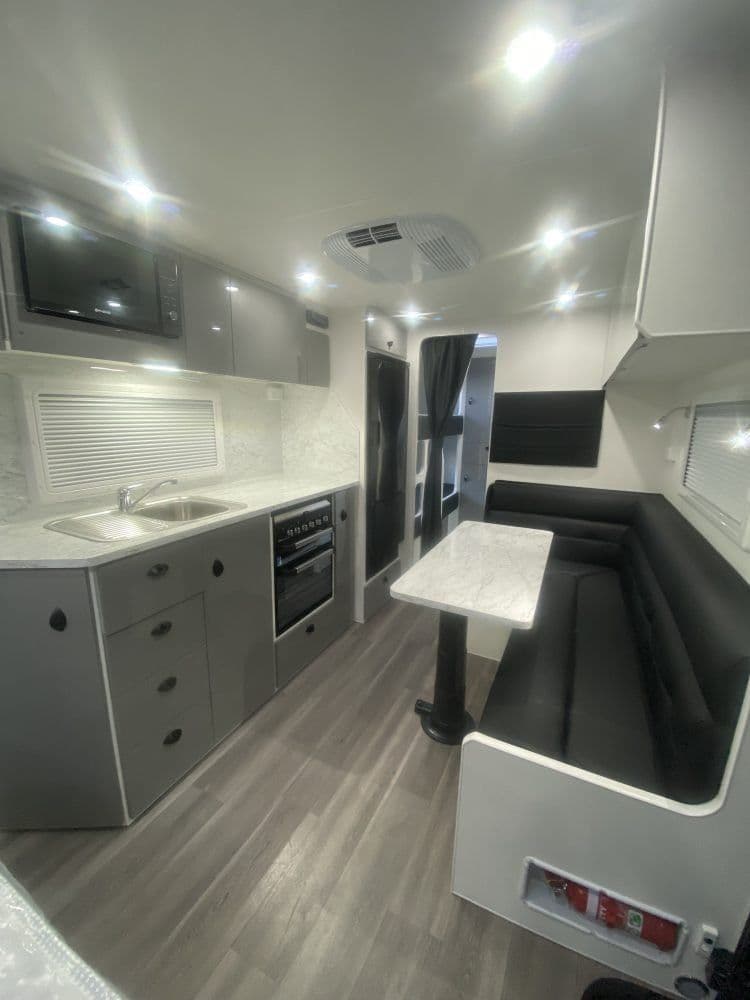

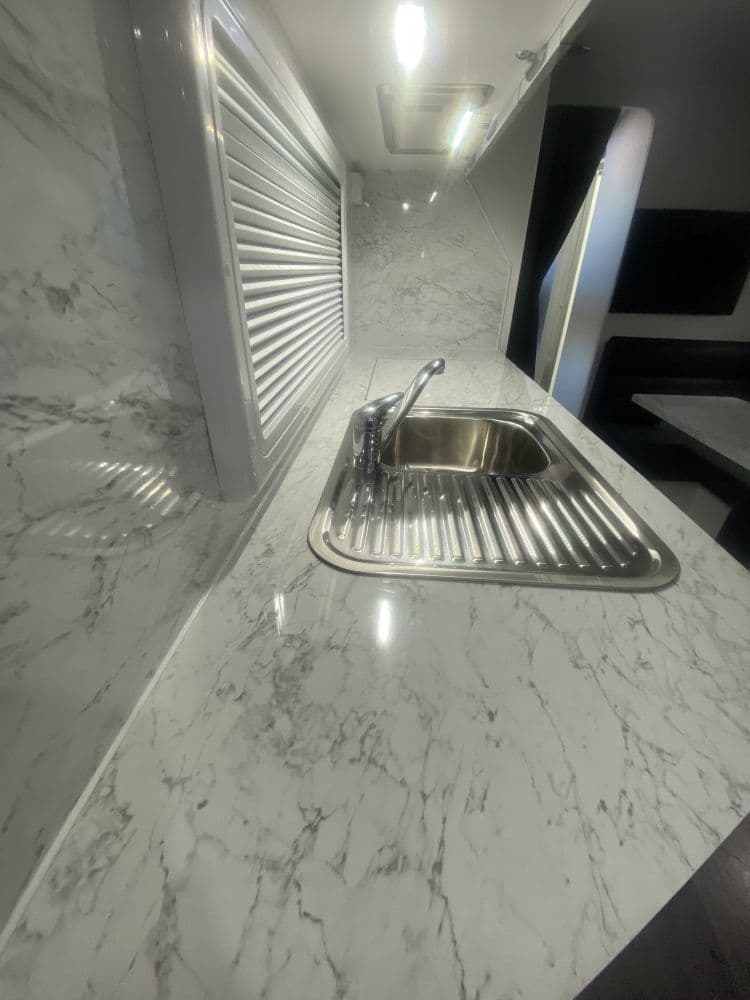

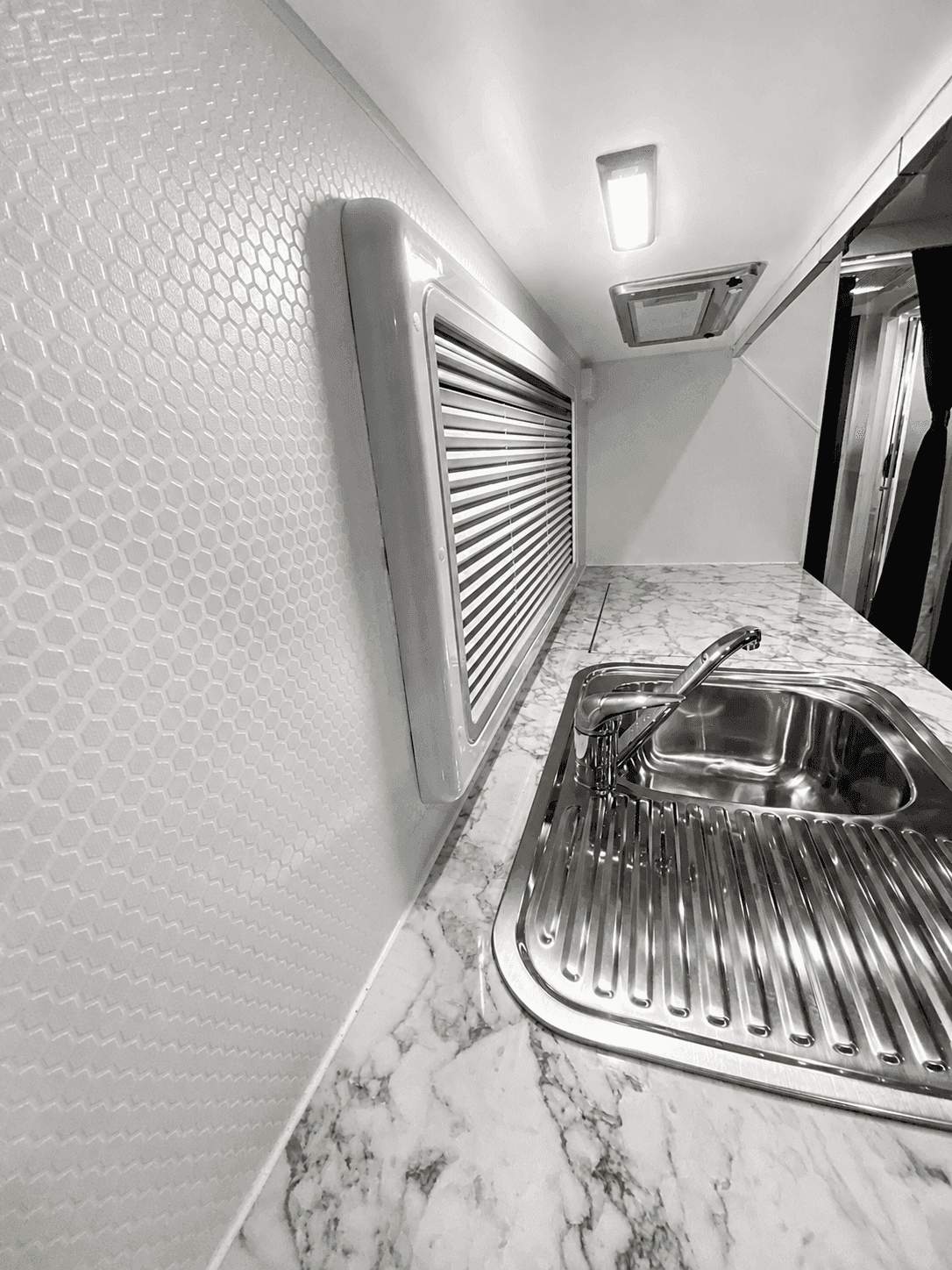

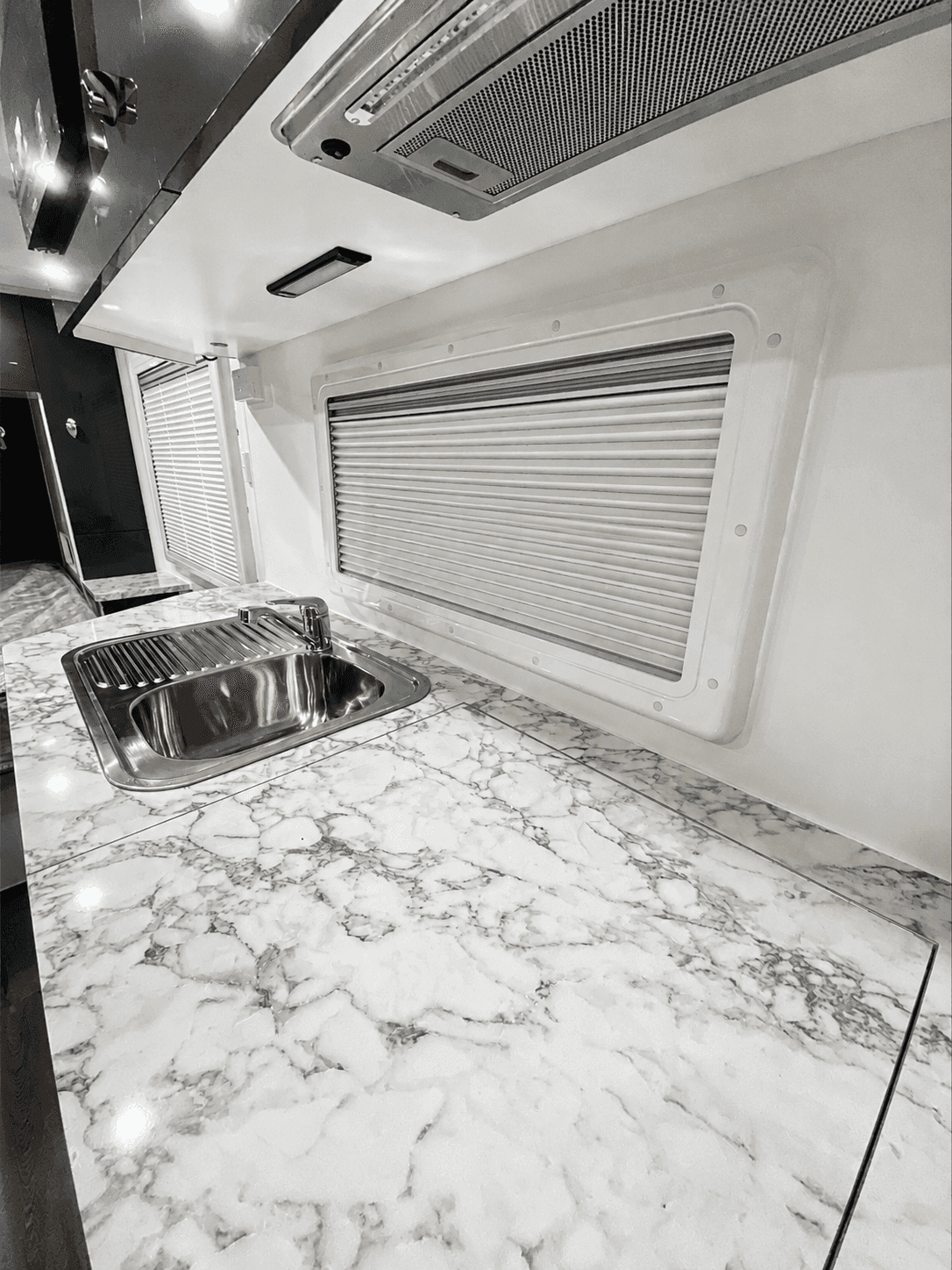

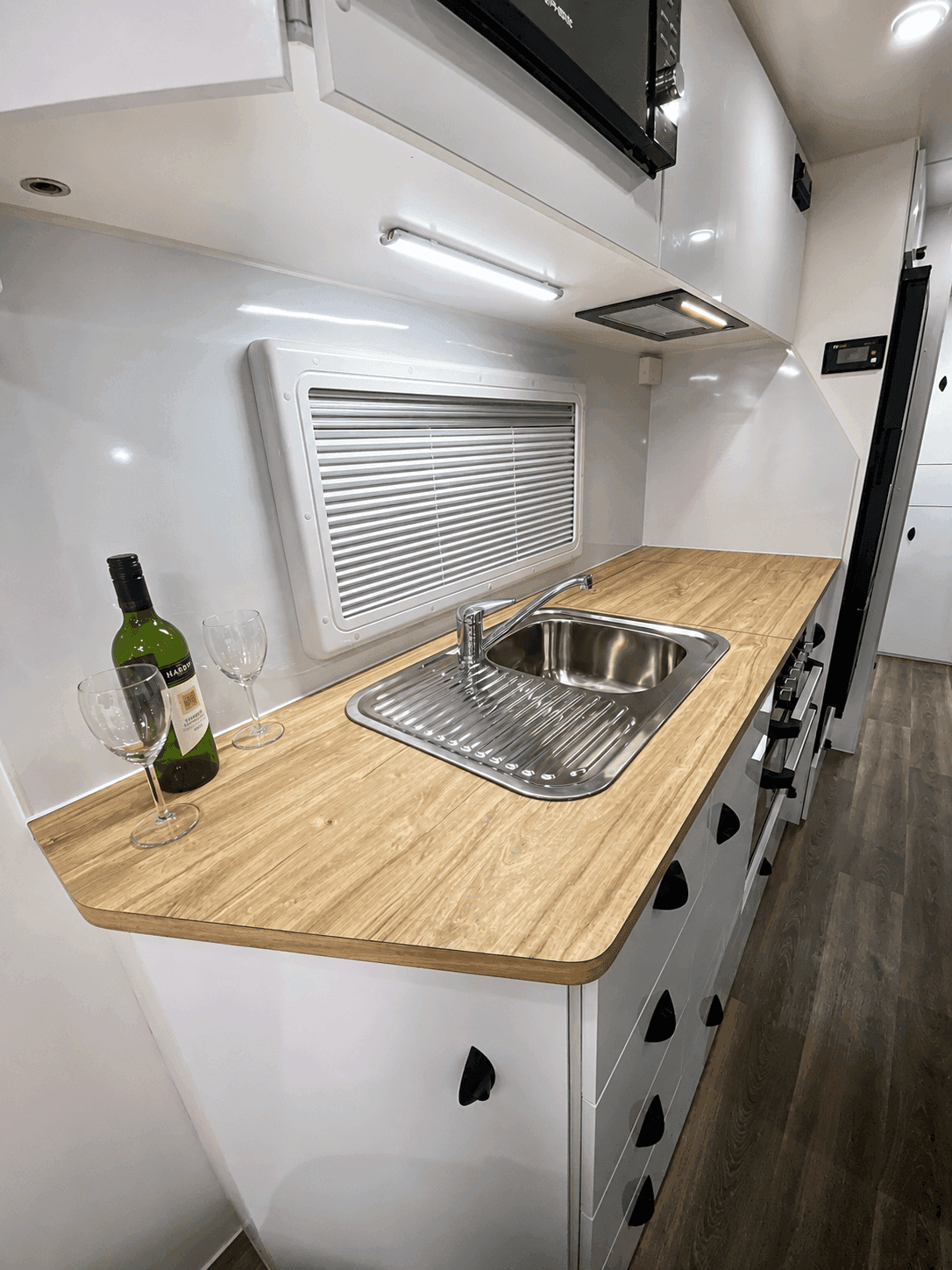

- Stainless steel sink, full-height splashback

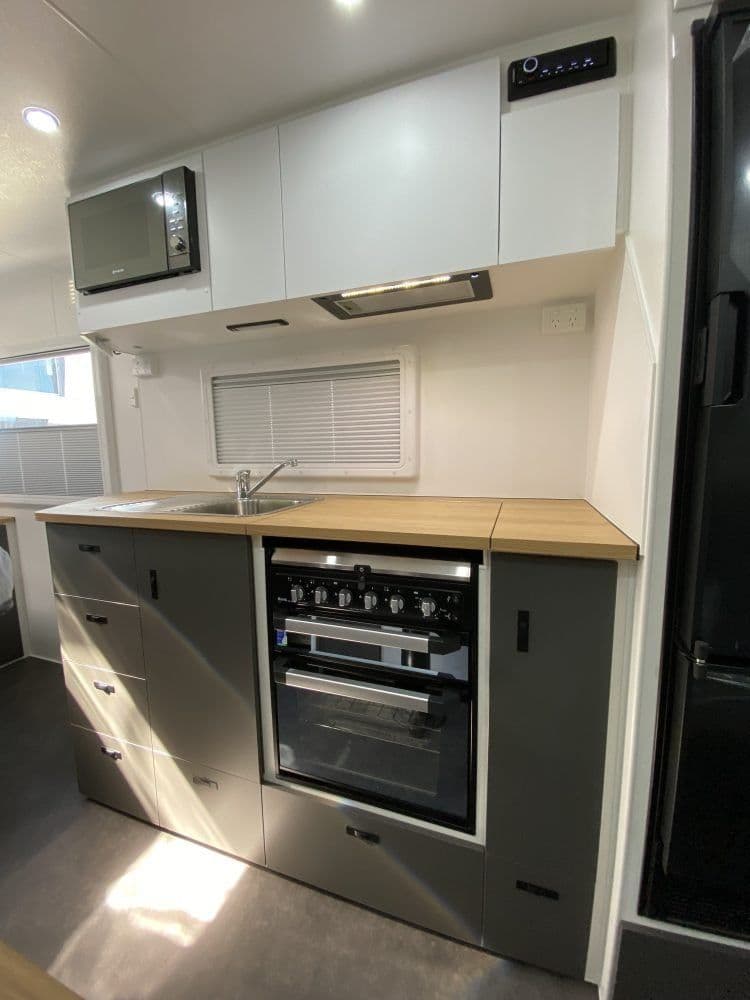

- Kitchen laminate benchtops — stove recessed under hinged bench top
- Cupboard doors in a wide range of colours, piano hinges throughout
- Overhead cupboards with piano hinges and double struts
- Latched handles in silver; drawers on rollers and runners

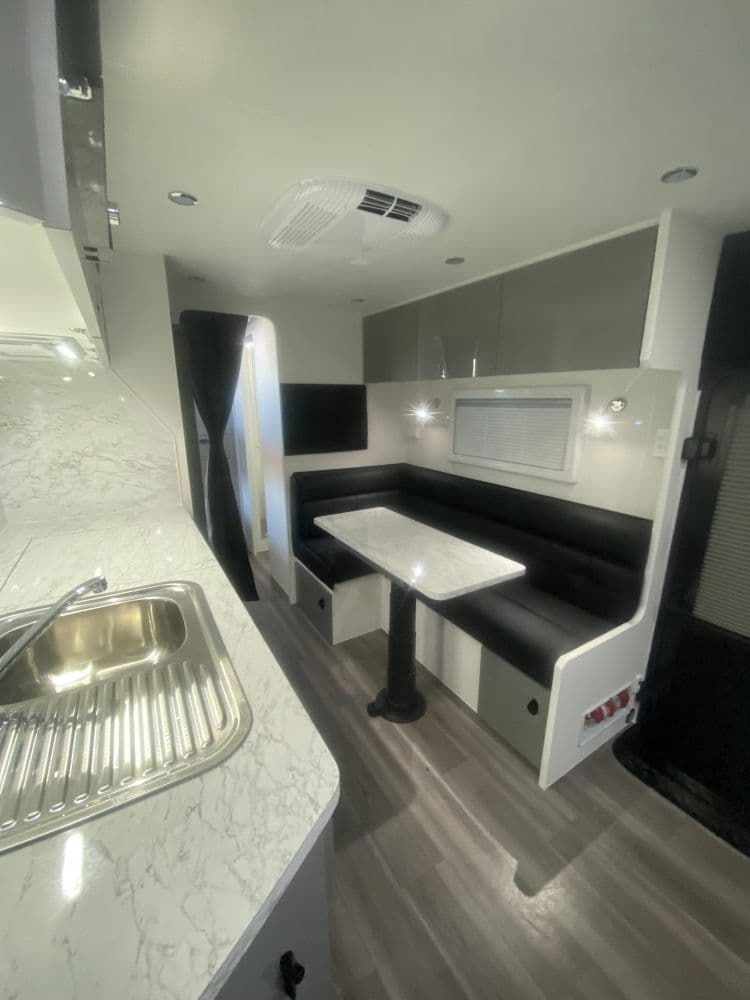

- L-shaped leather-look lounge — option to convert to extra bed
- Slide-out pantry
- Magazine holder
- One-piece floor

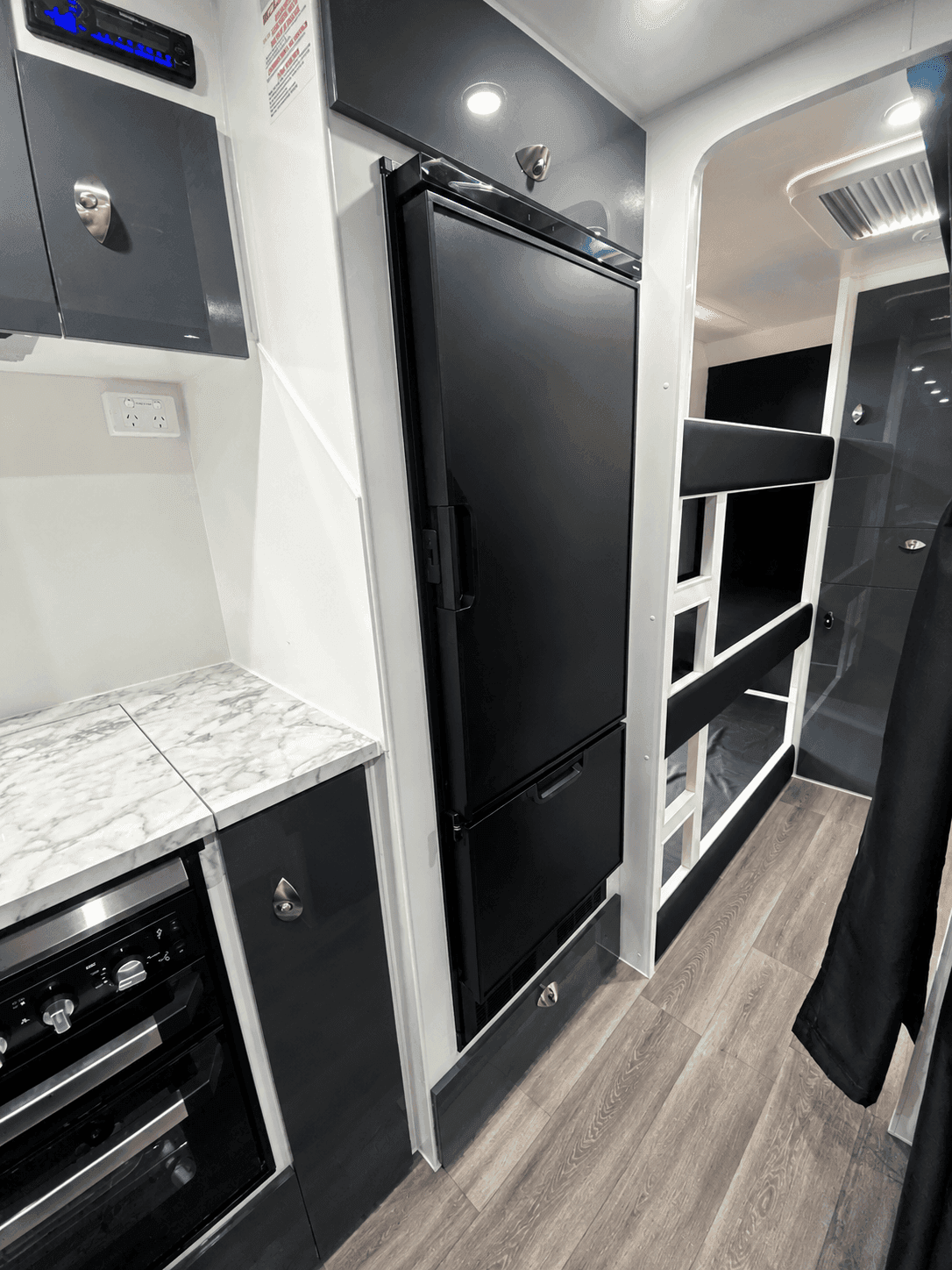

- 175 L Thetford 3-way fridge/freezer

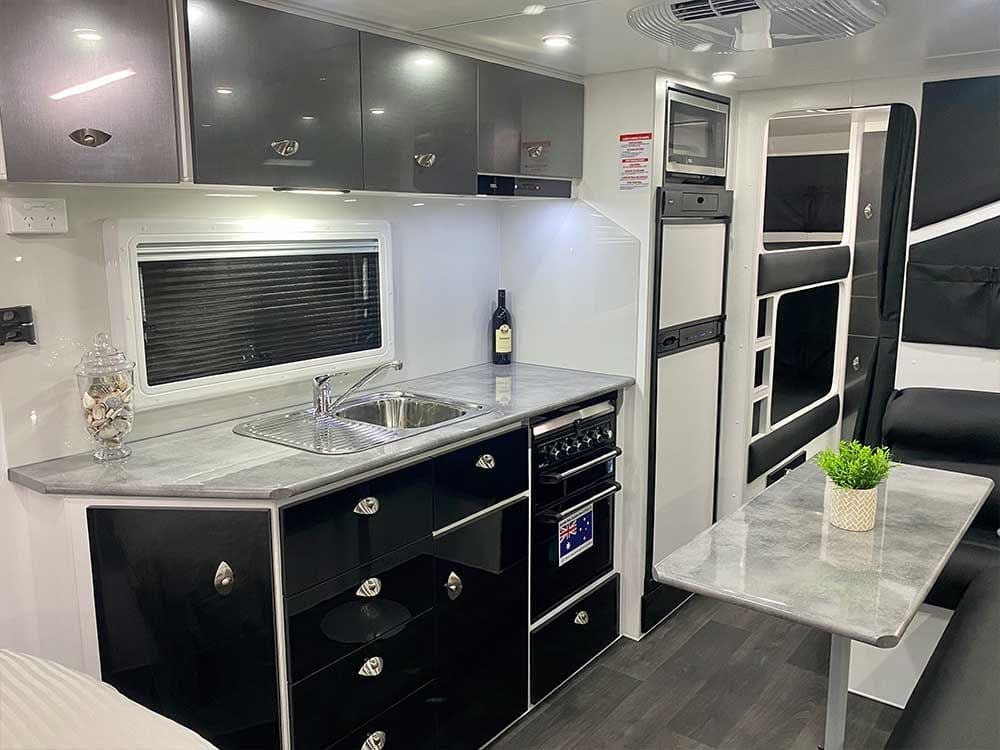

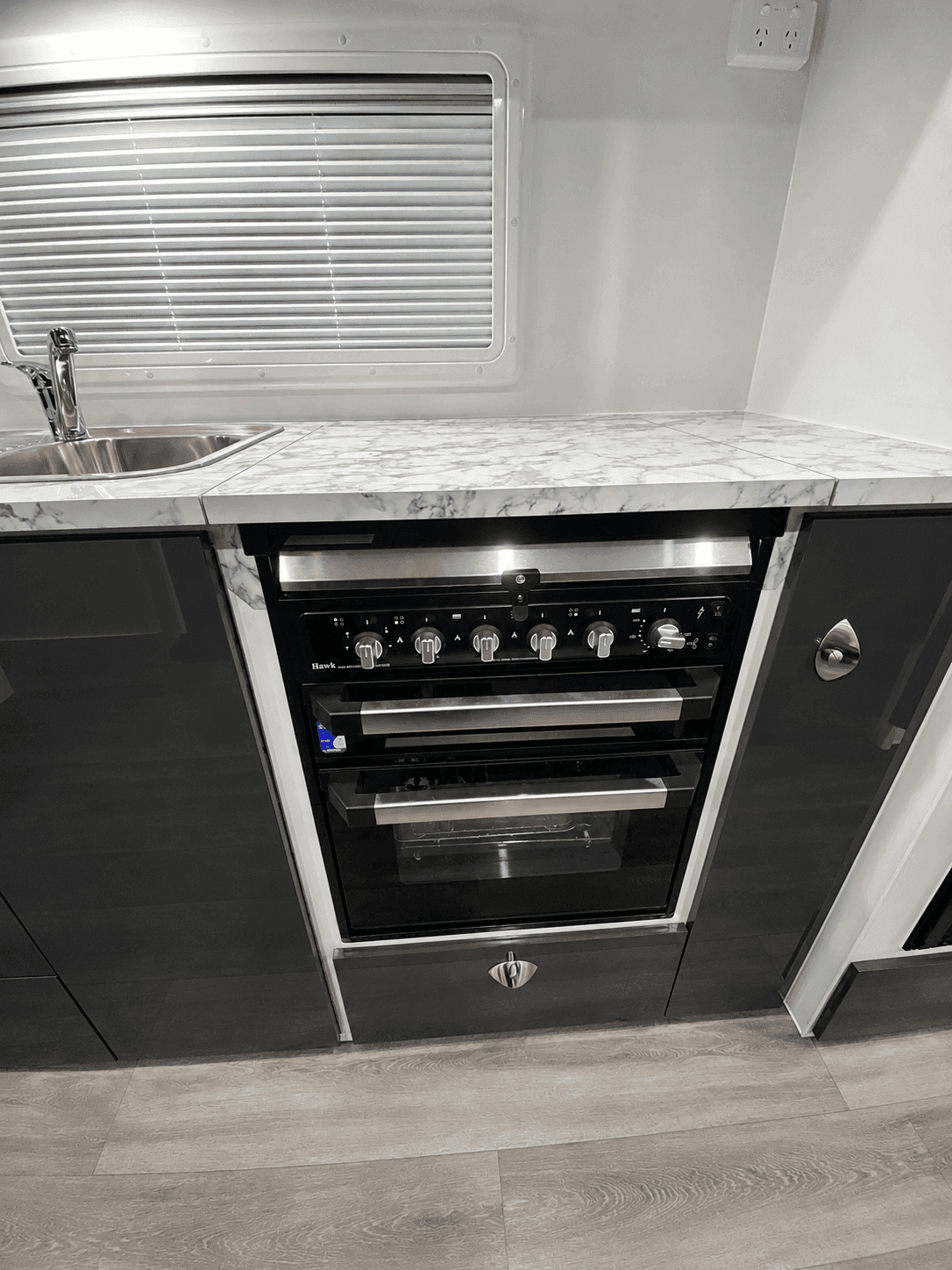

- 3 gas + 1 electric burner stove top with oven & griller
- Belaire 3500 reverse-cycle air conditioner
- Flush-mounted rangehood, microwave oven
- Washing machine
- 2-way gas/electric stainless Swift hot water system
- 24″ 12 V HD LED TV, stereo head unit
- 2 internal + 2 marine-grade external speakers

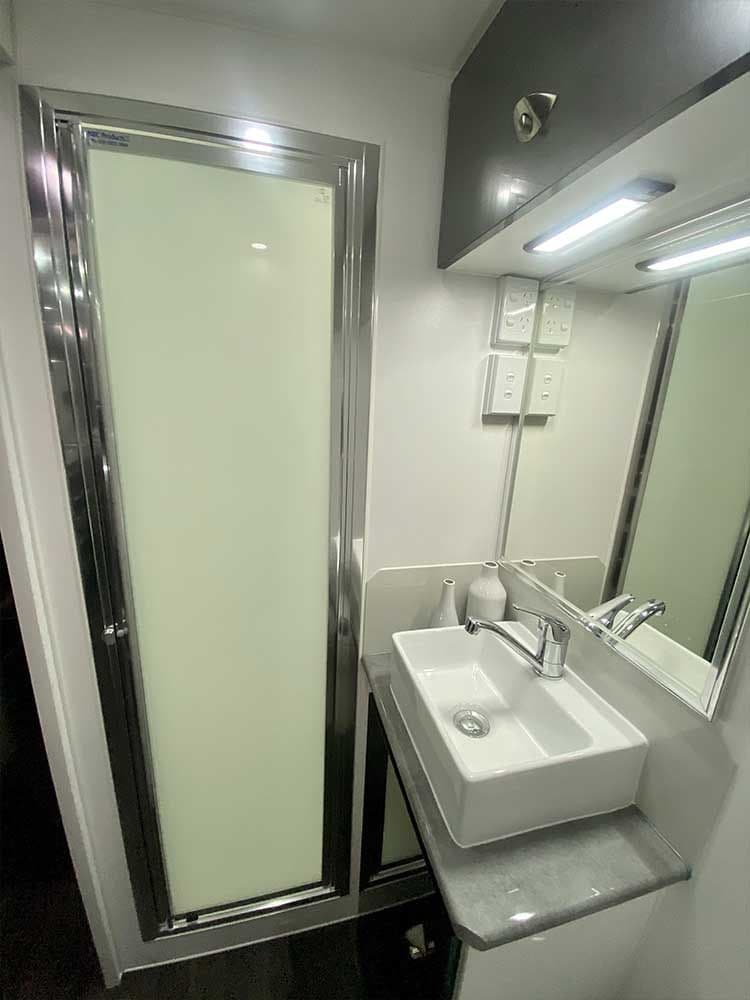

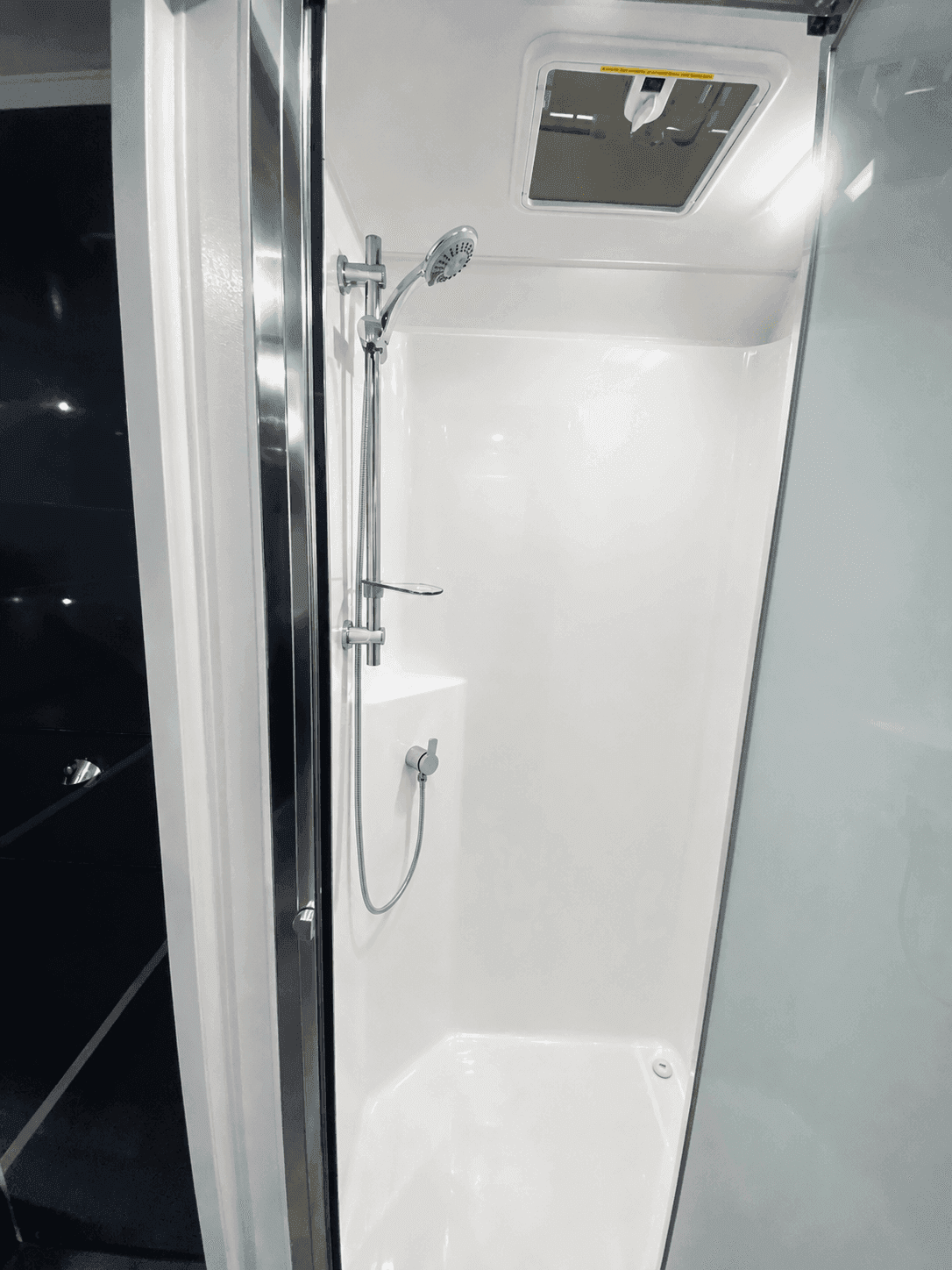

- Separate one-piece shower with flick mixer & adjustable head

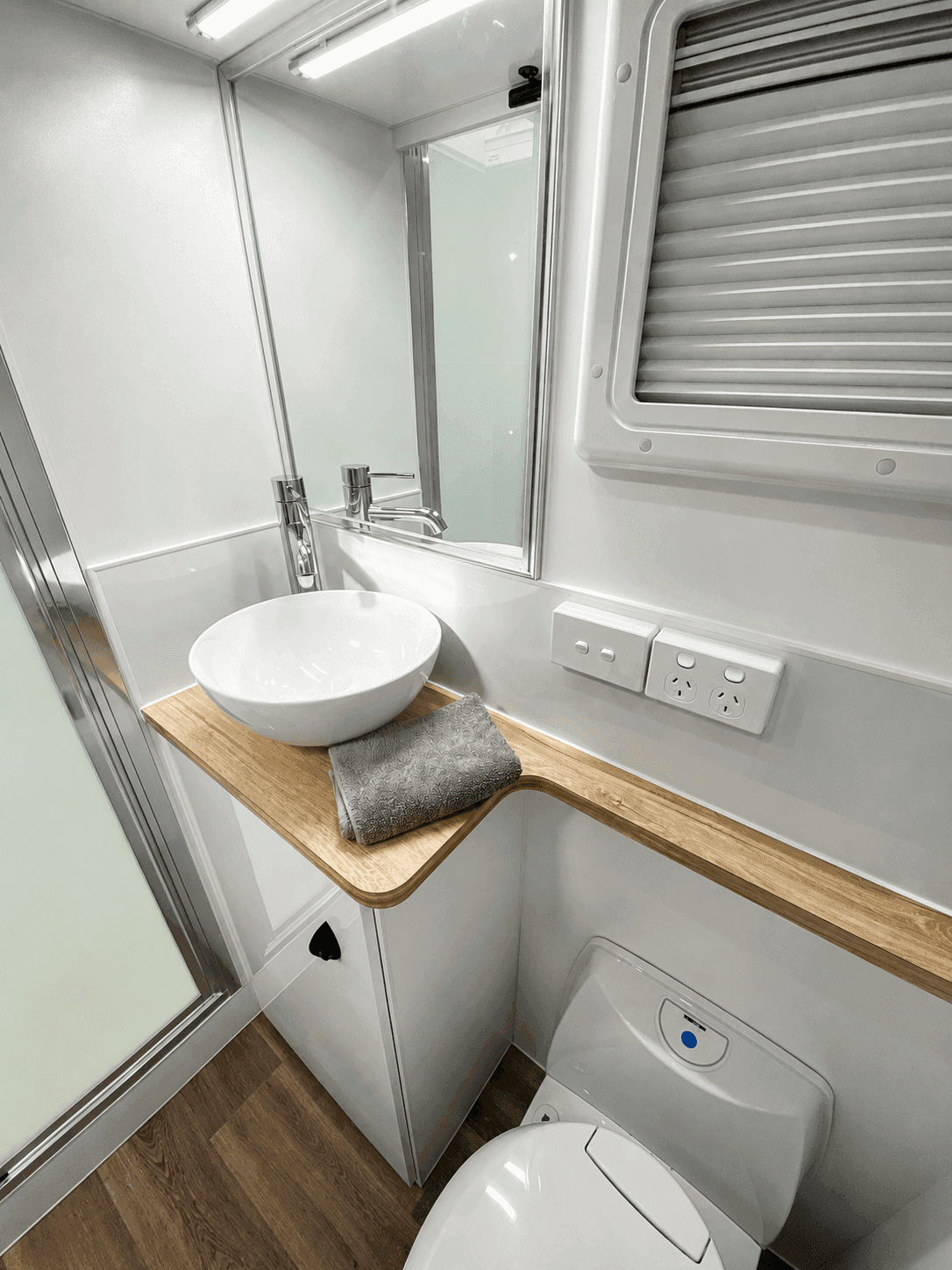

- Ceramic basin with flick mixer
- Thetford cassette toilet
- Vanity with storage cupboard
- 12 V fan and hatch in shower
- BMPRO Plus 35 battery management system
- 2 × 100 Ah deep-cycle batteries + battery charger
- 2 × 230 W solar panels with regulator
- LED downlights throughout; reading lights in bedroom & living
- LED lighting: door grab handle, front & rear of van, tunnel boot, 2 × awning
- 240 V double power points throughout (including niches); 12 V / USB points
- External 240 V power point + external 12 V socket
- Water tank gauges, smoke alarm
- LED tail lights, side markers & clearance lights
- 12 Pin Flat
- TV points internal and external
- Reverse camera with display monitor
- 2 × 95 L fresh-water tanks + 95 L grey-water tank
- 2 × 9 kg gas bottles, external gas bayonet
- Mains pressure limiter on inlet, lockable water fillers
- 12 V water pump, tap on A-frame

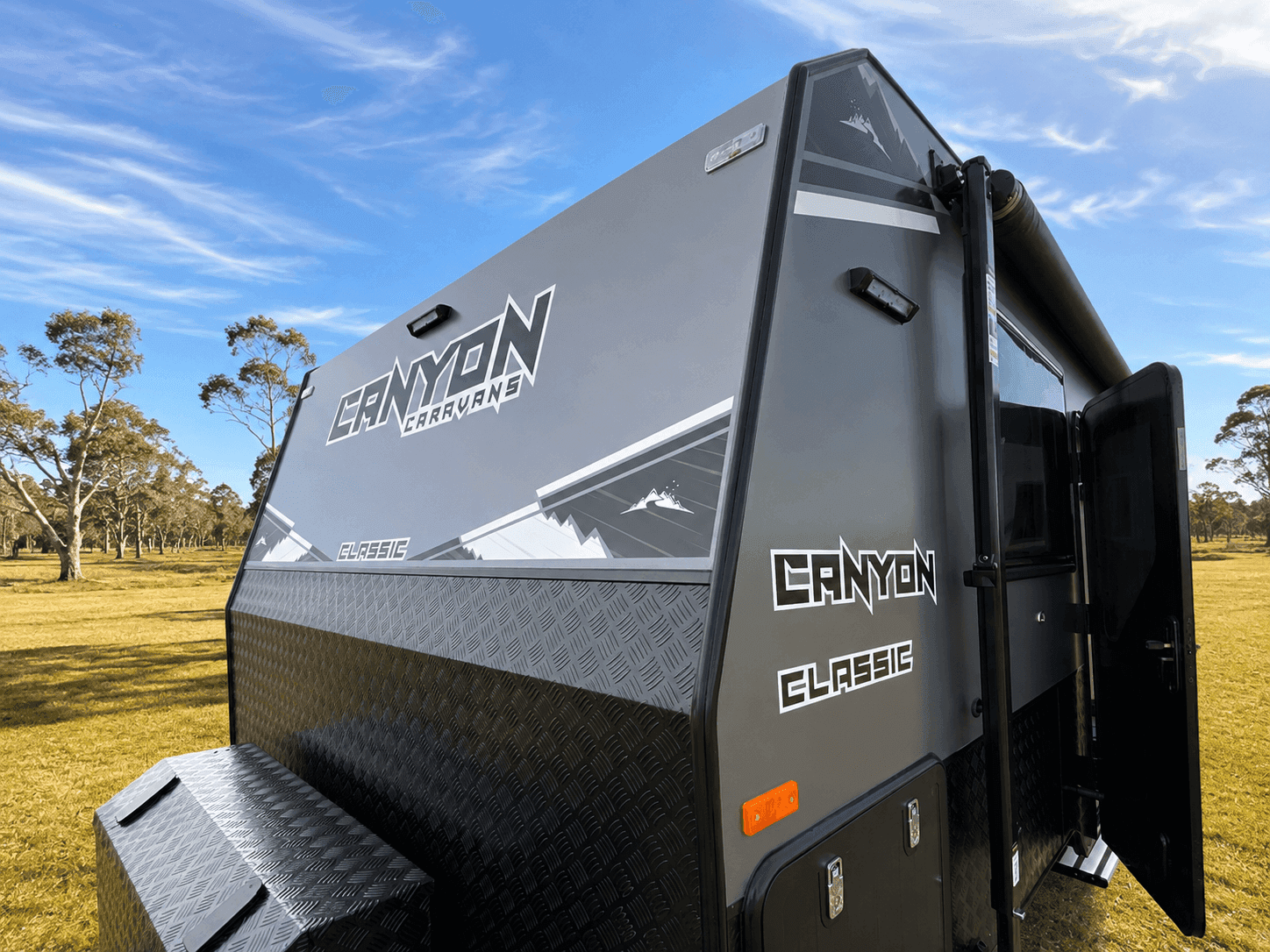

- Composite cladding
- Entry door & fly screen

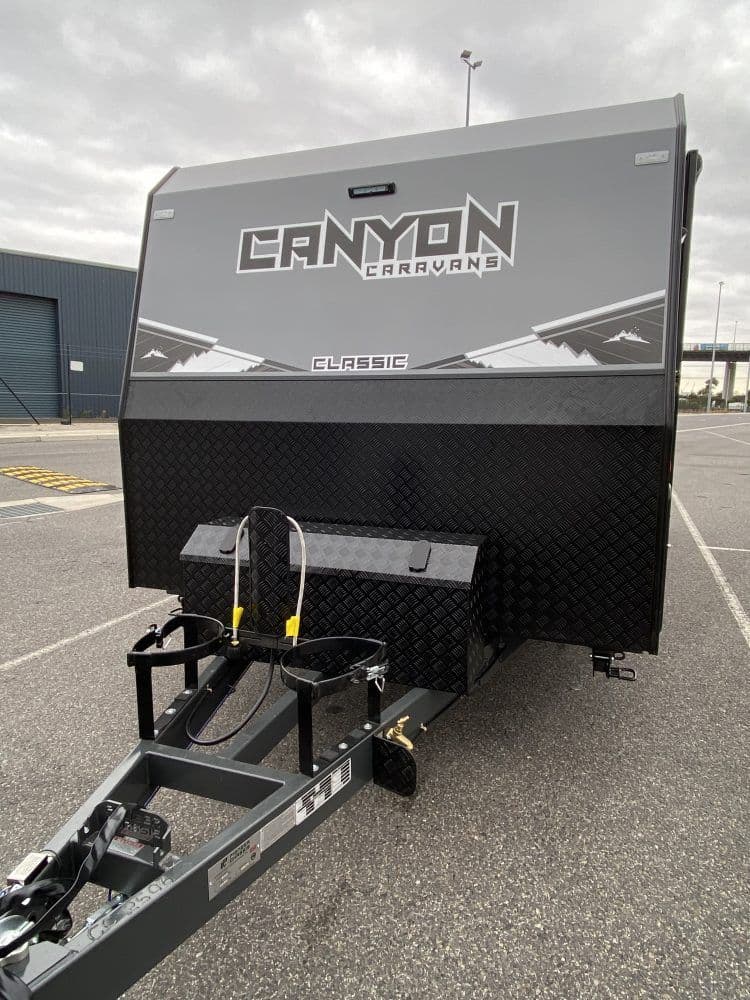

- Large front tunnel boot with dual access; toolbox on A-frame

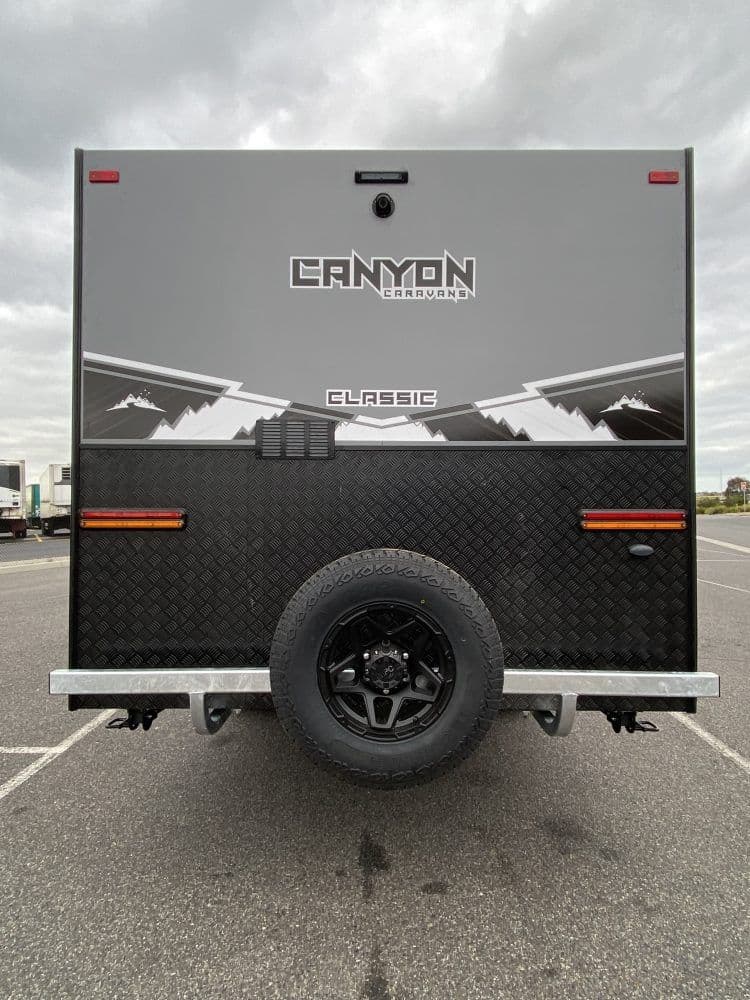

- Checker plate on front, back and sides
- Picnic table, roll-out awning
- 6″ chassis with 2″ lift; extended heavy-duty 6″ drawbar
- Twin axle Al-Ko Roller Rocker suspension
- 10″ electric brakes + breakaway system

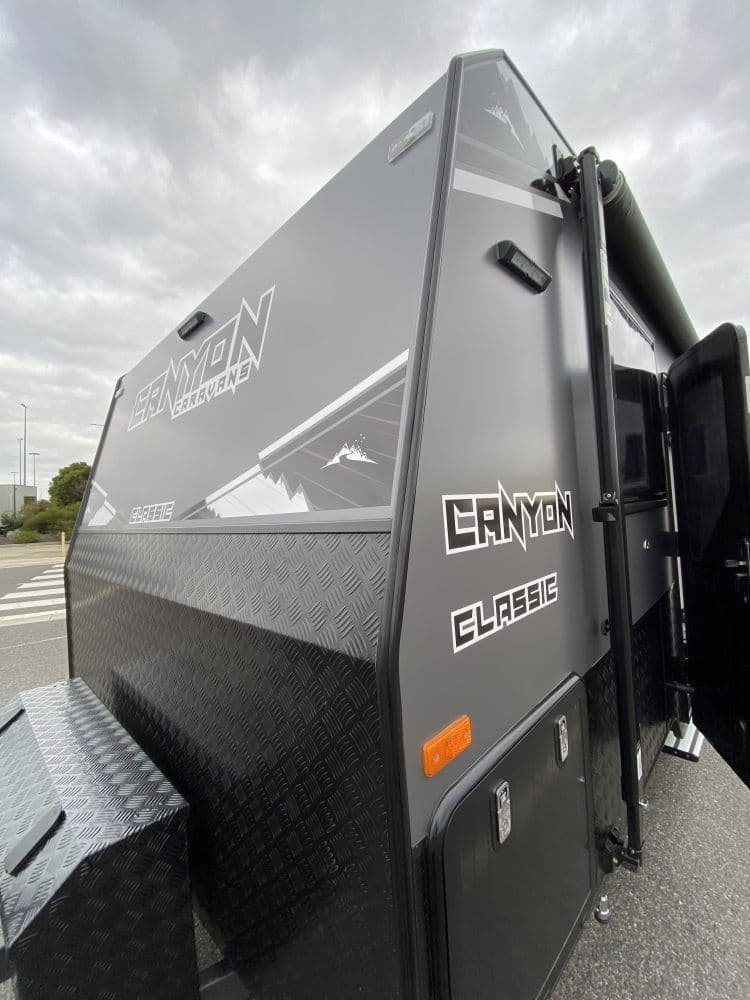

- 3-arm rear bumper bar, jockey wheel on A-frame
- 4 quick-drop adjustable corner stabilisers
- Aluminium pull-out step, mud flaps
- Structural-grade, highly water-resistant deck under one-piece vinyl in your choice of colour
- Solid timber walls with composite cladding
- Comfortable at Birdsville in January and Jindabyne in July
/06/Construction
Built like it means it.
Structural water-resistant floor
Structural-grade, highly water-resistant deck under one-piece vinyl in your choice of colour
Meranti hardwood frame
Solid timber walls with composite cladding
Fully insulated walls & roof
Comfortable at Birdsville in January and Jindabyne in July
/07/Next step
Make it your Classic.
Ask a question, book a factory walk-through, or start speccing. We reply within one business day.
Call 0478 555 088
