Welcome to Canyon Caravans

Australian made quality affordable caravans that meet the demand of the harsh Australian environment.

Our passion and pride go above and beyond in support of you to go off the beaten track to create memories and live your dreams.

With attention to detail we custom build to your needs just the way you want.

Value for money caravans delivered Australia wide.

With over 15 years caravaning experience let us help you today.



Canyon Caravans Australian Owned
Canyon Caravans Morning Sun

About Us

Based in Laverton North the Western Suburbs of Melbourne, we are only 20 Minutes from the CBD over the West Gate Bridge, a family owned business combining a wealth of knowledge and experience in caravaning to deliver you an Australian Made and Locally Built Caravan jam packed with all the creature comforts.

Our Brand is Fast Growing and has been recognised through CIL Insurance. Our manufacturing team have been hand picked to produce a high quality caravan, all our caravans can be upgraded to suit your needs including Semi or Fully Off Road suspension.

We can also custom design and custom build a caravan to meet not only your needs but your budget.  We Offer Extended Warranty up to 6 Years, Finance through our trusted partners and Delivery Australia wide.
Canyon Caravans Road and Sun

Get In touch

Leave us a message

10/5-11 Agosta Drive, Laverton North, Melbourne, Australia, 3026

0478 555 088

Impact from Coronavirus and Omicron

As we are all well aware of the global pandemic, the industry is experiencing a shortage of parts, supplies and Labor in the industry, we cannot guarantee availability on any parts at the time of manufacturing. If a standard part is unavailable at the time of production Canyon Caravans will replace the part or parts with similar.

Delivery dates

Due to the spread of Covid-19 and Omicron in the industry manufacturers are experiencing Labor shortages and at times have had to close due to having to isolate and not attend work, it has affected the whole caravan manufacturing industry and due to this the agreed delivery dates will be effected. Canyon Caravans will do their best to be in contact with their customers to advise them if we cannot meet the agreed delivery dates.

Brands we use

Our Partners

for the lowest price

Canyon Caravans

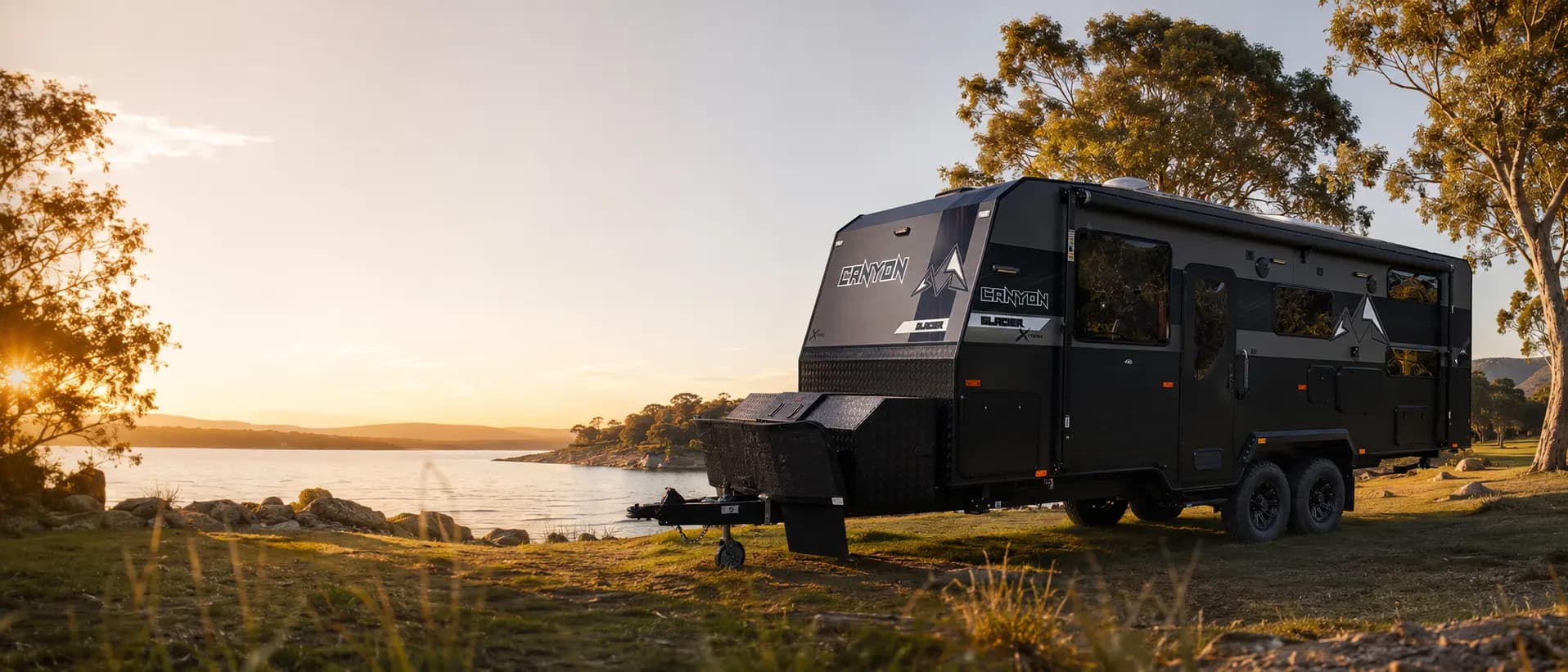

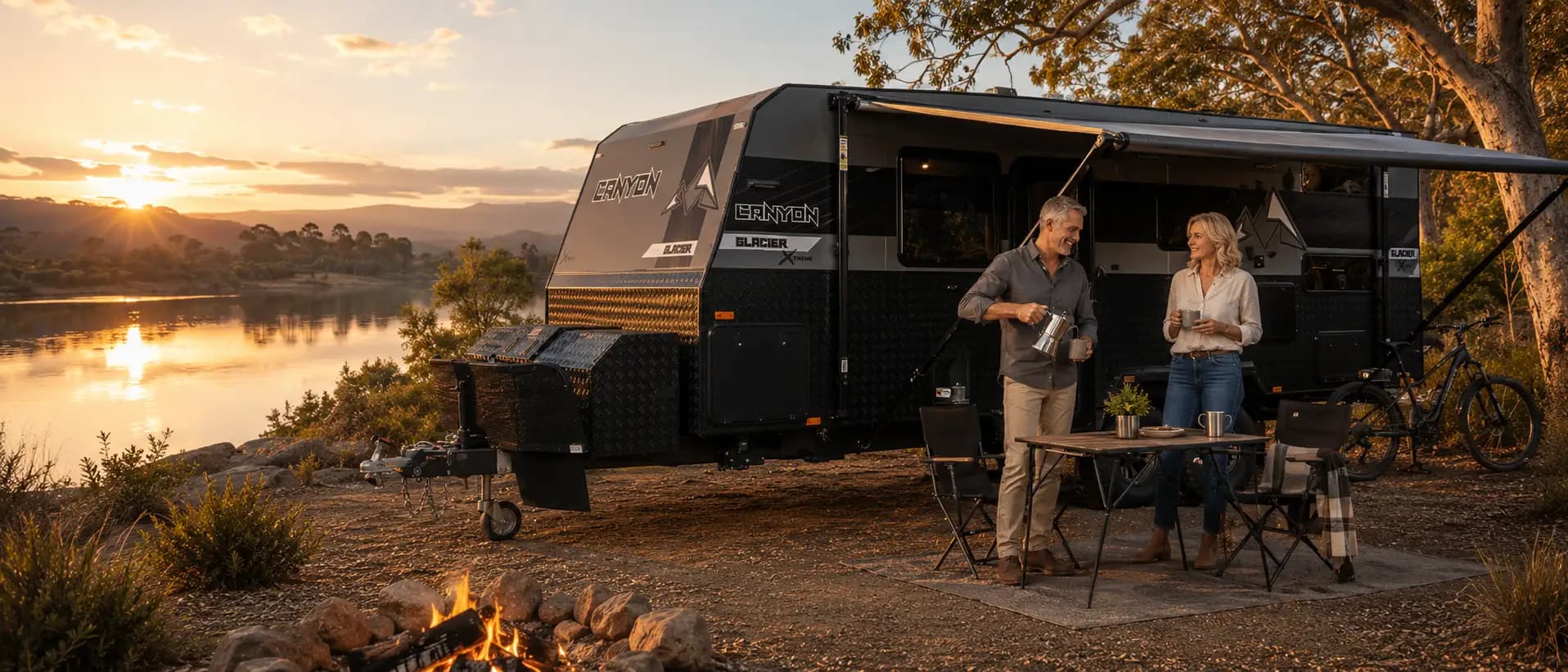

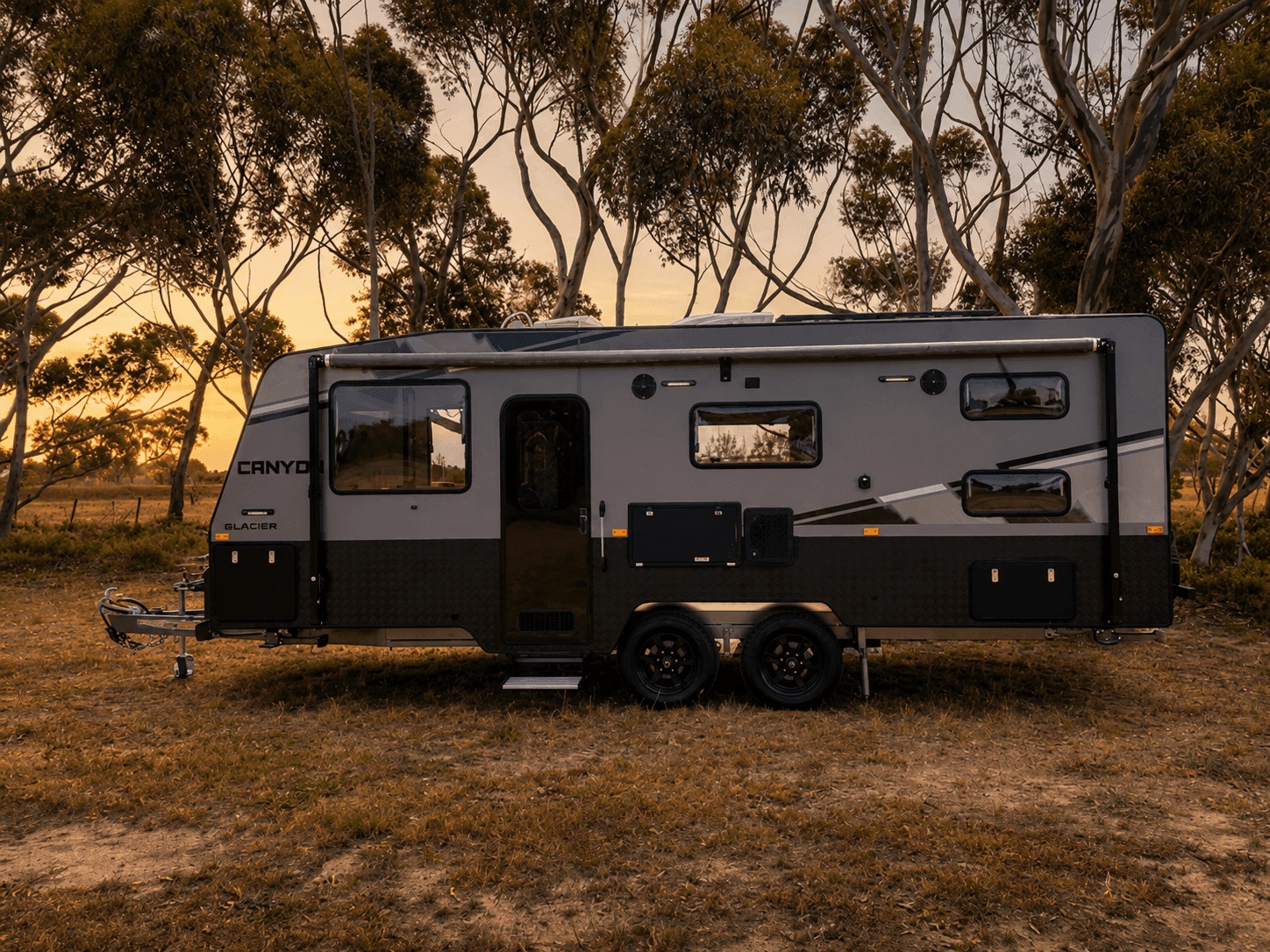

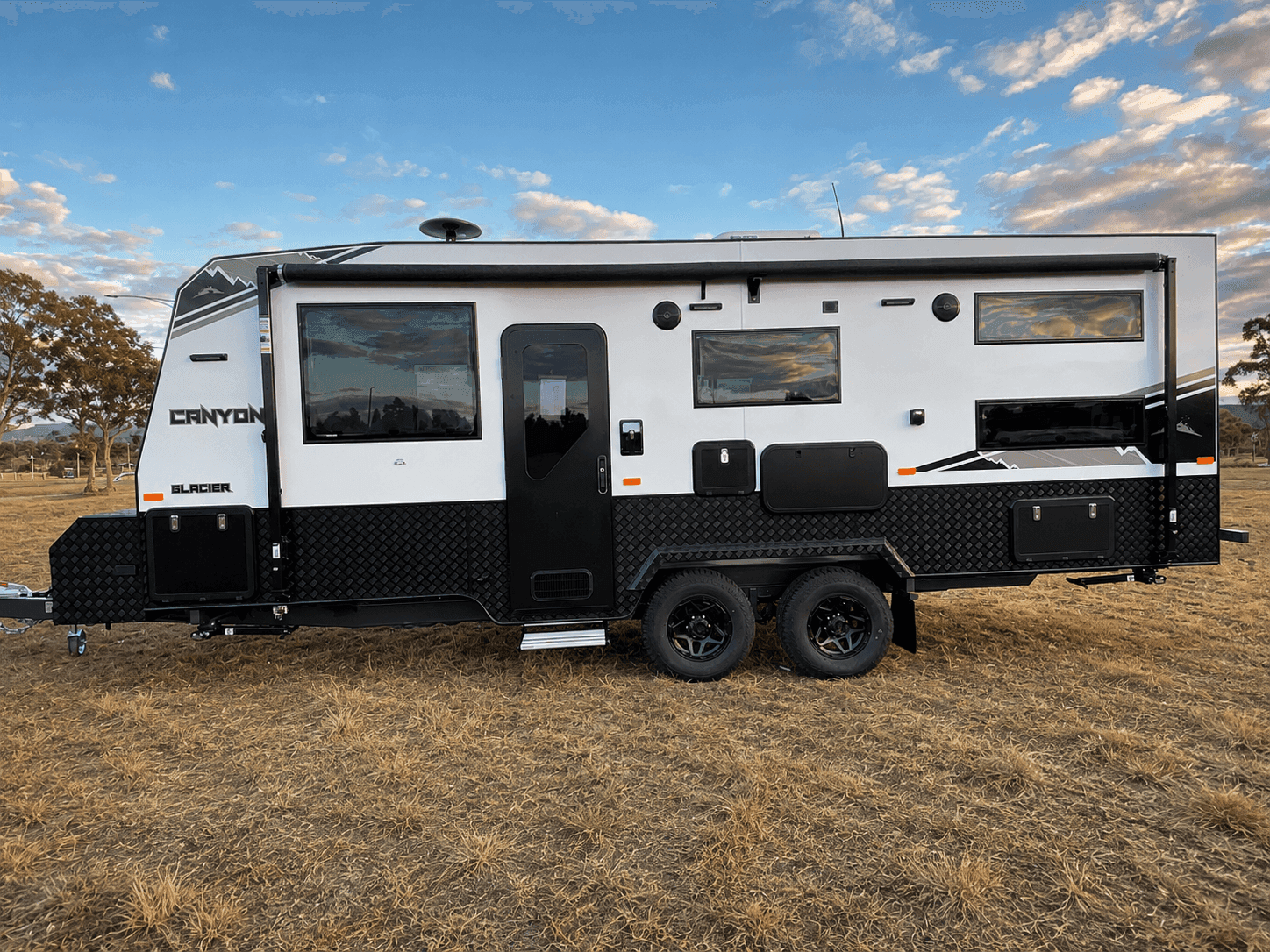

Glacier

22' BUNK VAN

All Pictures shown are for illustration purpose only.

GLACIER FLOOR PLAN

Glacier Floorplan

SLEEPING QUARTERS

  • Queen Island Bed 6’2″ (Lift-Up with Strut Assist) and Storage Underneath
  • Inner Spring Pillow Top Mattress
  • Niches Both Sides of Queen Bed
  • Robes and Bed Side Tables with Storage
  • 3 Bunks or 2 Bunk Option 6’2″ Matresses
  • 2 Bunk Option with Storage Underneath Internal and External Hatch
  • Dividing Curtain in Bunk Section
  • 2 Roof-Mounted Skylight Hatches

KITCHEN / LIVING

  • Stainless Steel Sink
  • Full Height Splash back
  • Cupboard Doors available in a selection of Gloss and Matte
  • Piano Hinges in all Cupboards
  • Overhead Cupboards With Piano Hinges And Double Struts
  • Rolled Kitchen Laminate Bench Tops
  • Latched Handles in a Selection of Black or Silver
  • Draws Slide on Rollers and Runners
  • Stove Recessed Under Hinged and Rolled Bench Top
  • Slide Out Pantry
  • L-shaped Lounge Leather Look (Option to Make into Extra Bed)
  • Magazine Holder

APPLIANCES AND ENTERTAINMENT

  • 182Ltr Thetford 3-Way Fridge/Freezer Tropical Rated
  • Thetford 3 Gas & 1 Electric Stove top, Oven & Griller
  • Air Conditioner Reverse Cycle Low Profile Gree
  • Range-Hood Flush mounted
  • Microwave Oven Sphere Mirror Finish
  • Washing Machine
  • Hot Water System 2 Way Gas/Electric Stainless Steel Swift
  • LARGE 24″ 12V HD LED TV Finch
  • Antenna Dometic HDTV with Three Stage Signal Amplifier
  • Stereo Head Unit (Radio/CD/USB/AUX/DVD/Bluetooth)
  • 2 x Internal Speakers
  • 2 x External Speakers Marine Grade

ENSUITE

  • Separate One Piece Shower With Chrome Flick Mixer & Adjustable Shower Head
  • Ceramic Basin with Chrome Flick Mixer
  • Vanity with Cupboard for Storage
  • Toilet Thetford with Cassette
  • 12v Fan and Hatch in Shower

ELECTRICAL

  • BM PRO Plus 35-II-SI Battery Management System
  • LED Down Lights Throughout Interior
  • LED Reading Lights in Bedroom & Living
  • LED Door Grab Handle
  • LED Light on Front and Rear of Van
  • LED Light in Tunnel Boot
  • LED Lights External in Awning x 2
  • 100Ah Deep Cycle Batteries x 2
  • Battery Charger
  • 170w Solar Panels x 2
  • Solar Regulator
  • 240V Double Power Points Throughout Including Niches
  • 12v or USB Points Throughout
  • Gauges for Water tank
  • External 240v Power Point
  • External 12V Socket
  • LED Tail Lights
  • LED Side Markers & Clearance Lights
  • Trailer Plug Flat 12 Pin
  • Anderson Plug
  • TV Points Internal and External
  • Smoke Alarm

PLUMBING

  • 2 x 95 Litre Water Tanks
  • 1 x 95 Litre Grey Water Tank
  • 2 x 9kg Gas Bottles
  • Mains Pressure Limiter on Inlet
  • Lockable Water Fillers on Tanks
  • 12V Water Pump
  • External Gas Bayonet
  • Tap on A-Frame

EXTERNAL

  • Choice of Composite or Aluminium Cladding
  • Triple Lock Entry Door with Grill Mesh Security Door & Fly Screen
  • Double Glazed Windows, With Block Out Blind & Fly Screen
  • Large Front Tunnel Boot With Dual Access
  • Tool Box On Front of “A” Frame
  • Checker Plate on Front and Back
  • Checker Plate on Sides
  • Picnic Table
  • Roll Out Awning

CHASSIS

  • Chassis 6″ With 2″ Lift
  • Extended Heavy Duty 6″ Draw Bar
  • 15″ Alloy Wheels with 235/75/15 ALL TERRAIN TYRES
  • Twin Axle, Al-ko Roller Rocker Rated at 3.2 Tonnes
  • 10” Electric brakes
  • Carmac Break away System
  • 3-Arm Rear Bumper Bar
  • Jockey Wheel on A-Frame
  • 4 x Quick Drop Down Adjustable Corner Stabilisers
  • Aluminum Pull-Out Step
  • Spare Wheel
  • Mud Flaps

Weights

TARE

2550KG (APPROX)

ATM

3350KG (APPROX)

BALL

160KG (APPROX)

PAYLOAD

800KG (APPROX)

All Our Vans Are Constructed with a Floor That is Structural Grade & Highly Water Resistant and Covered with a One Piece Vinyl Floor Covering with a Colour of Your Choice, The Walls are Constructed with Solid Meranti Hard Wood Timber Frame or CNC cut pine With Aluminium Cladding or Optional Composite, All Walls and Roof Fully Insulated.

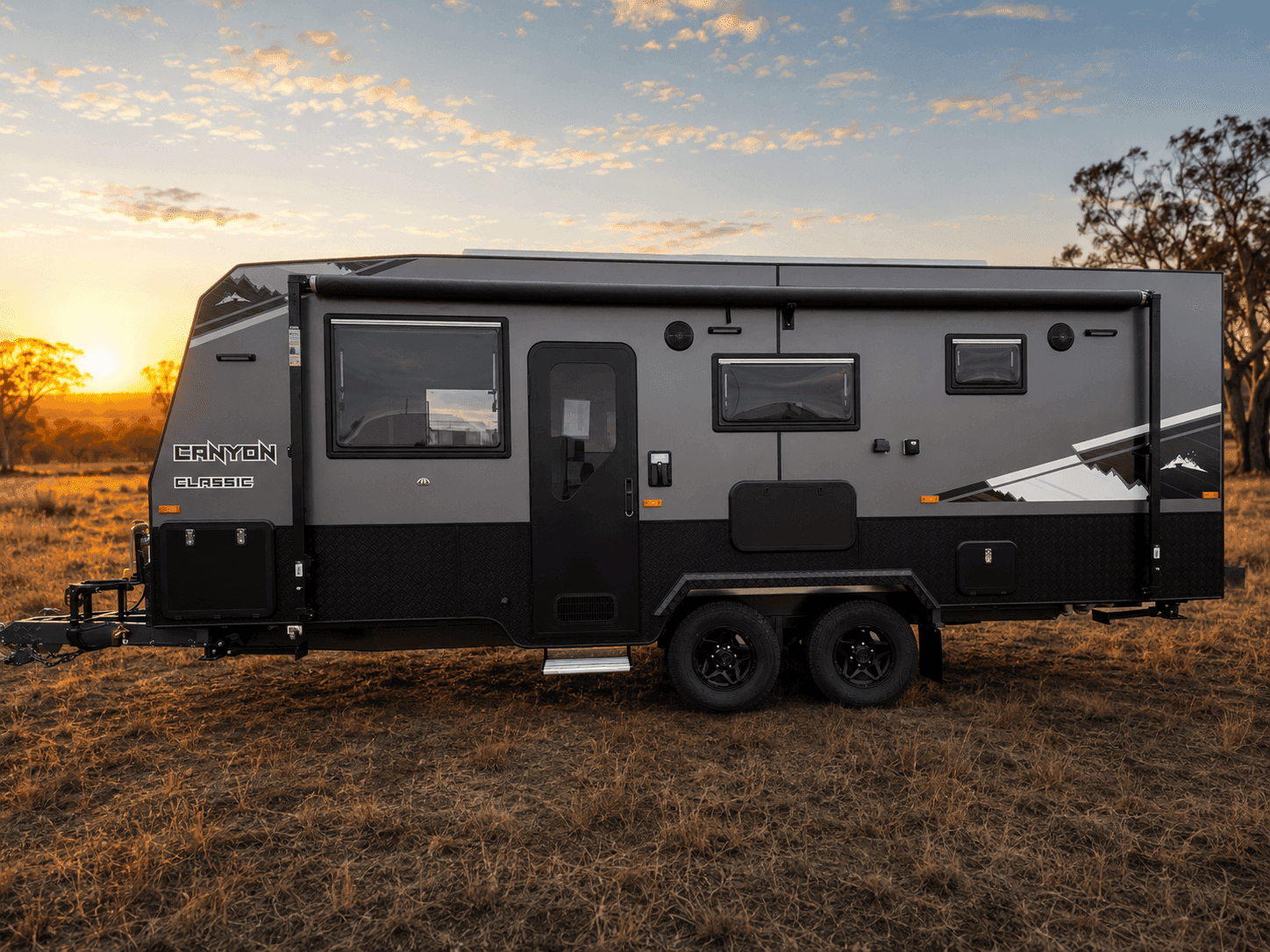

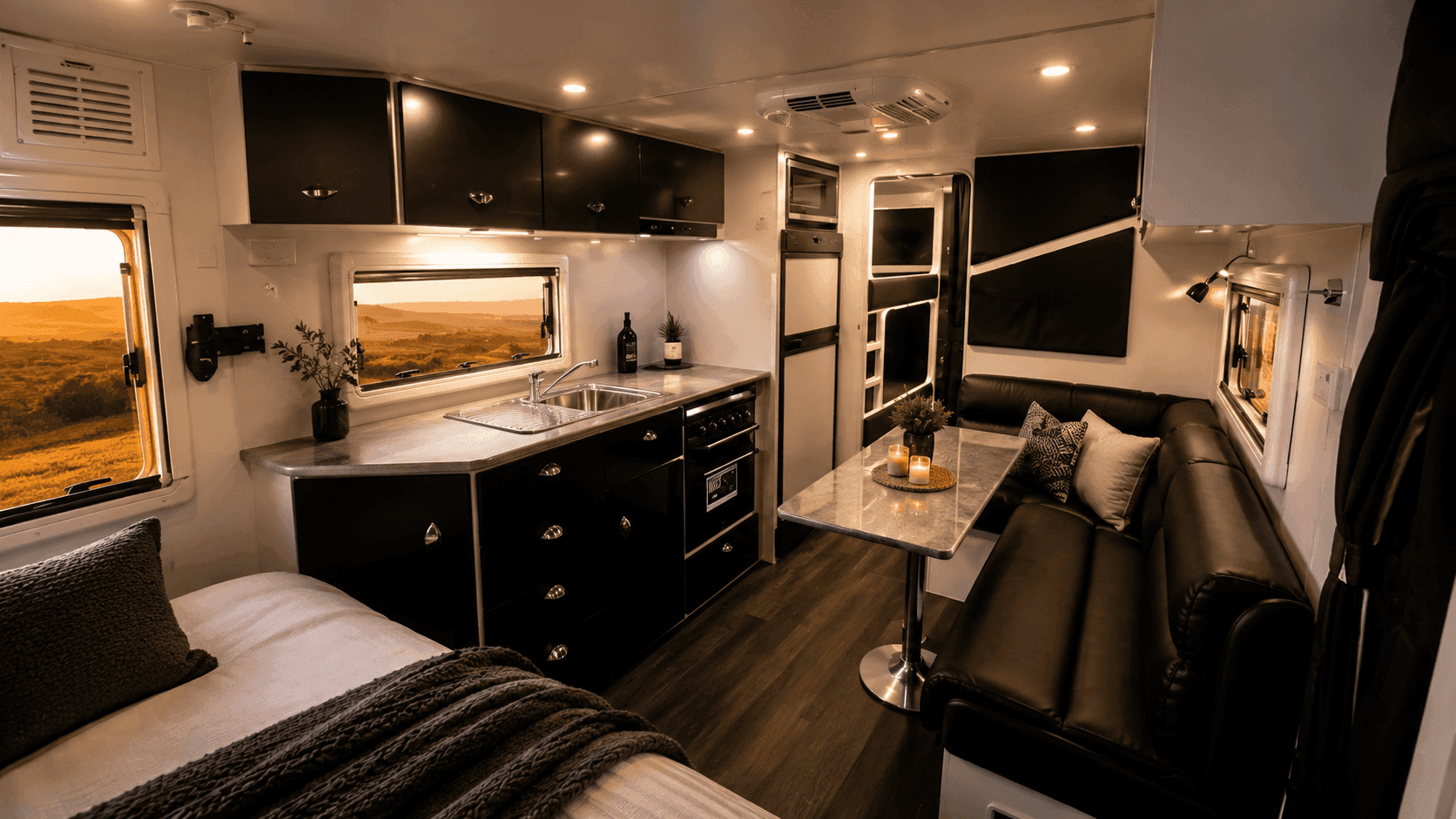

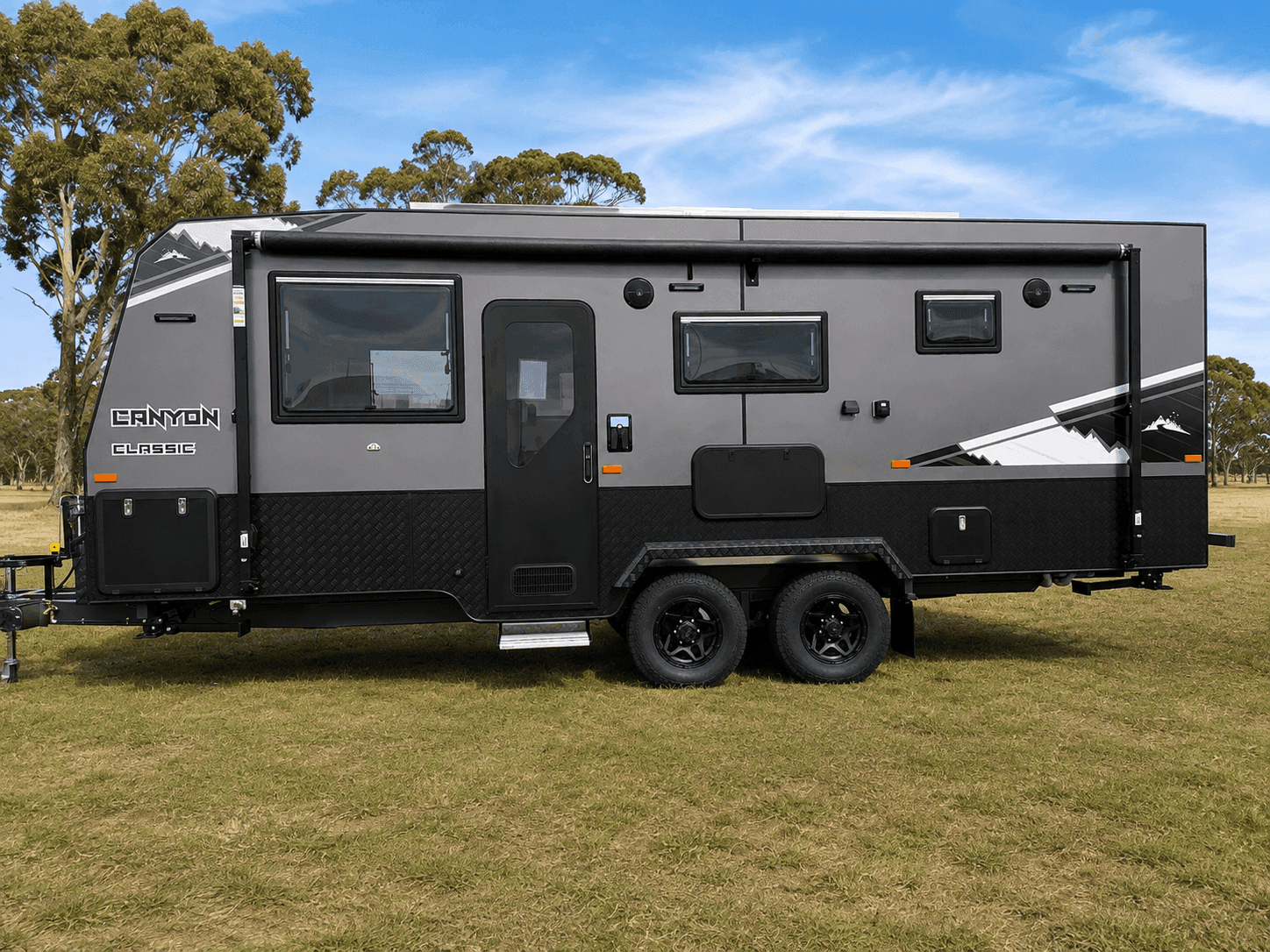

Classic

21'6" BUNK VAN

All Pictures shown are for illustration purpose only.

CLASSIC FLOOR PLAN

Classic Floorplan

SLEEPING QUARTERS

  • Queen Island Bed 6’2″ (Lift-Up with Strut Assist) and Storage Underneath
  • Inner Spring Mattress
  • Niches Both Sides of Queen Bed
  • Robes and Bed Side Tables with Storage
  • 3 Bunks or 2 Bunk Option 6’2″ Mattresses
  • 2 Bunk Option with Storage Underneath Internal and External Hatch
  • 2 Roof Mounted Skylight Hatches

KITCHEN / LIVING

  • Stainless Steel Sink
  • Full Height Splash back
  • Cupboard Doors available in a selection of Gloss and Matte
  • All Cupboards With Piano Hinges
  • Overhead Cupboards With Piano Hinges and Double Struts
  • Rolled Kitchen Laminate Bench Tops
  • Latched Handles in a Selection of Black or Silver
  • Draws Slide on Rollers and Runners
  • Stove Recessed Under Hinged and Rolled Bench Top
  • Slide Out Pantry
  • L-shaped Lounge Leather Look
  • Magazine Holder
  • One Piece Floor

APPLIANCES AND ENTERTAINMENT

  • 171Ltr Thetford 3-Way Fridge/Freezer Tropical Rated
  • Thetford 3 Gas & 1 Electric Stove top, Oven & Griller
  • Air Conditioner Reverse Cycle Belaire 3500
  • Range-Hood Flush mounted
  • Microwave Oven
  • Washing Machine
  • Hot Water System 2 Way Gas/Electric Stainless Steel Swift
  • LARGE 24″ 12V HD LED TV
  • Antenna Dometic HDTV with Three Stage Signal Amplifier
  • Stereo Head Unit (Radio/CD/USB/AUX/DVD/Bluetooth)
  • 2 x Internal Speakers
  • 2 x External Speakers Marine Grade

ENSUITE

  • Separate One Piece Shower With Chrome Flick Mixer & Adjustable Shower Head
  • Ceramic Basin with Chrome Flick Mixer
  • Vanity with Cupboard for Storage
  • Toilet Thetford with Cassette
  • 12v Fan and Hatch in Shower

ELECTRICAL

  • LED Down Lights Throughout Interior
  • LED Reading Lights in Bedroom & Living
  • LED Door Grab Handle
  • LED Light on Front and Rear of Van
  • LED Light in Tunnel Boot
  • LED Lights External in Awning x 2
  • 100Ah Deep Cycle Batteries x 2
  • Battery Charger
  • 170w Solar Panels x 2
  • Solar Regulator
  • 240V Double Power Points Throughout Including Niches
  • 12v or USB Points Throughout
  • Gauge for Water tank
  • External 240v Power Point
  • External 12V Socket
  • LED Tail Lights
  • LED Side Markers & Clearance Lights
  • Trailer Plug Flat 12 Pin
  • Anderson Plug
  • TV Points Internal and External
  • Smoke Alarm

PLUMBING

  • 2 x 95 Litre Water Tanks
  • 1 x 95 Litre Grey Water Tank
  • 2 x 9kg Gas Bottles
  • Mains Pressure Limiter on Inlet
  • Lockable Water Fillers on Tanks
  • 12V Water Pump
  • External Gas Bayonet
  • Tap on A-Frame

EXTERNAL

  • Aluminium Cladding
  • Triple Lock Entry Door with Grill Mesh Security Door & Fly Screen
  • Double Glazed Windows, With Block Out Blind & Fly Screen
  • Large Front Tunnel Boot With Dual Access
  • Tool Box On Front of “A” Frame
  • Checker Plate on Front and Back
  • Checker Plate on Sides
  • Picnic Table
  • Roll Out Awning

CHASSIS

  • Chassis  6″ With 2″ Lift
  • Extended Heavy Duty 6” Draw Bar
  • 15″ Alloy Wheels
  • Twin Axle, Al-ko Roller Rocker Suspension
  • 10” Electric brakes
  • Camac Break away System
  • 3 Arm Rear Bumper Bar
  • Jockey Wheel on A-Frame
  • 4 x Quick Drop Down Adjustable Corner Stabilisers
  • Aluminum Pull-Out Step
  • Spare Wheel
  • Mud Flaps

Weights

TARE

2450KG (APPROX)

ATM

3350KG (APPROX)

BALL

160KG (APPROX)

PAYLOAD

900KG (APPROX)

All Our Vans Are Constructed with a Floor That is Structural Grade & Highly Water Resistant and Covered with a One Piece Vinyl Floor Covering with a Colour of Your Choice, The Walls are Constructed with Solid Meranti Hard Wood Timber Frame or CNC cut pine With Aluminium Cladding or Optional Composite, All Walls and Roof Fully Insulated.

Chariot

21' BUNK VAN PRADO FRIENDLY

All Pictures shown are for illustration purpose only.

CHARIOT FLOOR PLAN

SLEEPING QUARTERS

  • Queen Island Bed 6’2″ (Lift-Up with Strut Assist) and Storage Underneath
  • Inner Spring Pillow Top Mattress
  • Niches Both Sides of Queen Bed
  • Robes and Bed Side Tables with Storage
  • 3 Bunks or 2 Bunk Option
  • 2 Bunk Option with Storage Underneath Internal and External Hatch
  • 2 Roof Mounted Skylight Hatches

KITCHEN / LIVING

  • Stainless Steel Sink
  • Full Height Laminate Splash back
  • Cupboard Doors available in a selection of Gloss and Matte
  • All Cupboards With Piano Hinges
  • Overhead Cupboards With Piano Hinges And Double Struts
  • Rolled Kitchen Laminate Bench Tops
  • Latched Handles in a Selection of Black or Silver
  • Draws Slide on Rollers and Runners
  • Stove Recessed Under Hinged and Rolled Bench Top
  • L-shaped Lounge Leather Look (Option to Make into Extra Bed)
  • Magazine Holder
  • One Piece Floor

APPLIANCES AND ENTERTAINMENT

  • 171 Ltr Thetford 3-Way Fridge/Freezer Tropical Rated
  • Thetford 3 Gas & 1 Electric Stove top & Mini Grill
  • Air Conditioner Reverse Cycle Low Profile Belaire 3500
  • Range-Hood Flush mounted
  • Microwave Oven
  • Hot Water System 2 Way Gas/Electric Stainless Steel Swift
  • LARGE 24″ 12V HD LED TV
  • Antenna Dometic HDTV with Three Stage Signal Amplifier
  • Stereo Head Unit (Radio/CD/USB/AUX/DVD/Bluetooth)
  • 2 x Internal Speakers
  • 2 x External Speakers Marine Grade

ENSUITE

  • Separate One Piece Shower With Chrome Flick Mixer & Adjustable Shower Head
  • Ceramic Basin with Chrome Flick Mixer
  • Vanity with Cupboard for Storage
  • Toilet Thetford with Cassette
  • 12v Fan and Hatch in Shower

ELECTRICAL

  • LED Down Lights Throughout Interior
  • LED Reading Lights in Bedroom & Living
  • LED Door Grab Handle
  • LED Light on Front and Rear of Van
  • LED Light in Tunnel Boot
  • LED Lights External in Awning x 2
  • Battery Box
  • 100Ah Deep Cycle Battery x1 Battery Charger
  • 170w Solar Panel x 1
  • Solar Regulator
  • 240V Double Power Points Throughout Including Niches
  • 12v or USB Points Throughout
  • Gauge for Water tank
  • External 240v Power Point
  • External 12V Socket
  • LED Tail Lights
  • LED Side Markers & Clearance Lights
  • Trailer Plug Flat 12 Pin
  • Anderson Plug
  • TV Points Internal and External
  • Smoke Alarm

PLUMBING

  • 2 x 95 Litre Water Tanks
  • 2 x 9kg Gas Bottles
  • Mains Pressure Limiter on Inlet
  • Lockable Water Fillers on Tanks
  • 12V Water Pump
  • External Gas Bayonet
  • Tap on A-Frame

EXTERNAL

  • Aluminium Cladding
  • Triple Lock Entry Door with Grill Mesh Security Door & Fly Screen
  • Double Glazed Windows, With Block Out Blind & Fly Screen
  • Front Tunnel Boot With Dual Access
  • Checker Plate on Sides
  • Picnic Table
  • Roll Out Awning

CHASSIS

  • Chassis 4″ With 3″ Lift
  • 4″ Draw Bar
  • 15″ Alloy Wheels
  • Twin Axle, Al-ko Roller Rocker Suspension
  • 10” Electric brakes
  • Camac Break away System
  • 2-Arm Rear Bumper Bar
  • Jockey Wheel on A-Frame
  • 4 x Quick Drop Down Adjustable Corner Stabilisers
  • Aluminum Pull-Out Step
  • Spare Wheel
  • Mud Flaps

Weights

TARE

2200KG (APPROX)

ATM

2500KG (APPROX)

BALL

150KG (APPROX)

PAYLOAD

450KG (APPROX)

All Our Vans Are Constructed with a Floor That is Structural Grade & Highly Water Resistant and Covered with a One Piece Vinyl Floor Covering with a Colour of Your Choice, The Walls are Constructed with Solid Meranti Hard Wood Timber Frame or CNC cut pine With Aluminium Cladding or Optional Composite, All Walls and Roof Fully Insulated.

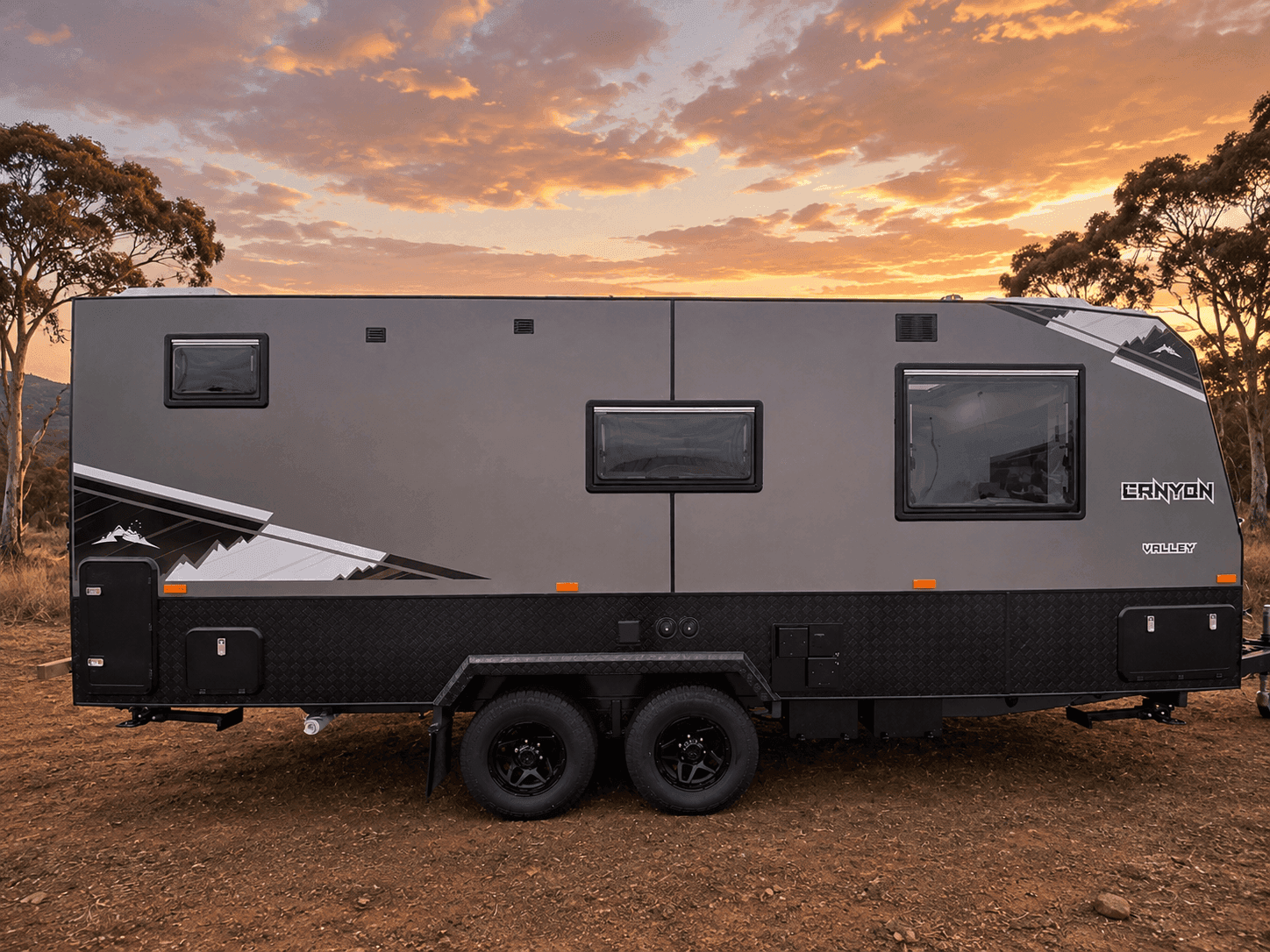

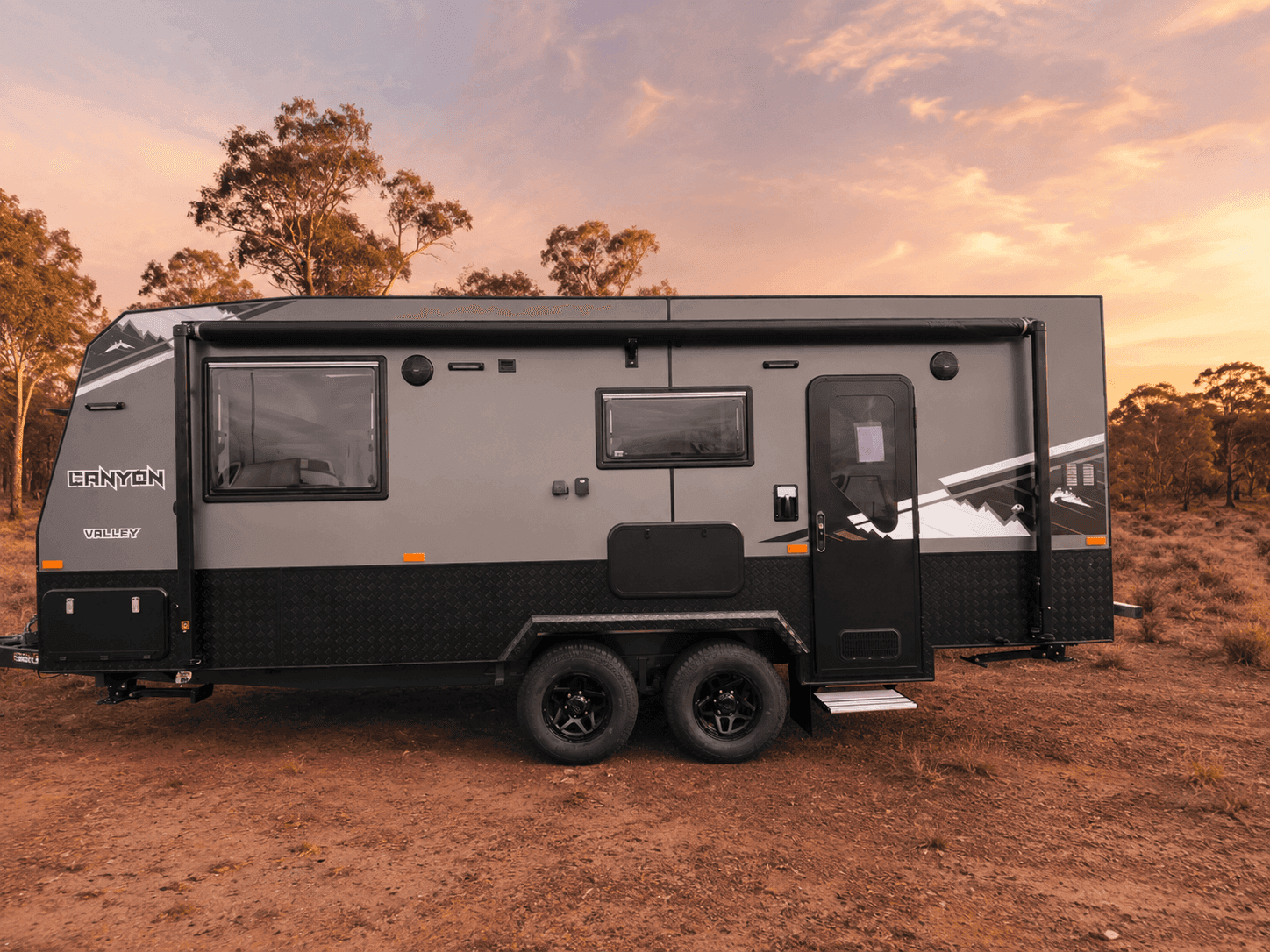

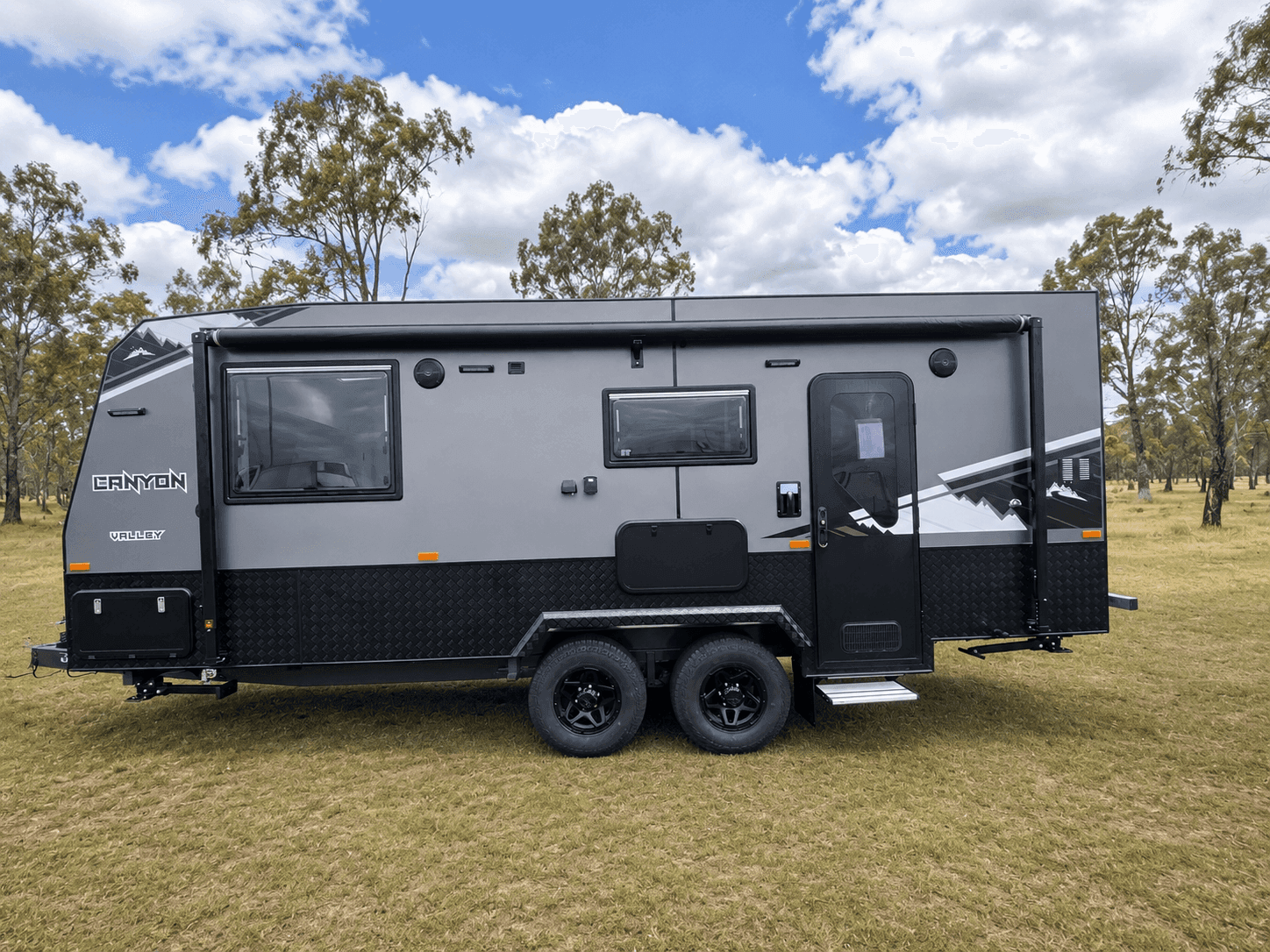

Valley

20'6 TOURING VAN

All Pictures shown are for illustration purpose only.

VALLEY FLOOR PLAN

Valley Floorplan

SLEEPING QUARTERS

  • Queen Island Bed 6’2″ (Lift-Up with Strut Assist) and Storage Underneath
  • Inner Spring Pillow Top Mattress
  • Niches Both Sides of Queen Bed
  • Robes and Bed Side Tables with Storage
  • Roof Mounted Skylight Hatches

KITCHEN / LIVING

  • Stainless Steel Sink
  • Full Height Laminate Splash back
  • Cupboard Doors available in a selection of Gloss and Matte
  • All Cupboards With Piano Hinges
  • Overhead Cupboards With Piano Hinges And Double Struts
  • Rolled Kitchen Laminate Bench Tops
  • Latched Handles in a Selection of Black or Silver
  • Draws Slide on Rollers and Runners
  • Stove Recessed Under Hinged and Rolled Bench Top
  • Slide Out Pantry
  • Full-length slide-out pantry
  • Lounge Leather Look
  • Magazine Holder

APPLIANCES AND ENTERTAINMENT

  • 171Ltr Thetford 3-Way Fridge/Freezer Tropical Rated
  • Thetford 3 Gas & 1 Electric Stove top, Mini Grill
  • Air Conditioner Reverse Cycle Belaire 3500
  • Range-Hood Flush mounted
  • Microwave
  • Washing Machine
  • Hot Water System 2 Way Gas/Electric Stainless Steel Swift
  • LARGE 24″ 12V HD LED TV
  • Antenna Dometic HDTV with Three Stage Signal Amplifier
  • Stereo Head Unit (Radio/CD/USB/AUX/Bluetooth)
  • 2 x Internal Speakers
  • 2 x External Speakers Marine Grade

ENSUITE

  • Separate One Piece Shower With Chrome Flick Mixer & Adjustable Shower Head
  • Ceramic Basin with Chrome Flick Mixer
  • Vanity with Cupboard for Storage
  • Toilet Thetford Bowl with Cassette
  • 12v Fan and Hatch in Shower

ELECTRICAL

  • Battery Charging System
  • LED Down Lights Throughout Interior
  • LED Reading Lights in Bedroom & Living
  • LED Door Grab Handle
  • LED Light on Front and Rear of Van
  • LED Light in Tunnel Boot
  • LED Lights External in Awning x 2
  • 100Ah Deep Cycle Batteries x 2
    Battery Charger
  • 170w Solar Panels x 2
    Solar Regulator
  • 240V Double Power Points Throughout Including Niches
  • 12v or USB Points Throughout
  • Gauge for Water tank
  • External 240v Power Point
  • External 12V Socket
  • LED Tail Lights
  • LED Side Markers & Clearance Lights
  • Trailer Plug Flat 12 Pin
  • Anderson Plug
  • TV Points Internal and External
  • Smoke Alarm

PLUMBING

  • 2 x 95 Litre Water Tanks
  • 1 x 95 Litre Grey Water Tank
  • 2 x 9kg Gas Bottles
  • Mains Pressure Limiter on Inlet
  • Lockable Water Fillers on Tanks
  • 12V Water Pump
  • External Gas Bayonet
  • Tap on A-Frame

EXTERNAL

  • Choice of Composite or Aluminium Cladding
  • Triple Lock Entry Door with Grill Mesh Security Door & Fly Screen
  • Double Glazed Windows, With Block Out Blind & Fly Screen
  • Large Front Tunnel Boot With Dual Access
  • Tool Box On Front of “A” Frame
  • Checker Plate on Front and Back
  • Checker Plate on Sides
  • Picnic Table
  • Roll Out Awning

CHASSIS

  • Chassis 6″ With 2″ Lift
  • 15″ Alloy Wheels with 235/75/15
  • Twin Axle, Al-ko Roller Rocker Suspension Rated at 3.2 Tonnes
  • 10” Electric brakes
  • Camac Break away System
  • 3-Arm Rear Bumper Bar
  • Jockey Wheel on A-Frame
  • 4 x Quick Drop Down Adjustable Corner Stabilisers
  • Aluminum Pull-Out Step
  • Spare Wheel
  • Mud Flaps

Weights

TARE

2550KG (APPROX)

ATM

3350KG (APPROX)

BALL

150KG (APPROX)

PAYLOAD

800KG (APPROX)

All Our Vans Are Constructed with a Floor That is Structural Grade & Highly Water Resistant and Covered with a One Piece Vinyl Floor Covering with a Colour of Your Choice, The Walls are Constructed with Solid Meranti Hard Wood Timber Frame or CNC cut pine With Aluminium Cladding or Optional Composite, All Walls and Roof Fully Insulated.

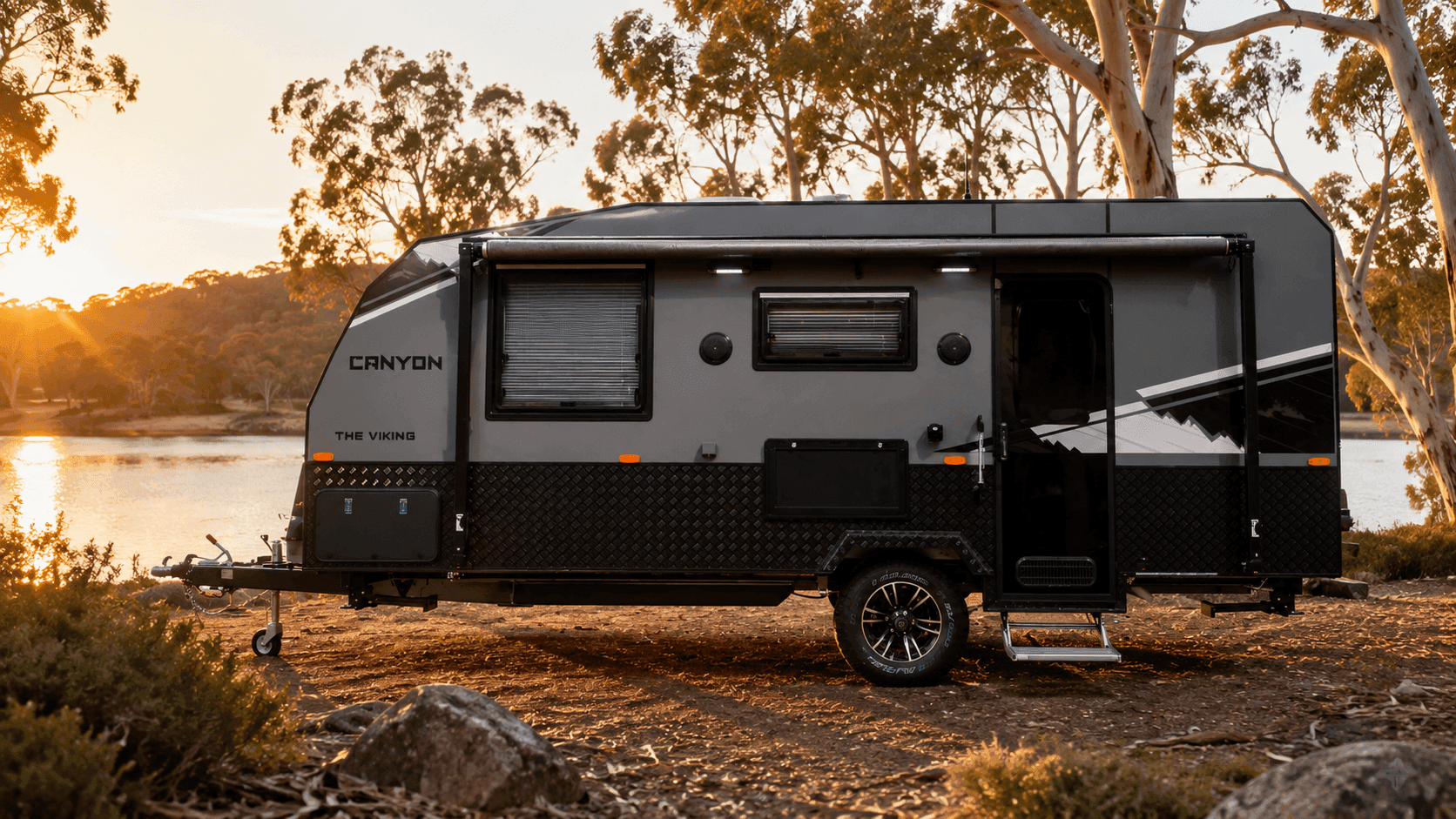

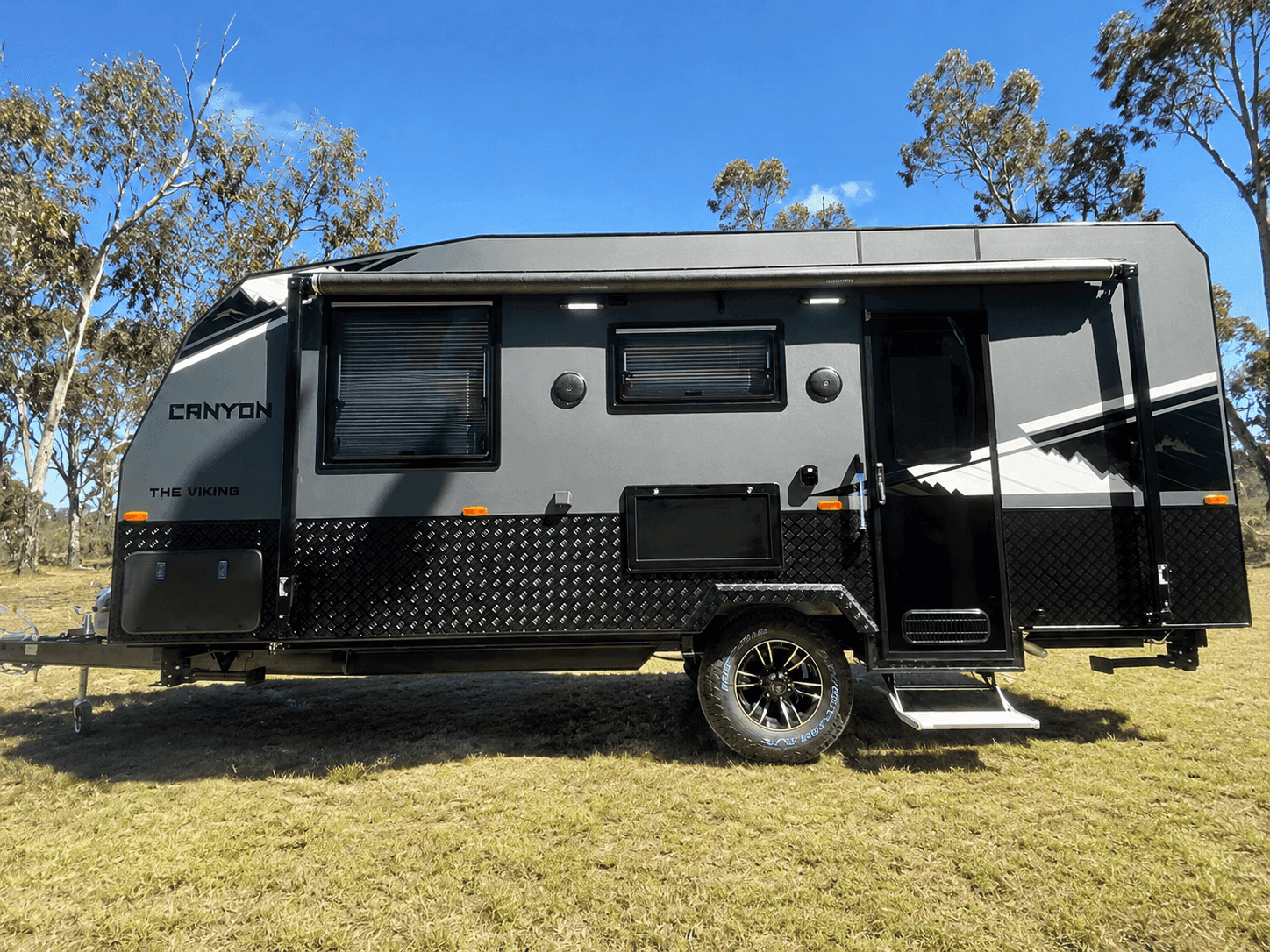

Viking

18'2 Caravan

This Caravan can be beefed up and/or scaled down to meet your needs

All Pictures shown are for illustration purpose only.

Viking FLOOR PLAN

Lagoon Floorplan

SLEEPING QUARTERS

  • Queen Island Bed 6’2″ (Lift-Up with Strut Assist) and Storage Underneath
  • Inner Spring Pillow Top Mattress
  • Robes and Bed Side Tables with Storage
  • Roof Mounted Skylight Hatch

KITCHEN / LIVING

  • Stainless Steel Sink
  • Full Height Laminate Splash back
  • Cupboard Doors available in a selection of Gloss and Matte
  • All Cupboards With Piano Hinges
  • Overhead Cupboards With Piano Hinges And Double Struts
  • Rolled Kitchen Laminate Bench Tops
  • Latched Handles in a Selection of Black or Silver
  • Draws Slide on Rollers and Runners
  • Stove Recessed Under Hinged and Rolled Bench Top
  • Slide Out Pantry
  • “L” Shape Lounge Leather Look
  • Magazine Holder

APPLIANCES AND ENTERTAINMENT

  • 182Ltr Thetford 3-Way Fridge/Freezer Tropical Rated
  • Thetford 3 Gas & 1 Electric Stove top, Mini Grill
  • Air Conditioner Reverse Cycle
  • Range-Hood Flush mounted
  • Microwave Oven
  • Washing Machine
  • Hot Water System 2 Way Gas/Electric Stainless Steel Swift
  • LARGE 24″ 12V HD LED TV
  • Antenna Dometic HDTV with Three Stage Signal Amplifier
  • Stereo Head Unit (Radio/CD/USB/AUX/DVD/Bluetooth)
  • 2 x Internal Speakers
  • 2 x External Speakers Marine Grade

ENSUITE

  • Separate One Piece Shower With Chrome Flick Mixer & Adjustable Shower Head
  • Ceramic Basin with Chrome Flick Mixer
  • Vanity with Cupboard for Storage
  • Toilet Thetford with Cassette
  • 12v Fan and Hatch in Shower

ELECTRICAL

  • Battery Charging System
  • LED Down Lights Throughout Interior
  • LED Reading Lights in Bedroom & Living
  • LED Door Grab Handle
  • LED Light in Tunnel Boot
  • LED Lights External in Awning x 2
  • 100Ah Deep Cycle Batteries x 1
  • 170w Solar Panels x 1
  • Solar Regulator
  • 240V Double Power Points Throughout Including Niches
  • 12v or USB Points Throughout
  • Gauge for Water tank
  • External 240v Power Point
  • External 12V Socket
  • LED Tail Lights
  • LED Side Markers & Clearance Lights
  • Trailer Plug Flat 12 Pin
  • Anderson Plug
  • TV Points Internal and External
  • Smoke Alarm

PLUMBING

  • 2 x 95 Litre Water Tanks
  • 2 x 9kg Gas Bottles
  • Mains Pressure Limiter on Inlet
  • Lockable Water Fillers on Tanks
  • 12V Water Pump
  • External Gas Bayonet
  • Tap on A-Frame

EXTERNAL

  • Choice of Composite or Aluminium Cladding
  • Triple Lock Entry Door with Grill Mesh Security Door & Fly Screen Aussie Traveller Brand
  • Double Glazed Windows, With Block Out Blind & Fly Screen
  • Large Front Tunnel Boot With Dual Access
  • Tool Box On Front of “A” Frame
  • Checker Plate on Front and Back
  • Checker Plate on Sides
  • Picnic Table
  • Roll Out Awning

CHASSIS

  • Chassis 6″ With 2″ Lift
  • 16″ Alloy Wheels with 245/75/16 ALL TERRAIN TYRES
  • Single Axle, with 2.7 Tonne Rated Dexter Torflex Suspension
  • 12” Electric brakes
  • Break away System
  • 3-Arm Rear Bumper Bar
  • Jockey Wheel on A-Frame
  • 4 x Quick Drop Down Adjustable Corner Stabilisers
  • Aluminum Pull-Out Step
  • Spare Wheel
  • Mud Flaps

Weights

TARE

2150KG (APPROX)

ATM

2850KG (APPROX)

BALL

180KG (APPROX)

PAYLOAD

700KG (APPROX)

All Our Vans Are Constructed with a Floor That is Structural Grade & Highly Water Resistant and Covered with a One Piece Vinyl Floor Covering with a Colour of Your Choice, The Walls are Constructed with Solid Meranti Hard Wood Timber Frame or CNC cut pine With Aluminium Cladding or Optional Composite, All Walls and Roof Fully Insulated.

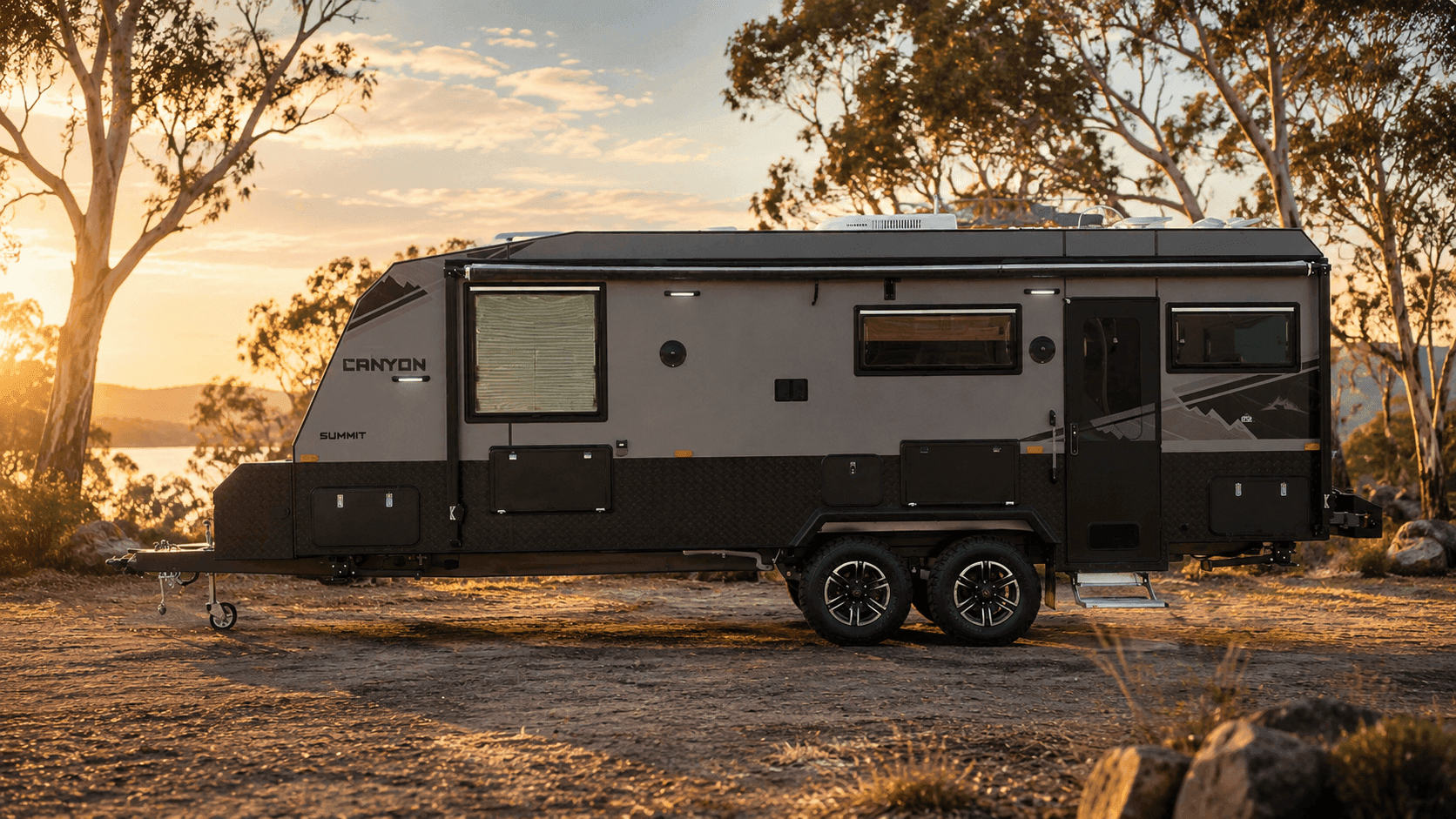

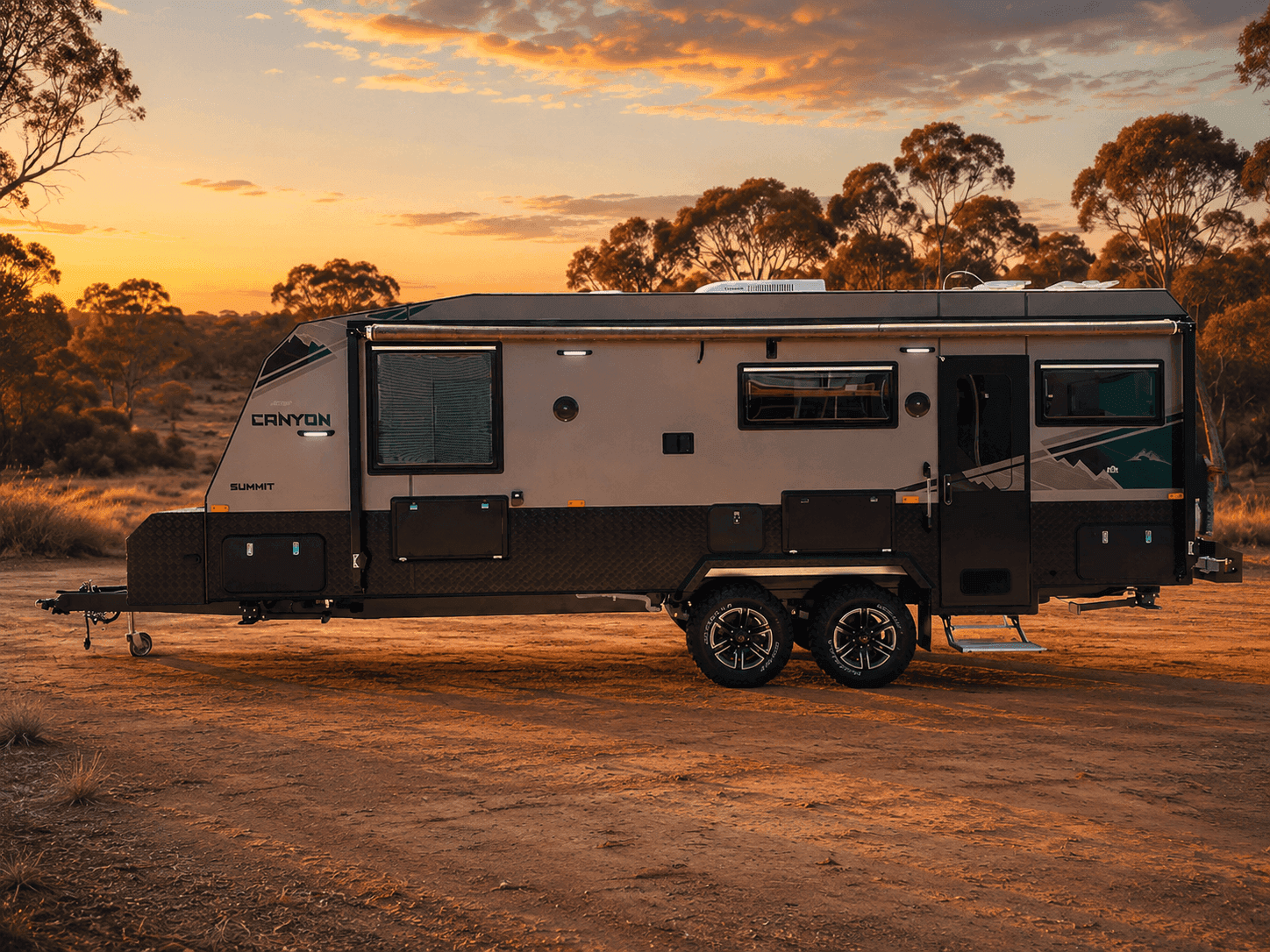

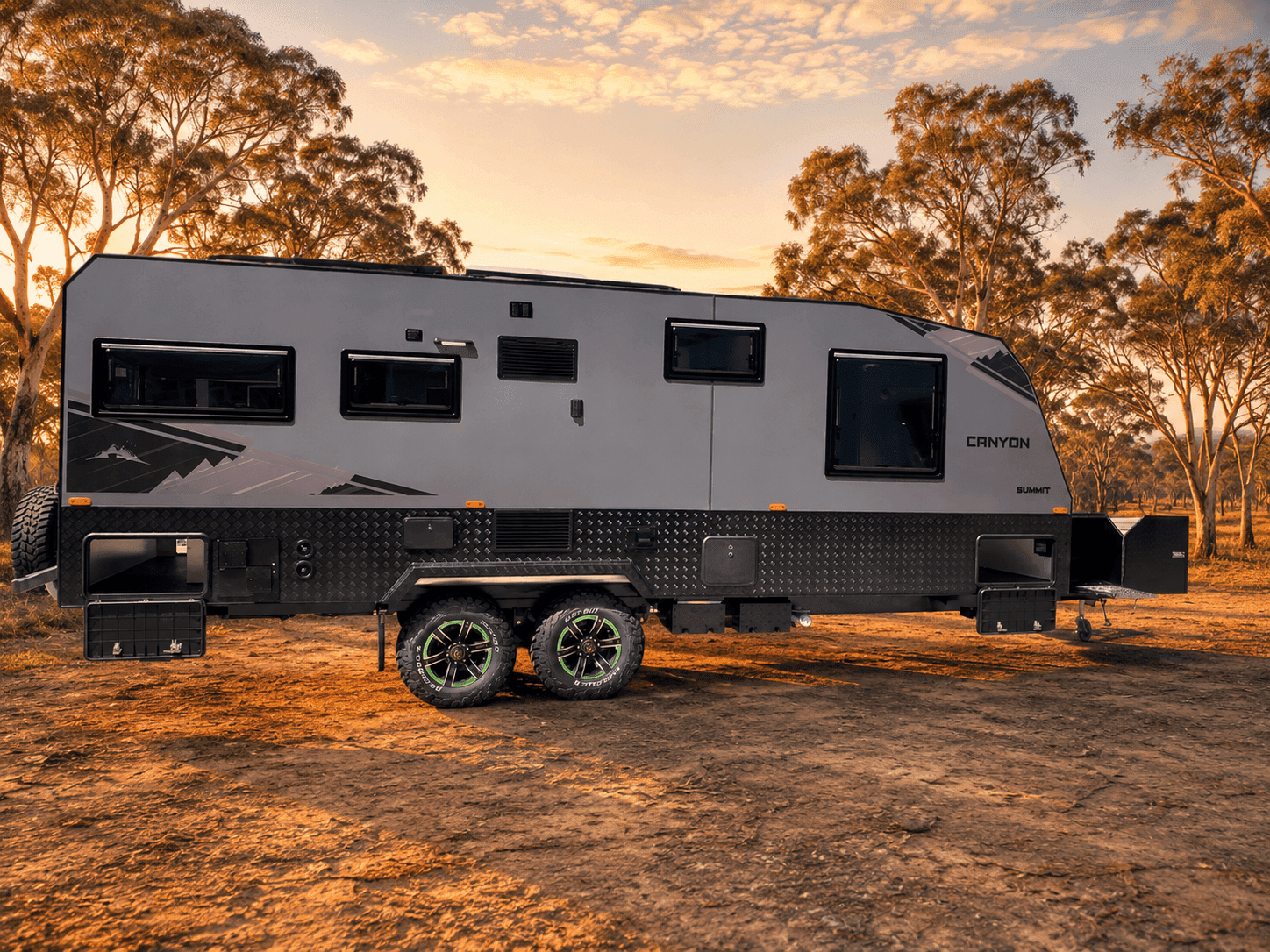

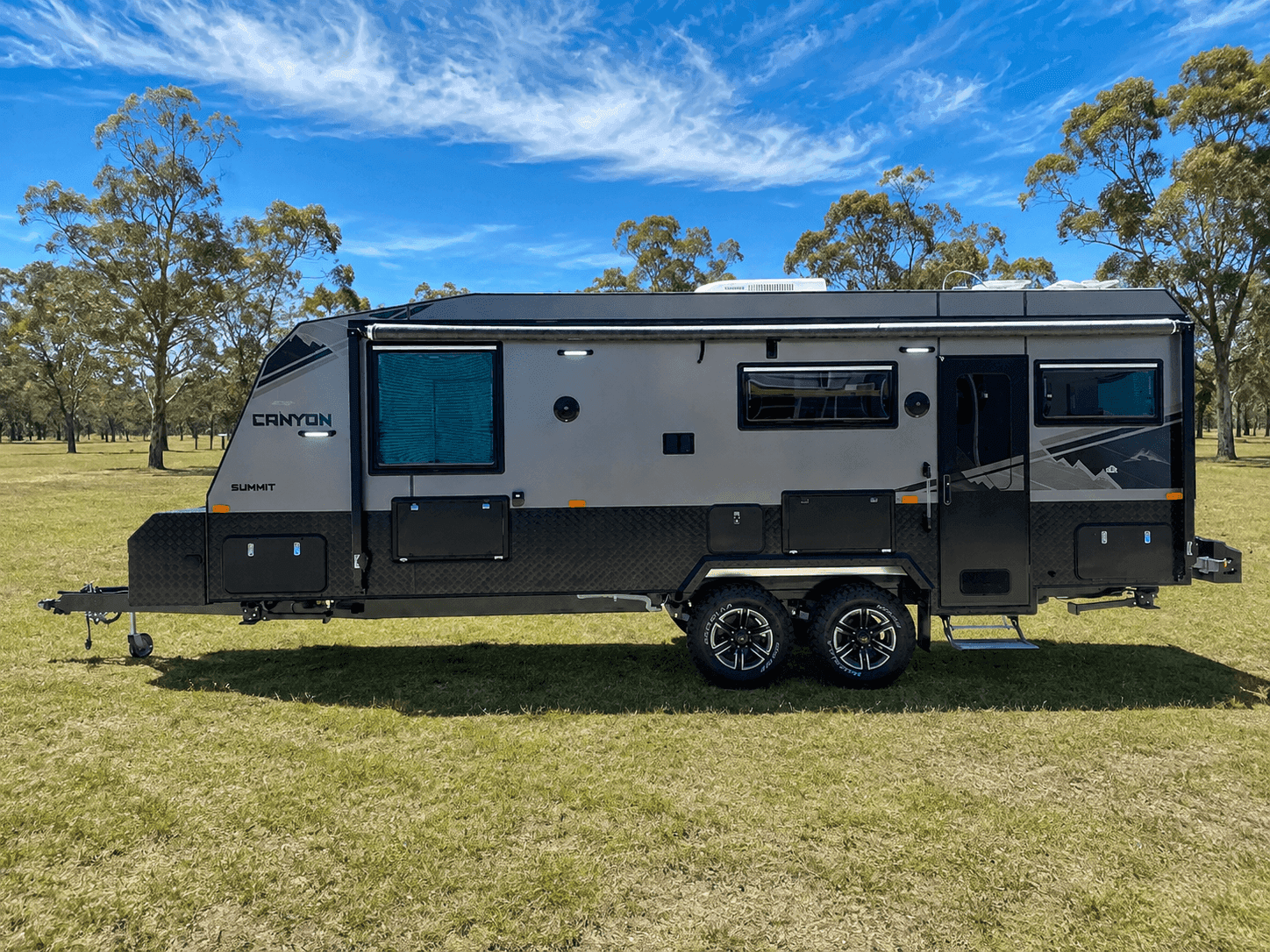

Summit

22’ CARAVAN

All Pictures shown are for illustration purpose only.

SUMMIT FLOOR PLAN

SLEEPING QUARTERS

  • Queen Island Bed 6’2″ (Lift-Up with Strut Assist) and Storage Underneath
  • Inner Spring Pillow Top Mattress
  • Niches Both Sides of Queen Bed with Lights, 240v points and USB points inside
  • Robes and Bed Side Tables with Storage
  • 2 Roof Mounted Skylight Hatches

KITCHEN / LIVING

  • Stainless Steel Sink
  • Full Height Splash Back
  • Cupboard Doors available in a selection of Gloss and Matte
  • All Cupboards with Piano Hinges
  • Overhead Cupboards with Piano Hinges and Double Struts
  • Rolled Kitchen Laminate Bench Tops
  • Latched Handles
  • Draws Slide on Rollers and Runners
  • Stove Recessed Under Hinged and Rolled Bench Top
  • Double Slide Out Pantry
  • Large Pot Draw
  • Concertina Curtain
  • Hatches with LED Lighting
  • Club Lounge with Hydraulic Drop-Down Table Leg and Tic Cushion which can then sleep two or more
  • Magazine Holder
  • One Piece Floor

APPLIANCES AND ENTERTAINMENT

  • 184Ltr Thetford 3-Way Fridge/Freezer Tropical Rated
  • Thetford 3 Gas & 1 Electric Stove top, full Oven & Griller
  • Air Conditioner Reverse Cycle (Low Profile)
  • Range-Hood Flush mounted
  • Microwave Oven (Mirror Finish)
  • Washing Machine
  • Hot Water System 2 Way Gas/Electric Stainless-Steel Swift
  • 24″ 12V  HD Smart LED TV
  • External Entertainment Hatch
  • Stereo Head Unit (Radio/CD/USB/AUX/DVD/Bluetooth)
  • 2 x Internal Speakers
  • 2 x External Speakers Marine Grade

ENSUITE

  • Separate One Piece Shower with Chrome Flick Mixer & Adjustable Shower Head
  • Ceramic Basin with Chrome Flick Mixer
  • Vanity with Cupboard for Storage
  • Toilet Thetford with Cassette
  • 12v Fan and Hatch in Shower

ELECTRICAL

  • LED Down Lights Throughout Interior
  • LED Reading Lights in Bedroom & Living
  • LED Door Grab Handle
  • LED Light on Front and Rear of Van
  • LED Light in Tunnel Boots
  • LED Lights External in Awning x 2
  • Battery Management System
  • 100ah Batteries x 2
  • 170w Solar Panels x 2
  • Solar Regulator
  • 240V Double Power Points Throughout Including Niches
  • 12v or USB Points Throughout
  • Gauges for Water tanks
  • External 240v Power Point
  • External 12V Socket
  • LED Taillights
  • LED Side Markers & Clearance Lights
  • Trailer Plug Flat 12 Pin
  • Anderson Plug
  • TV Points Internal and External
  • Reverse Camera and a Display Monitor
  • Smoke Alarm

PLUMBING

  • 2 x 95 Litre Water Tanks
  • 1 x 95 Litre Grey Water Tank
  • 2 x 9kg Gas Bottles
  • Mains Pressure Limiter on Inlet
  • Lockable Water Fillers on Tanks
  • 12V Water Pump
  • External Gas Bayonet
  • Tap on A-Frame

EXTERNAL

  • Composite Cladding
  • Triple Lock Entry Door with Grill Mesh Security Door & Fly Screen
  • Double Glazed Windows, With Block Out Blind & Fly Screen
  • Front Tunnel Boot with Dual Access
  • Extra Large Toolbox On Front of “A” Frame with Twin Slides & Gas Inside with 12v Socket for Fridge on Slide (fridge not included)
  • Storage Underneath Internal & External Hatch
  • Checker Plate on Front and Back
  • Checker Plate on Sides
  • Picnic Tables x 2
  • Roll Out Awning

CHASSIS

  • Chassis 6″ With 2″ Lift
  • Extended Heavy Duty 6” Draw Bar
  • 15″ Alloy Wheels
  • Twin Axle Roller Rocker Suspension rated at 3.5 Tonne
  • Electric brakes
  • Break away System
  • 3 Arm Rear Bumper Bar
  • Jockey Wheel on A-Frame
  • 4 x Quick Drop-Down Adjustable Corner Stabilisers
  • Aluminium Pull-Out Step
  • Spare Wheel
  • Mud Flaps

Weights

TARE

2750KG (APPROX)

ATM

3500KG (APPROX)

BALL

200KG (APPROX)

PAYLOAD

750KG (APPROX)

All Our Vans Are Constructed with a Floor That is Structural Grade & Highly Water Resistant and Covered with a One Piece Vinyl Floor Covering with a Colour of Your Choice, The Walls are Constructed with Solid Meranti Hard Wood Timber Frame or CNC cut pine With Aluminium Cladding or Optional Composite, All Walls and Roof Fully Insulated.
