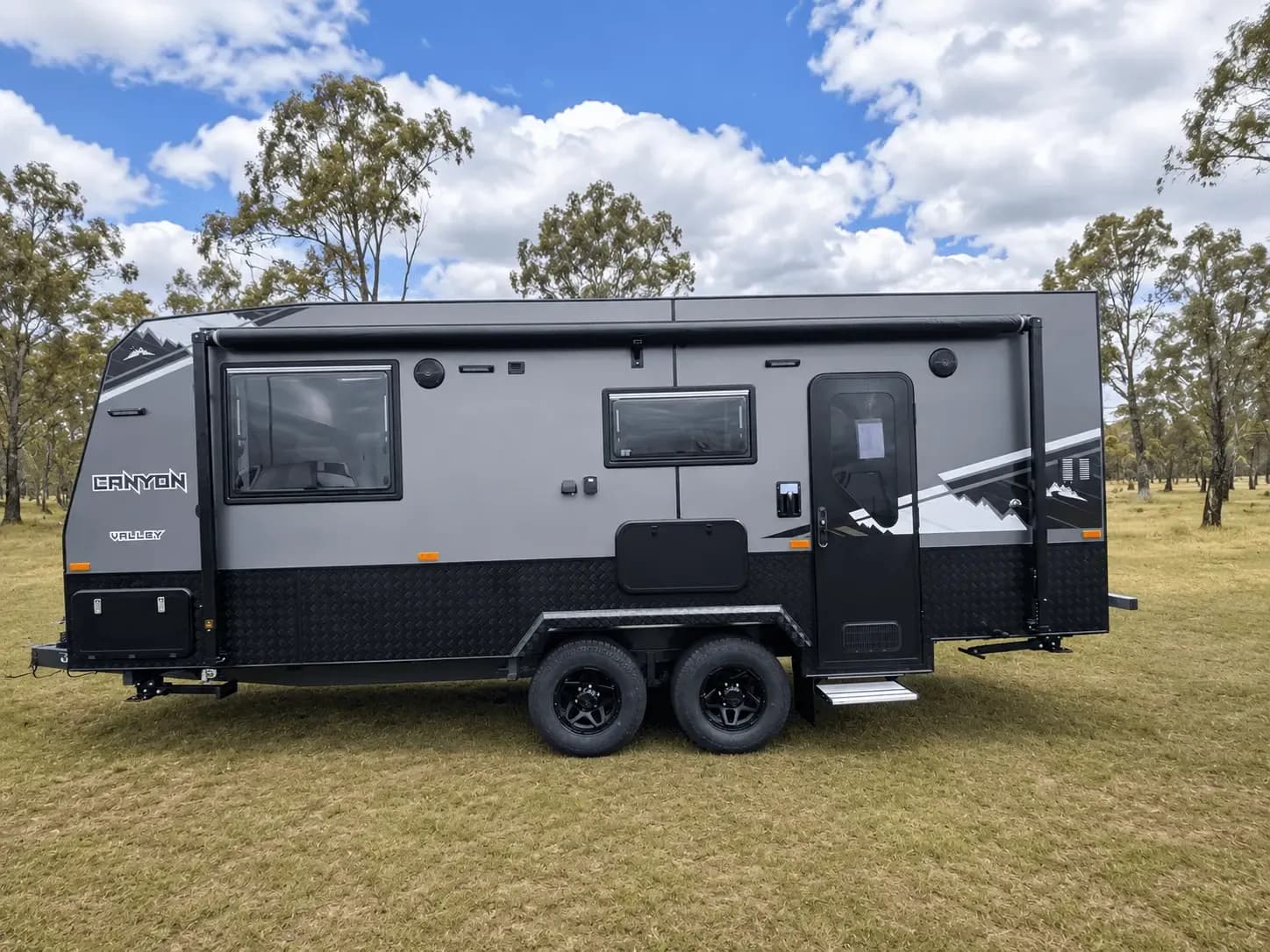

The range · Couples · Touring/20′6″

Valley

Full-size touring comfort for two — all the space, none of the bunks. Built for the long, slow lap.

Enquire / build this model Call 0478 555 088

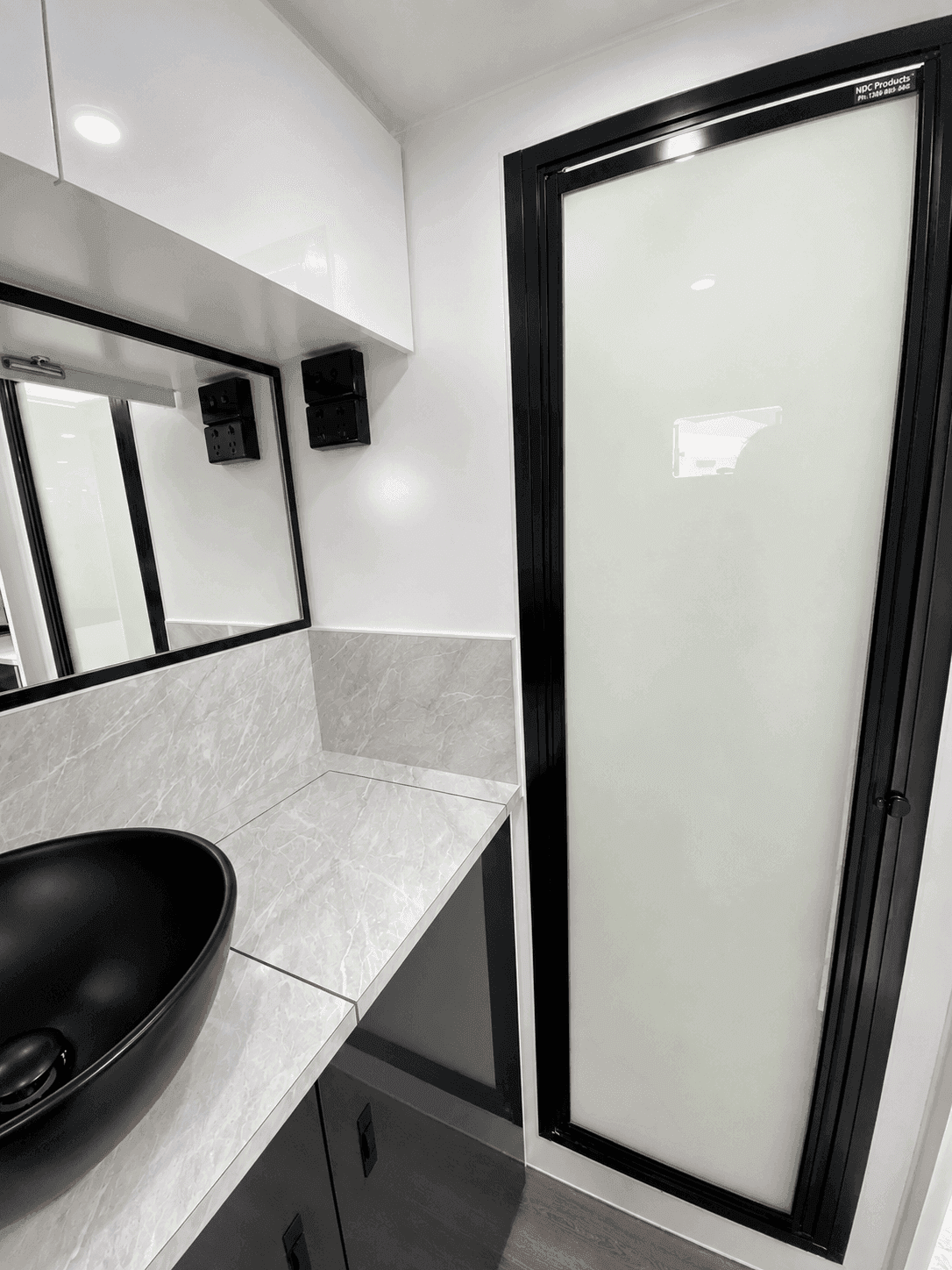

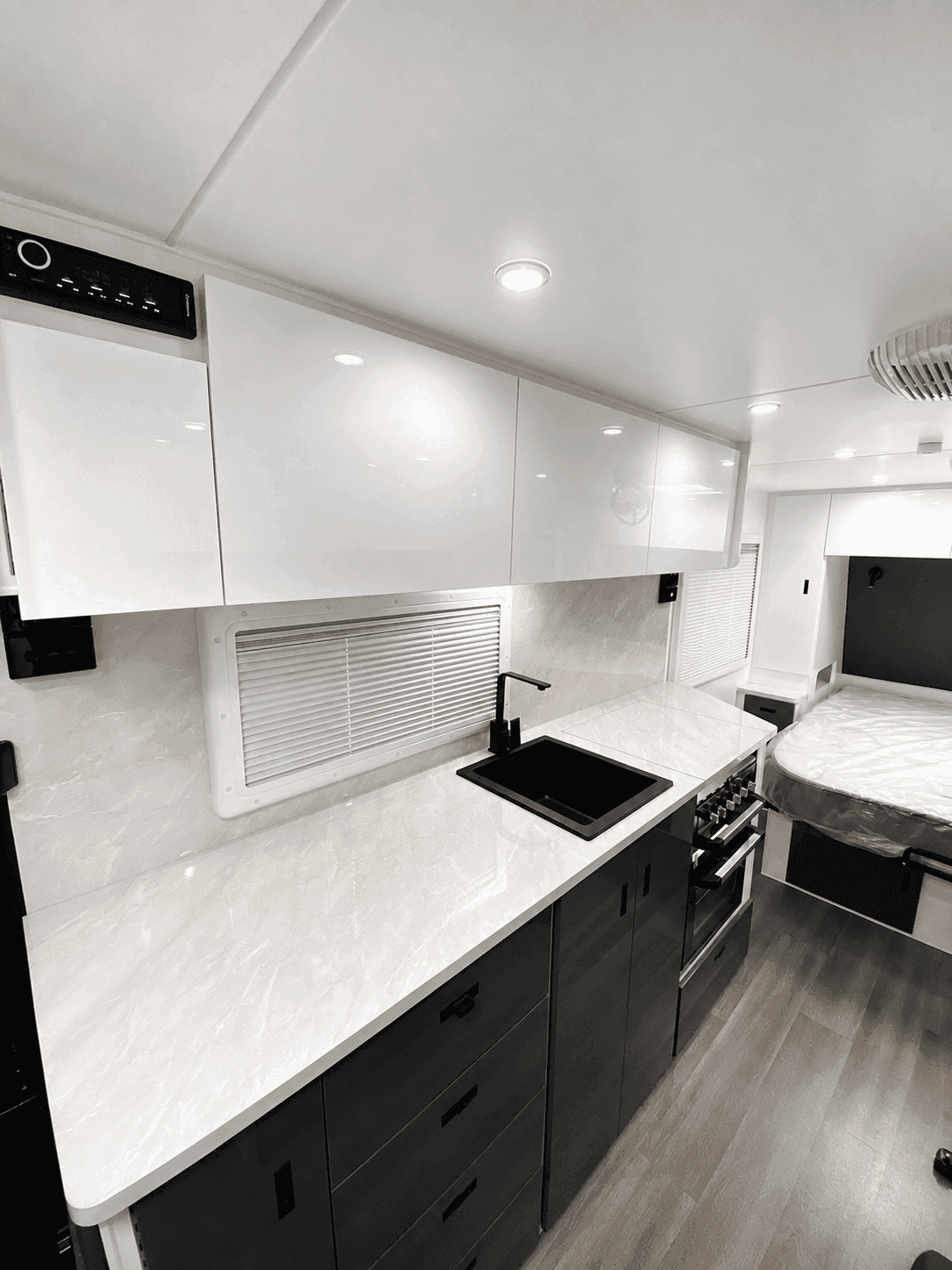

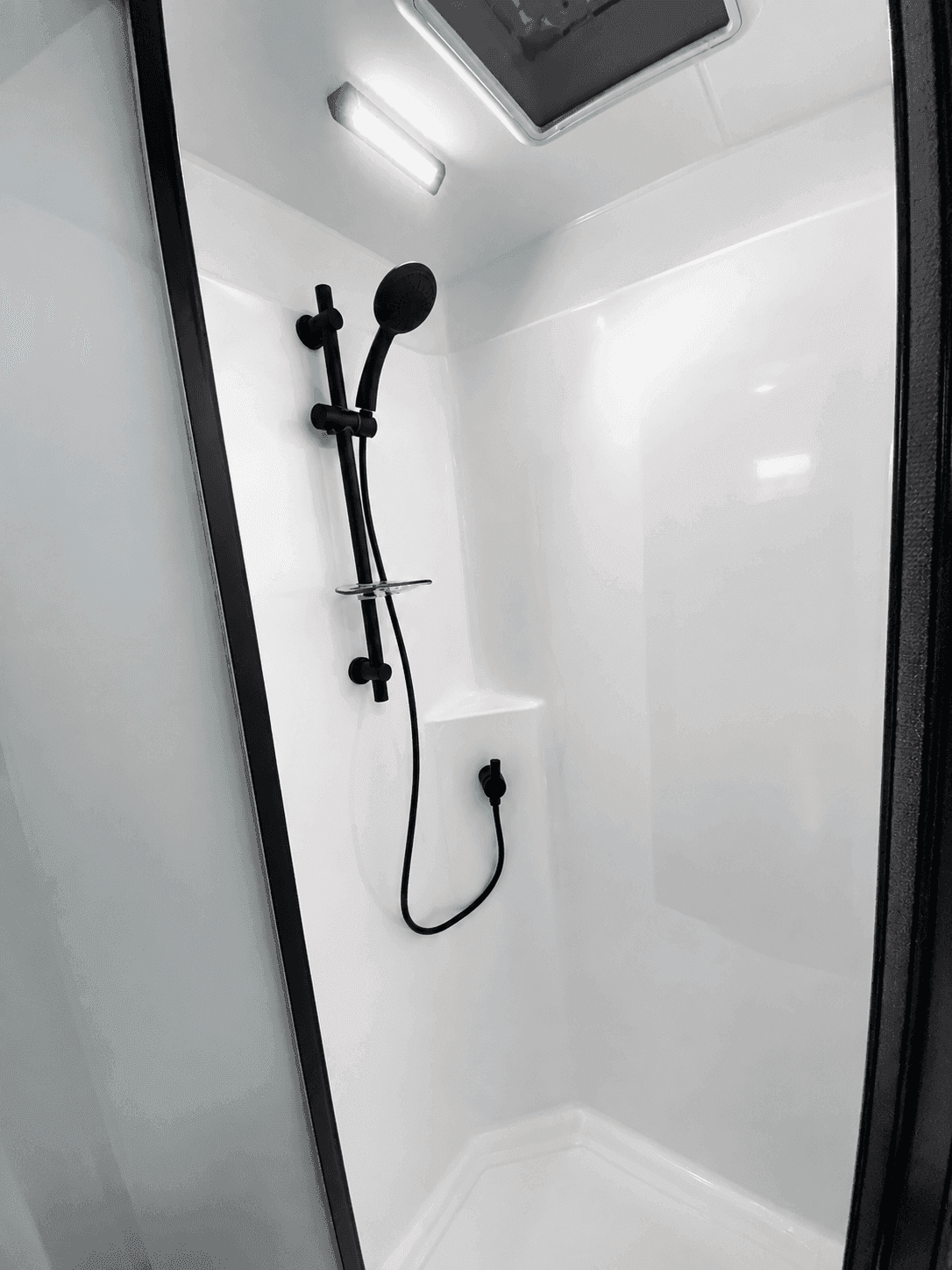

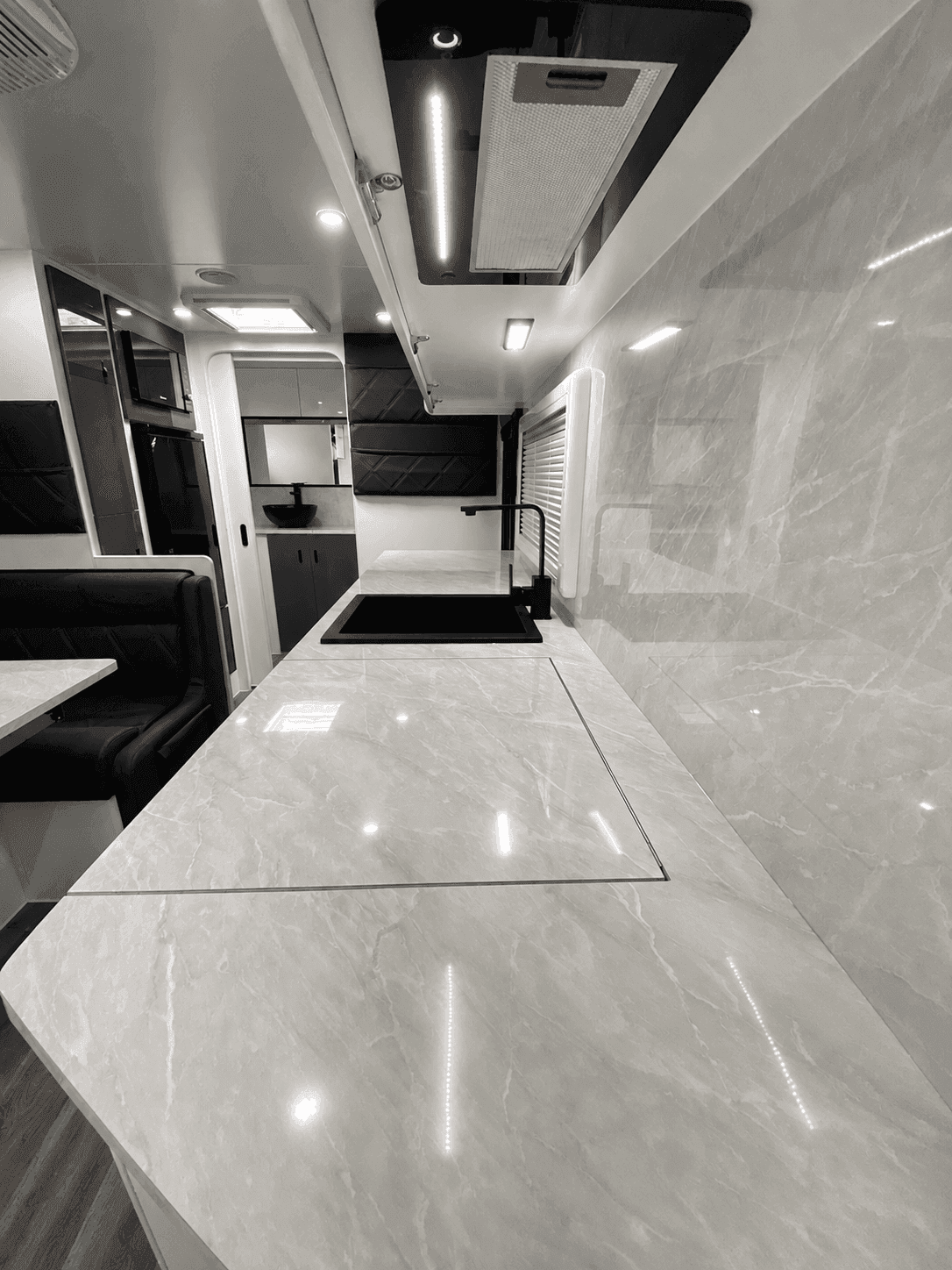

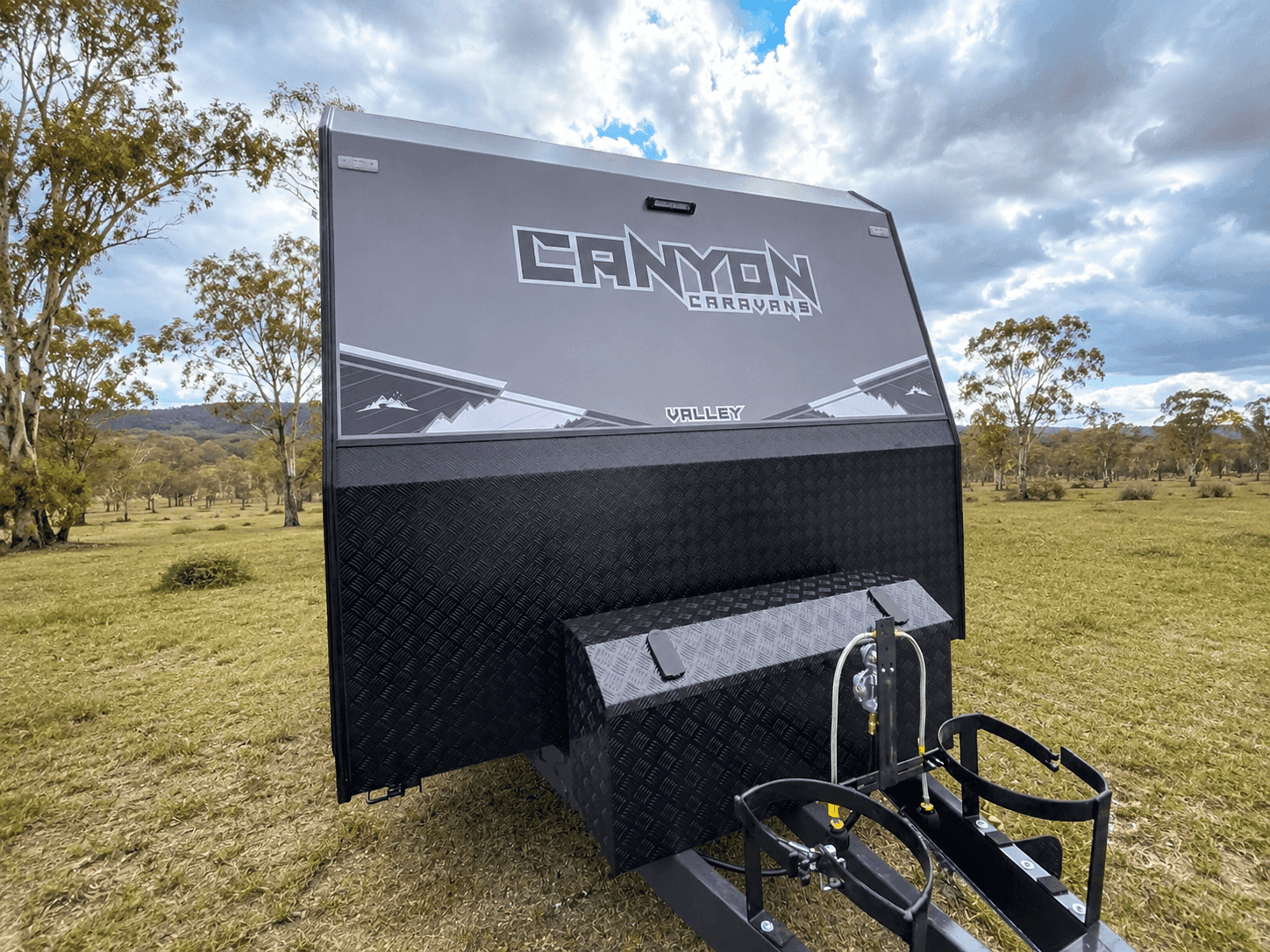

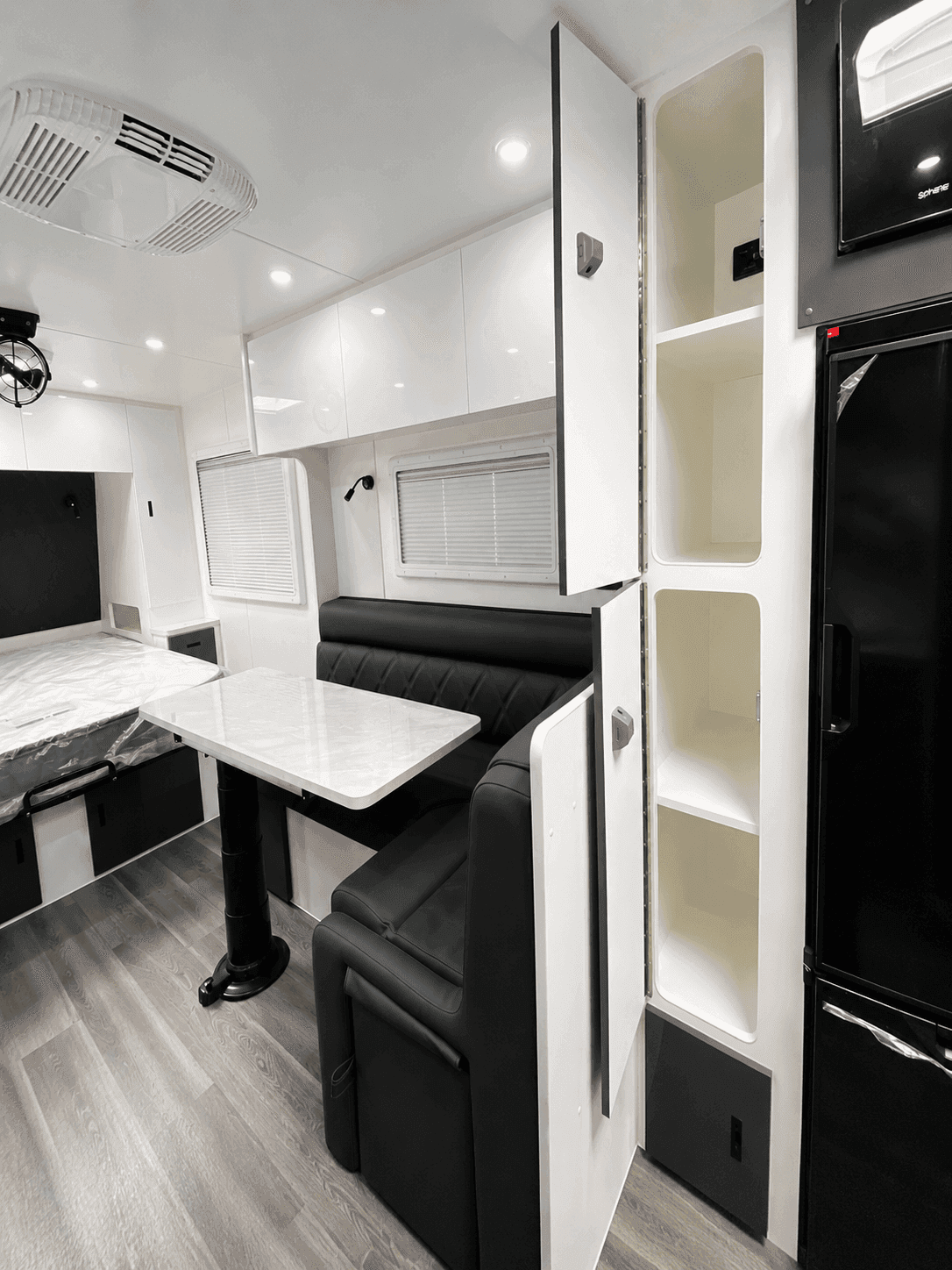

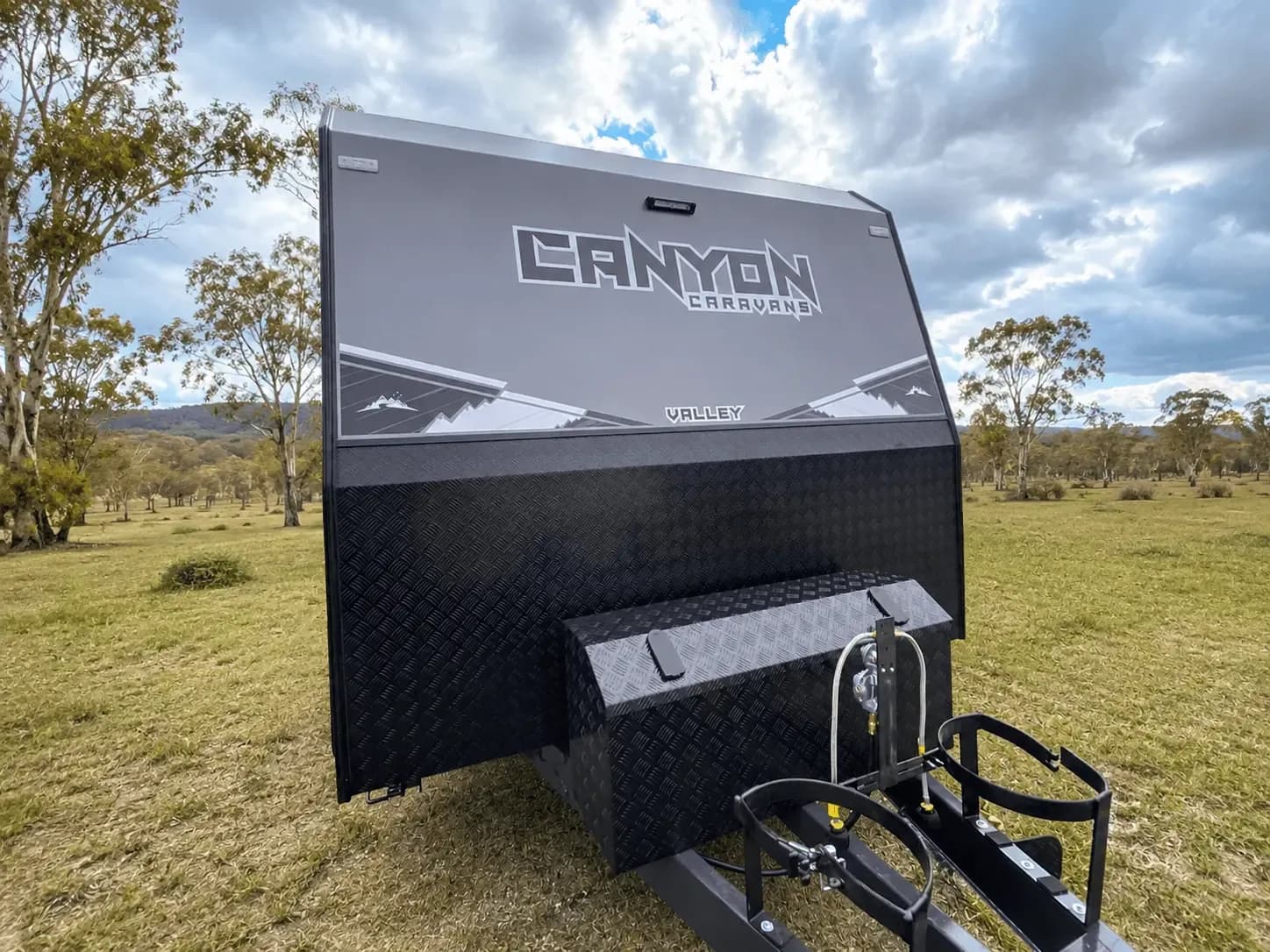

/01/Gallery

Around and inside.

/02/Floorplan

Laid out for living in.

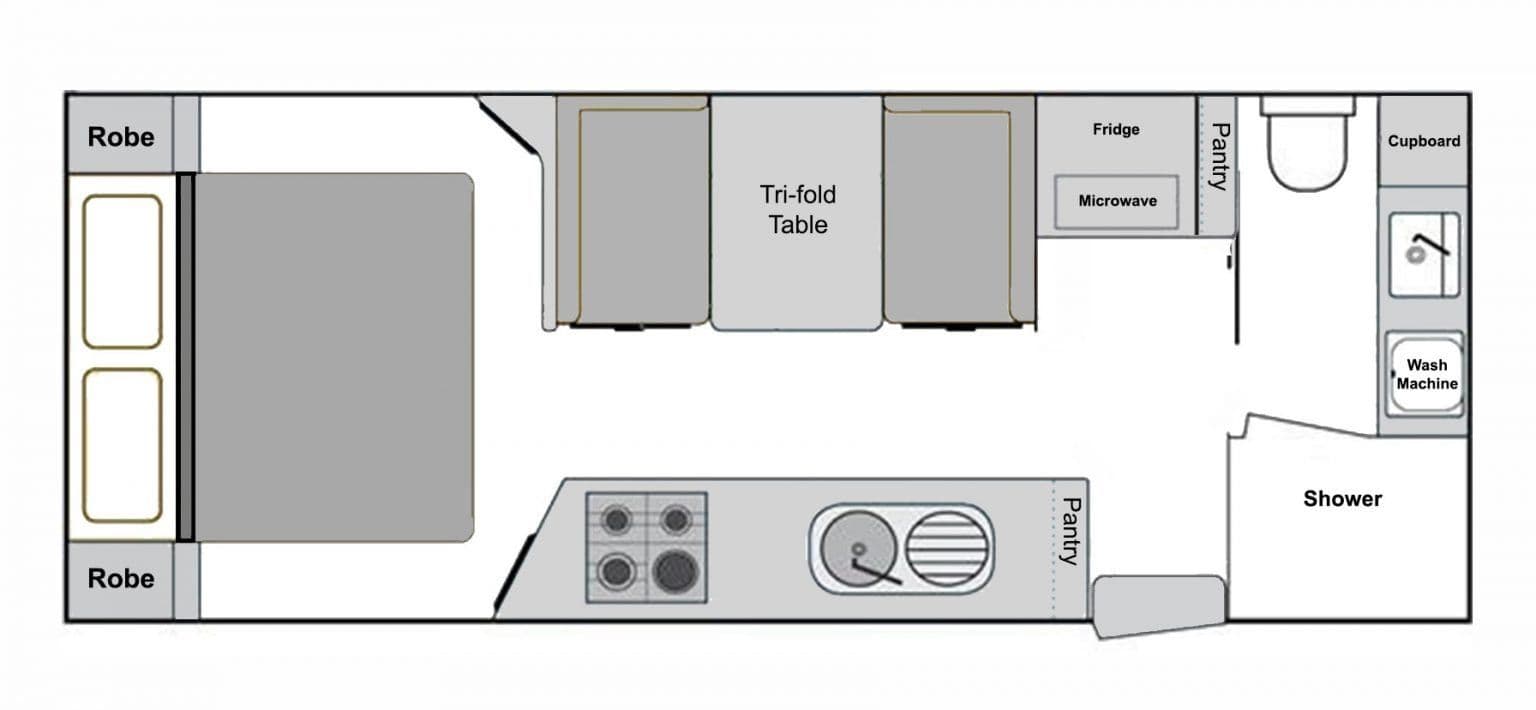

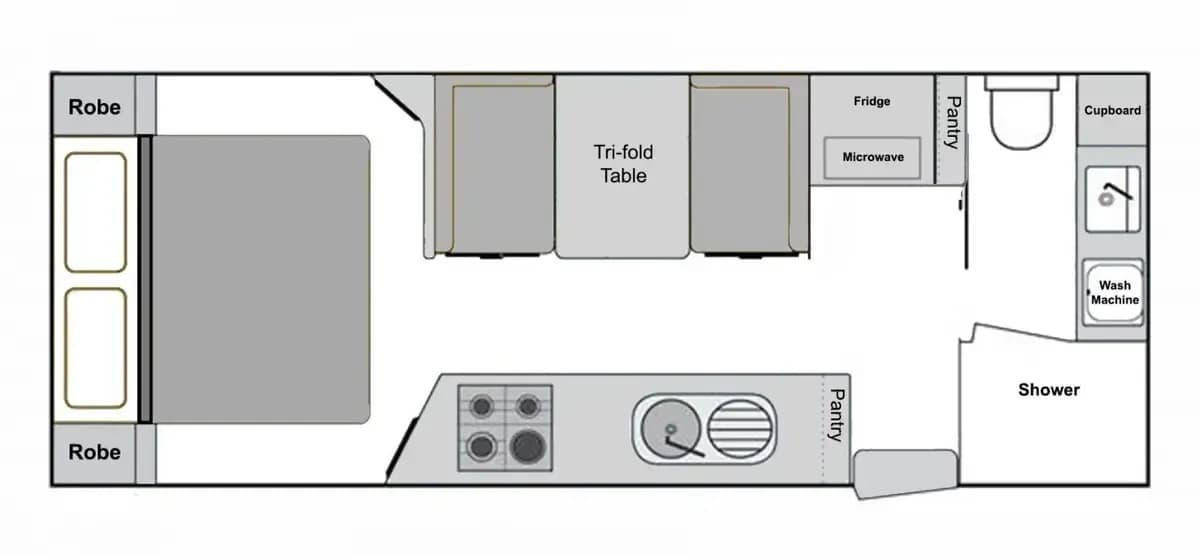

Valley floorplan — queen bed front, café dinette and kitchen centre, ensuite rear — Indicative floorplan — layouts and inclusions vary with your final spec.

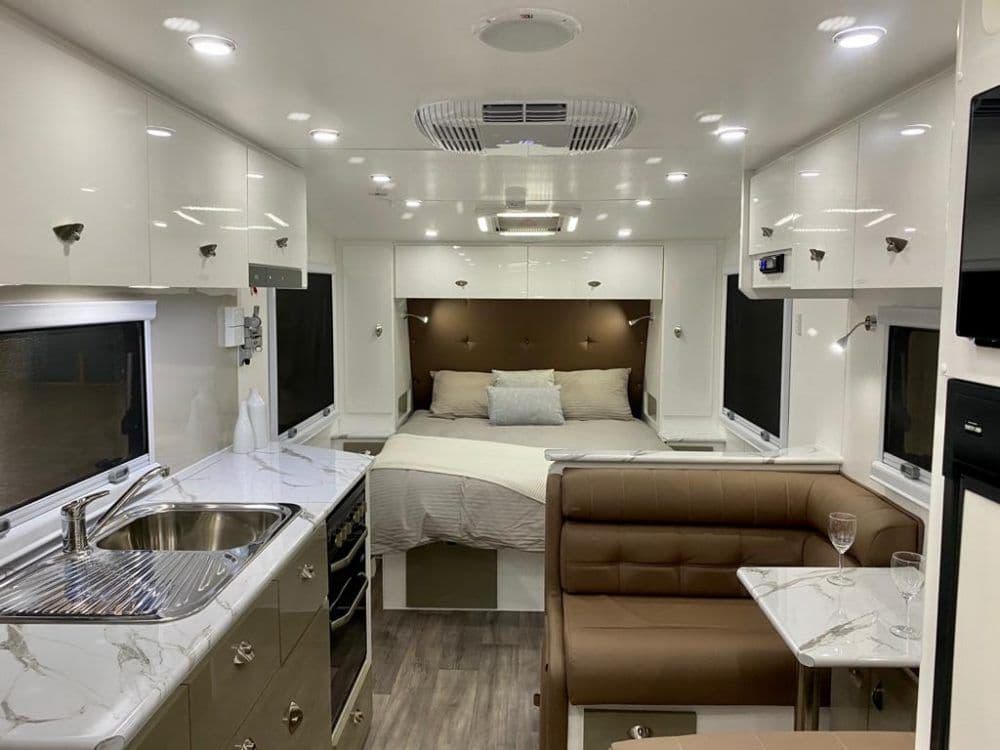

Queen island bed 6′2″, lift-up with strut assist

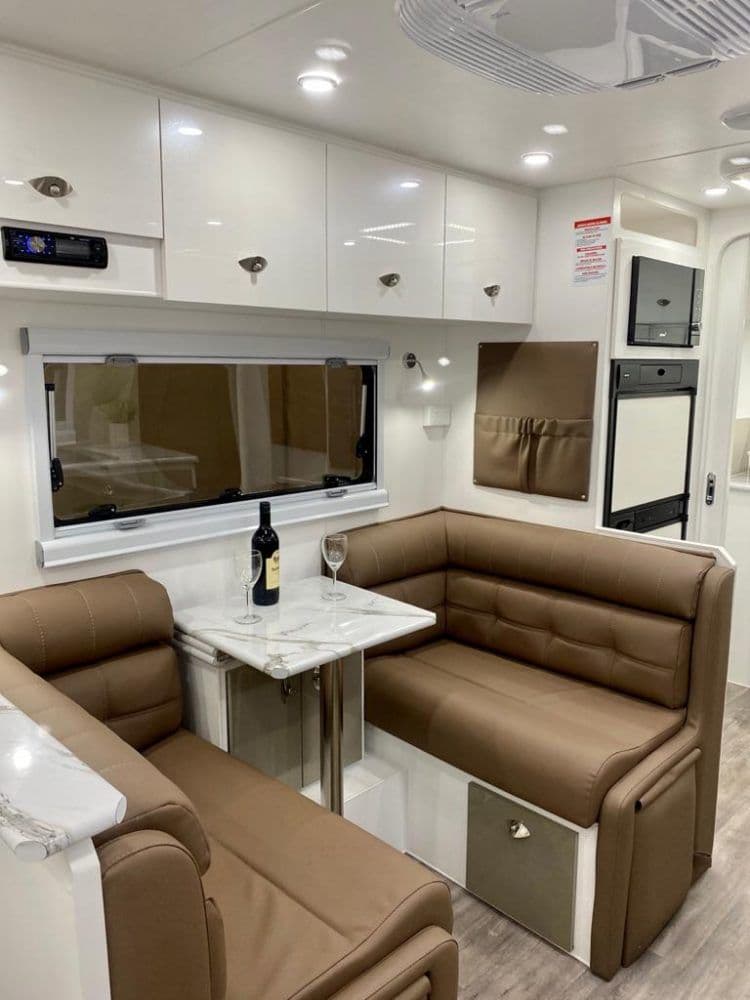

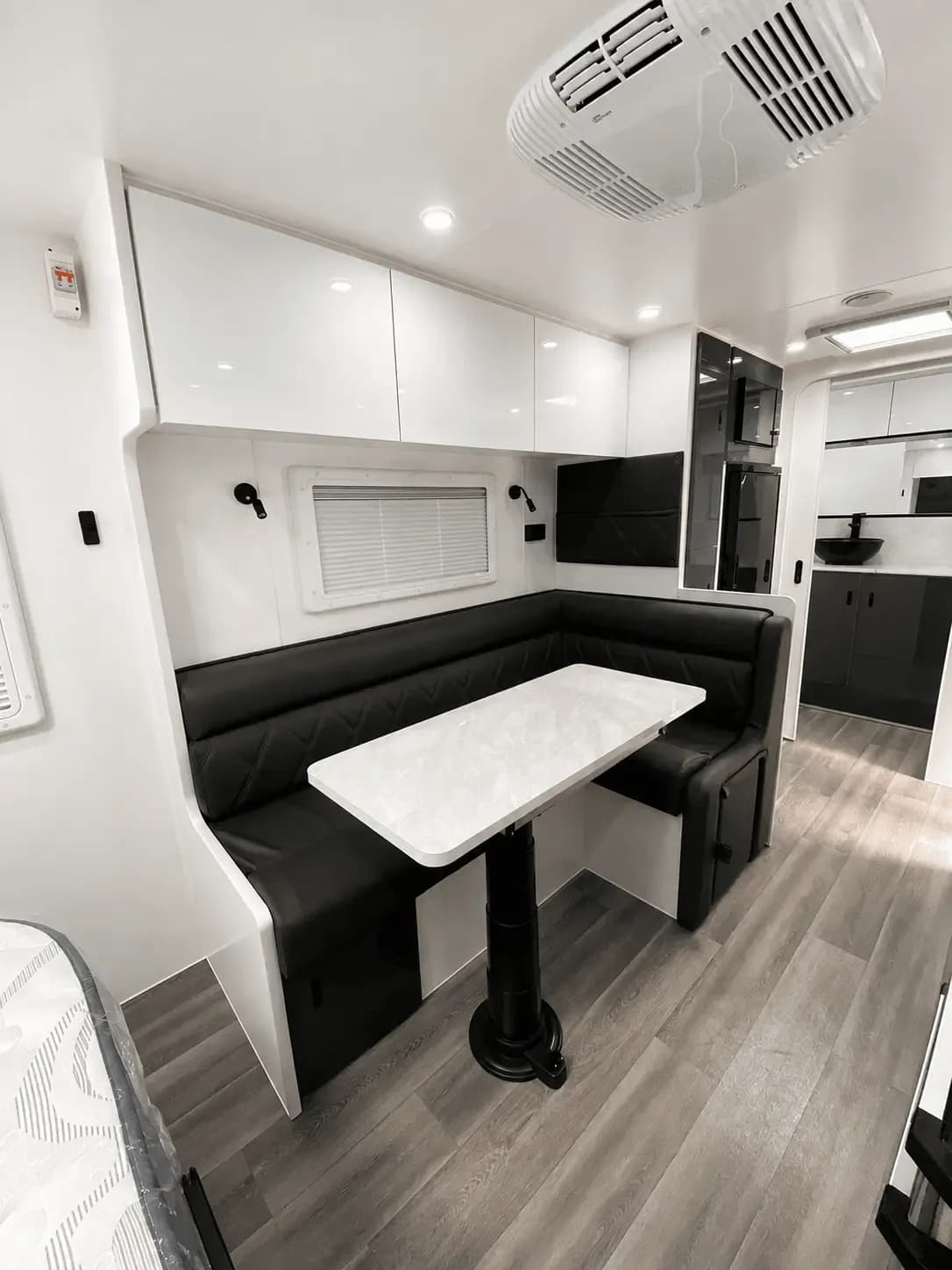

Café dinette with tri-fold table

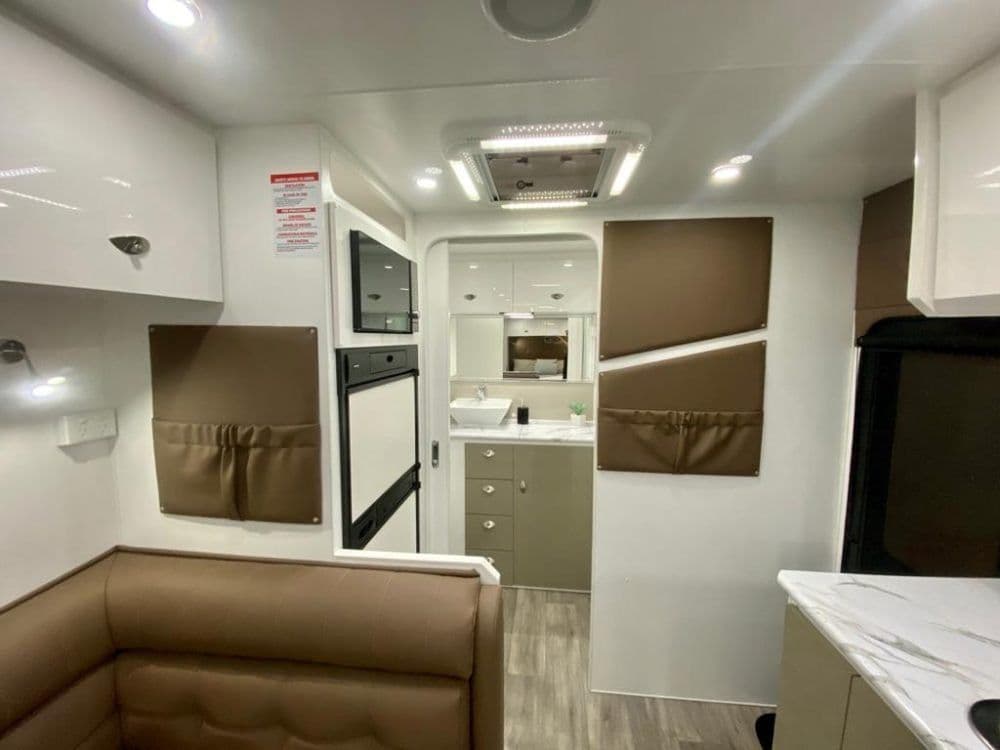

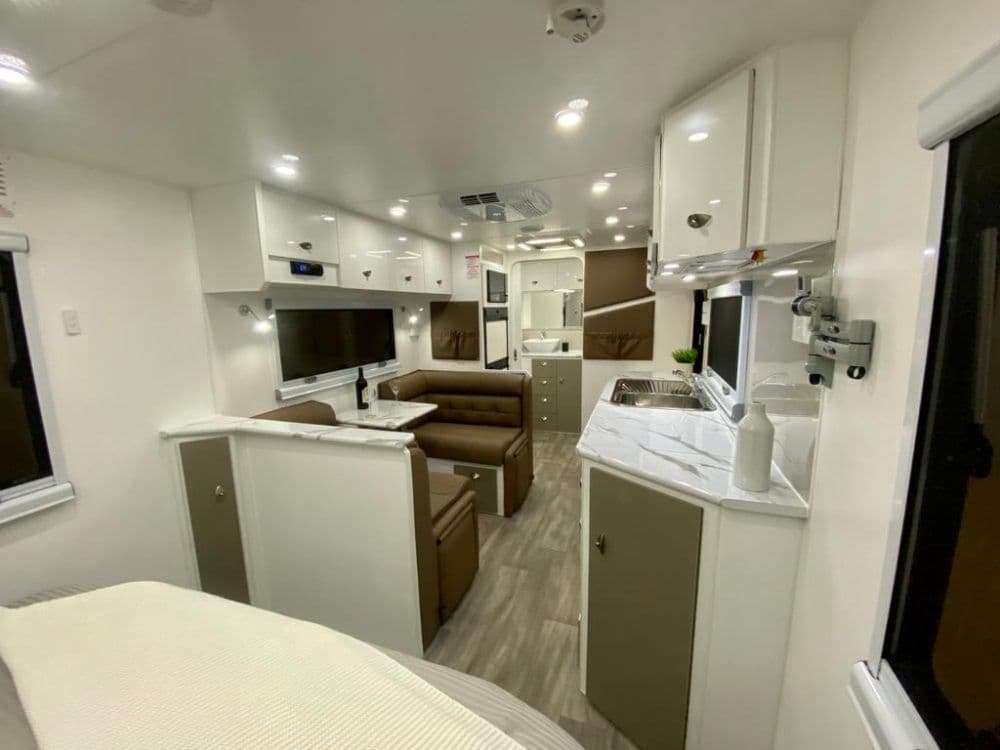

Full rear ensuite — shower, toilet, vanity + washing machine

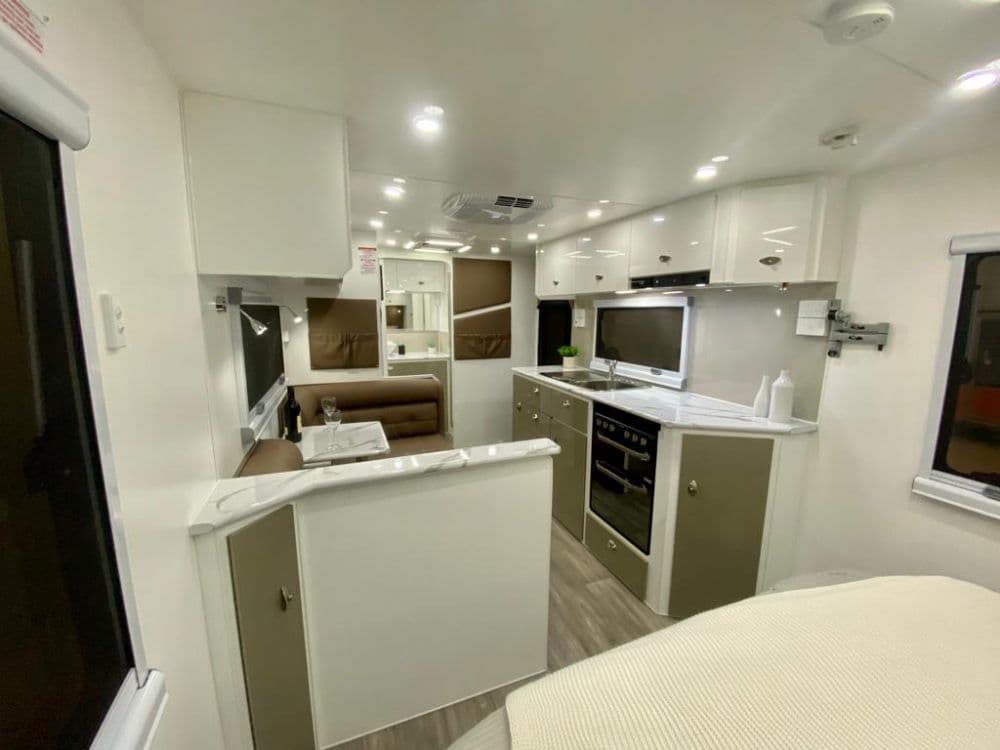

Twin pantries flanking fridge and kitchen bench

/03/Weights

The numbers.

2550^kg
Tare: 3350^kg
ATM: 800^kg
Payload: 150^kg
Ball

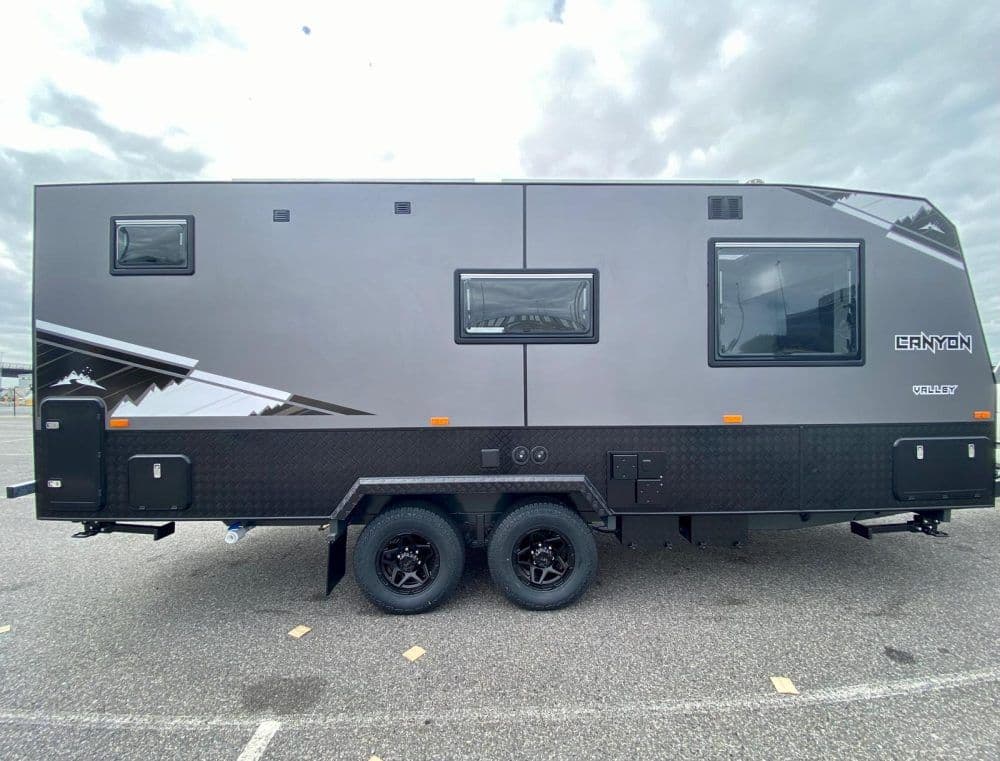

All weights approximate — 20′6″ overall, twin axle Al-Ko Roller Rocker, semi or fully off-road suspension available. Weights vary with your final spec; we confirm everything before build.

Know about it more.

Download the full Valley brochure for detailed specs, inclusions and floorplans — handy to have on hand while you plan your build.

/04/Inclusions

Standard, not optional.

What ships on every Valley before you’ve customised a thing. Every list is a starting point — add, swap or trim with us at the factory.

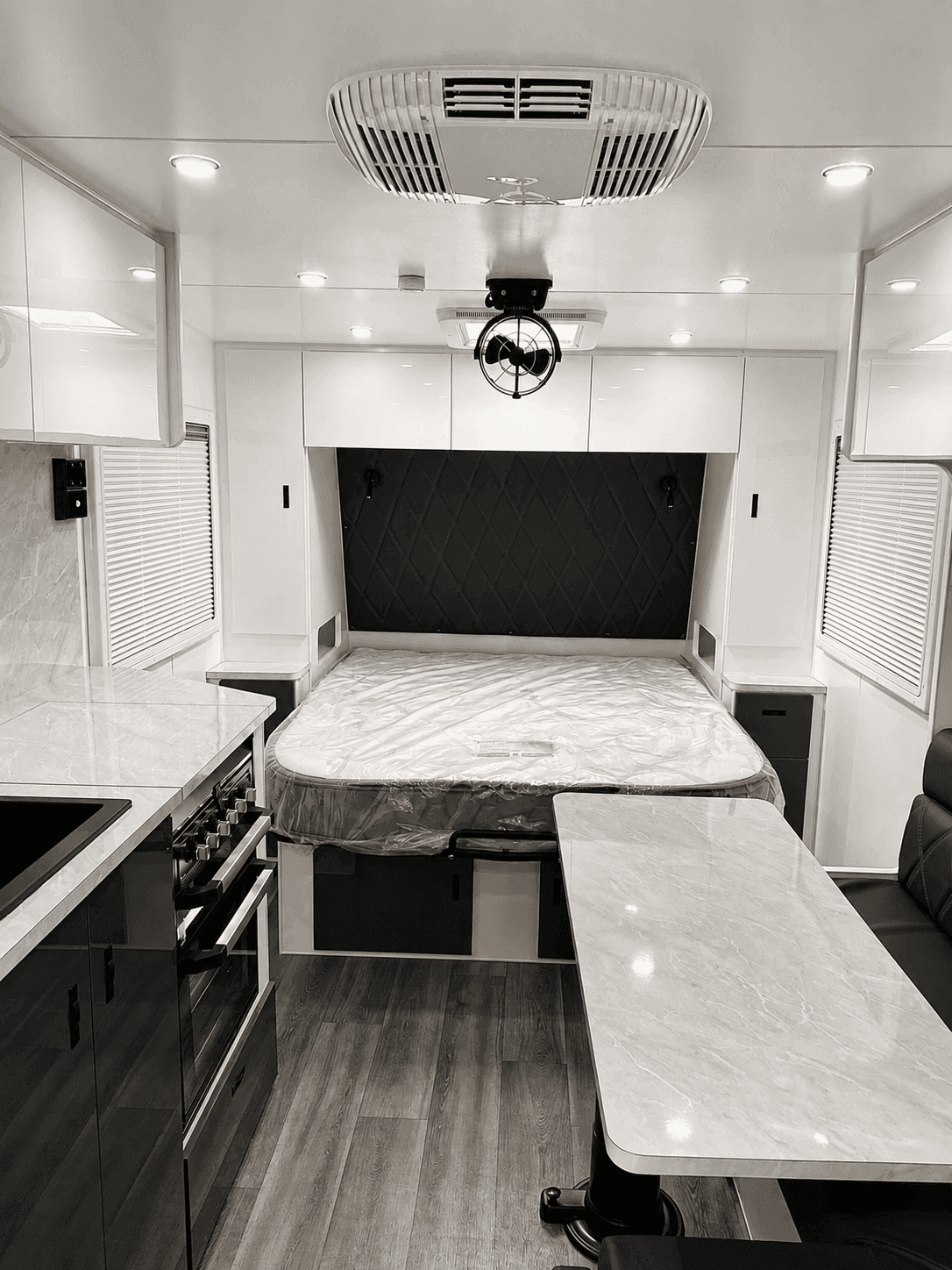

Queen island bed 6′2″ — lift-up with strut assist, storage underneath
Inner-spring pillow-top mattress
Niches both sides of queen bed
Robes and bedside tables with storage
Roof-mounted skylight hatches

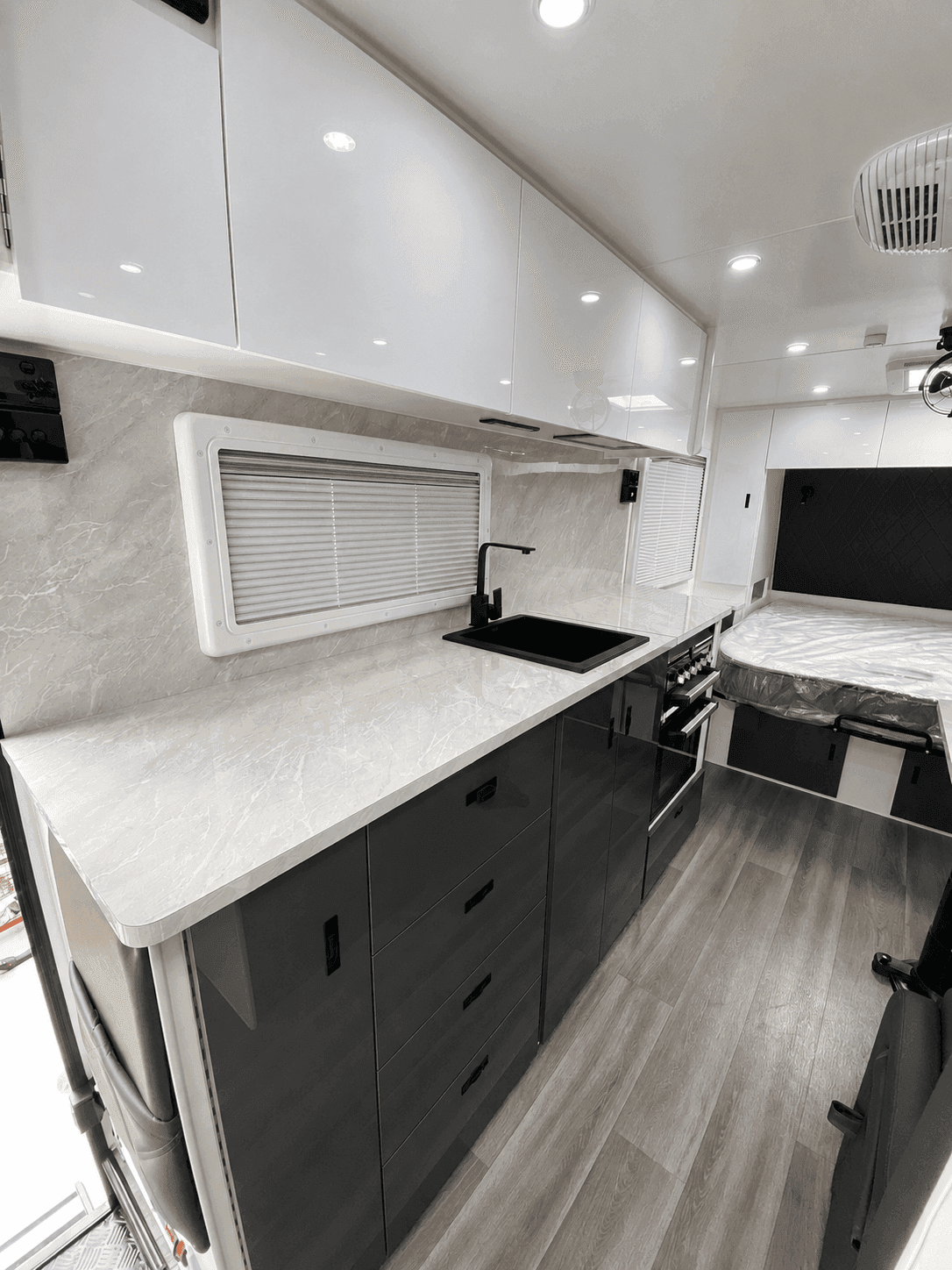

Stainless steel sink, full-height splashback

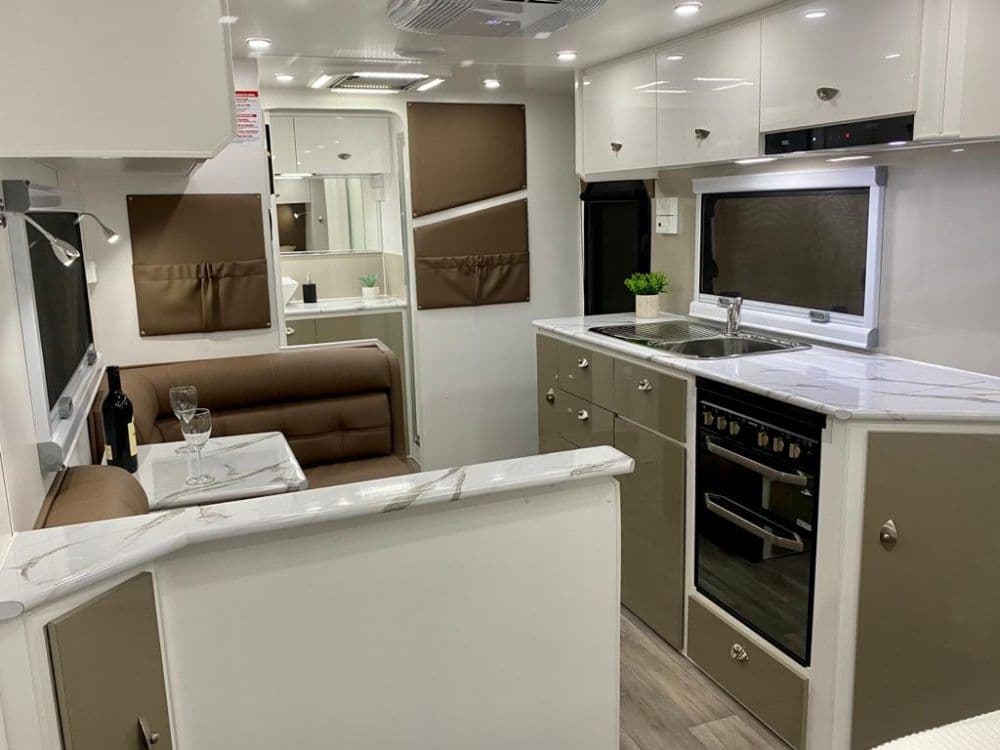

Kitchen laminate benchtops — stove recessed under hinged bench top
Cupboard doors in a wide range of colours, piano hinges throughout
Overhead cupboards with piano hinges and double struts
Latched handles in black or silver; drawers on rollers and runners

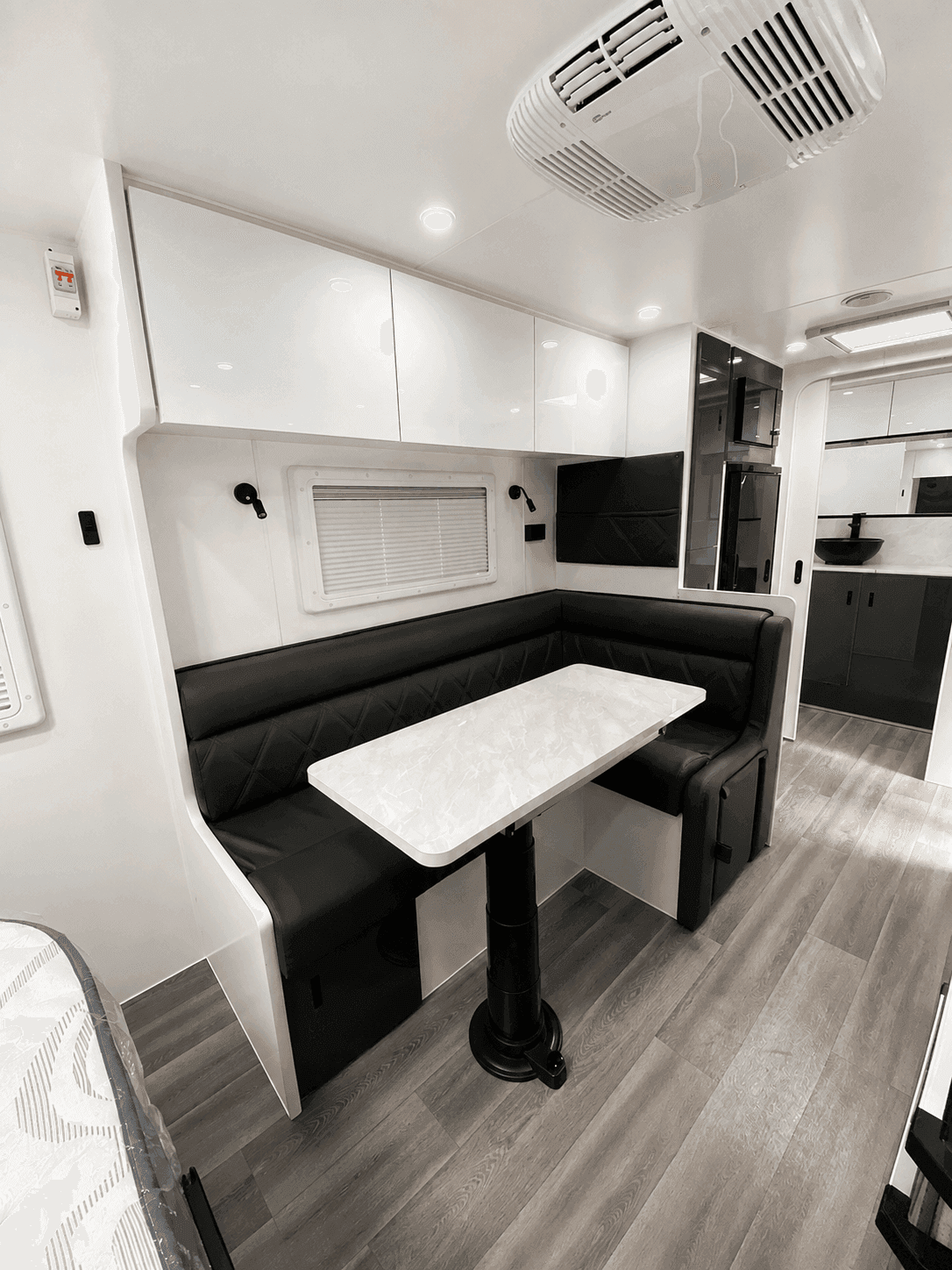

Leather-look lounge with café dinette
Magazine holder

171 L Thetford 3-way fridge/freezer

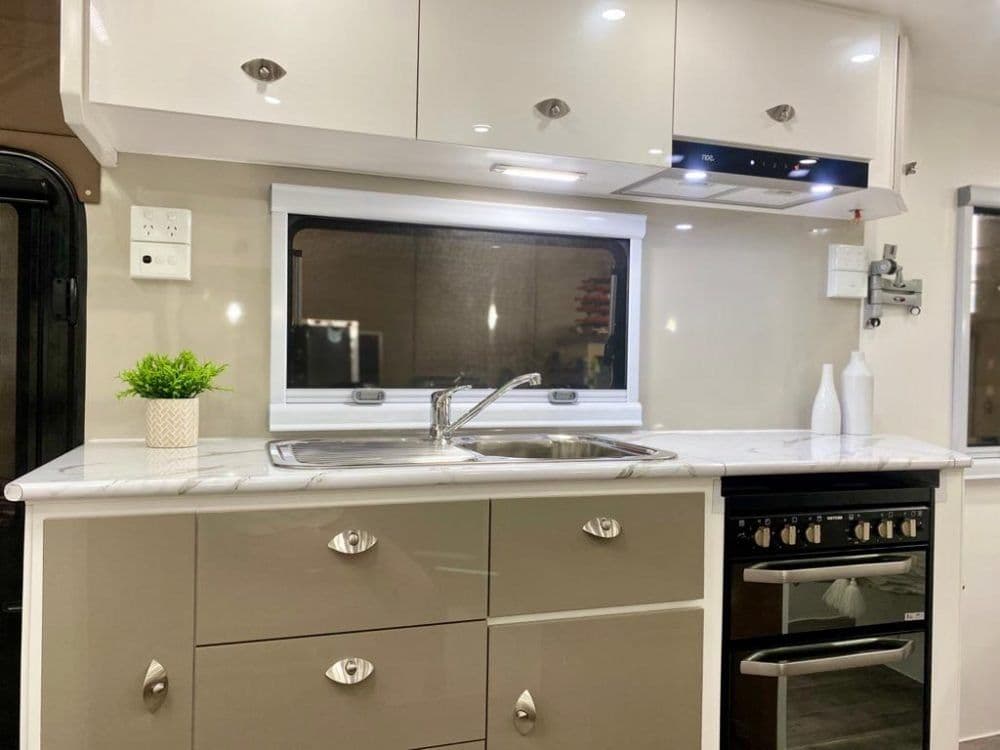

3 gas + 1 electric burner stove top with mini grill
Belaire 3500 reverse-cycle air conditioner
Flush-mounted rangehood, microwave oven

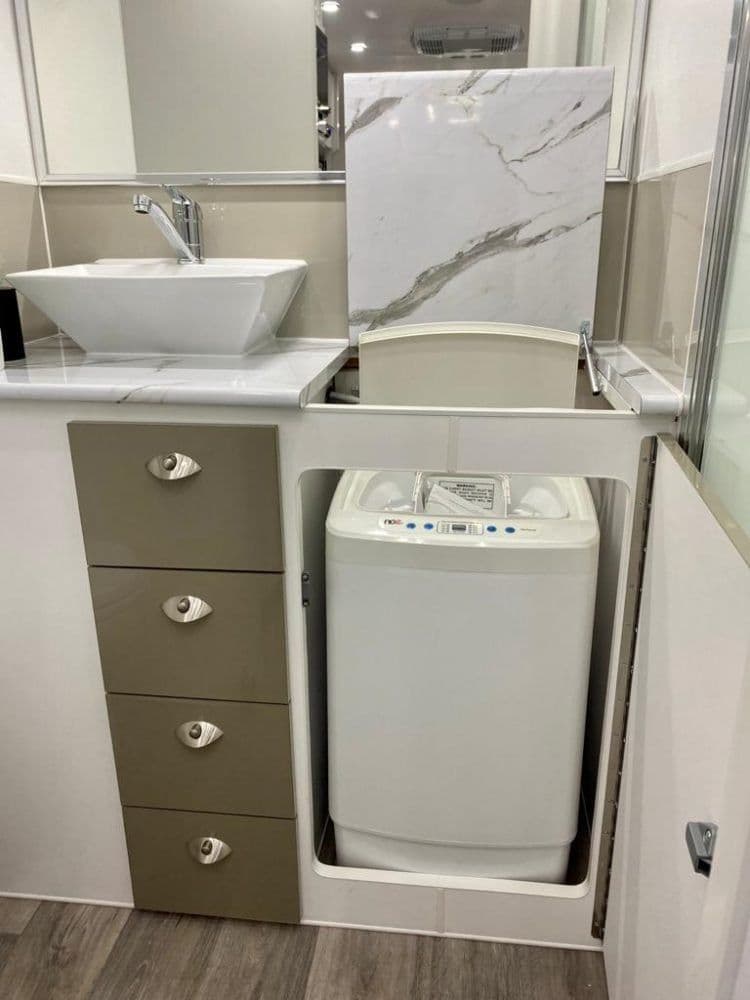

Washing machine
2-way gas/electric stainless Swift hot water system
24″ 12 V HD LED TV, stereo head unit
2 internal + 2 marine-grade external speakers

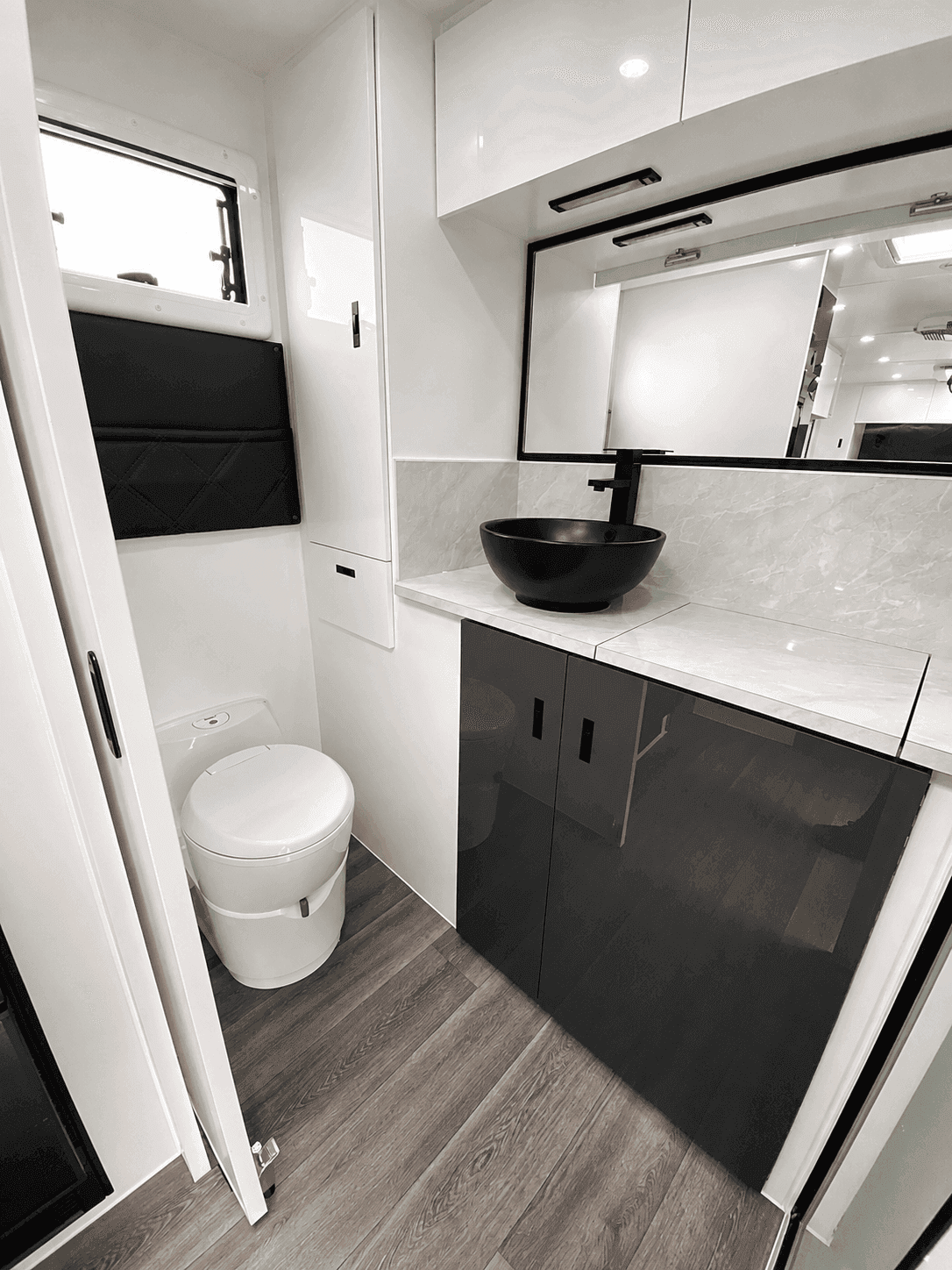

Separate one-piece shower with flick mixer & adjustable head

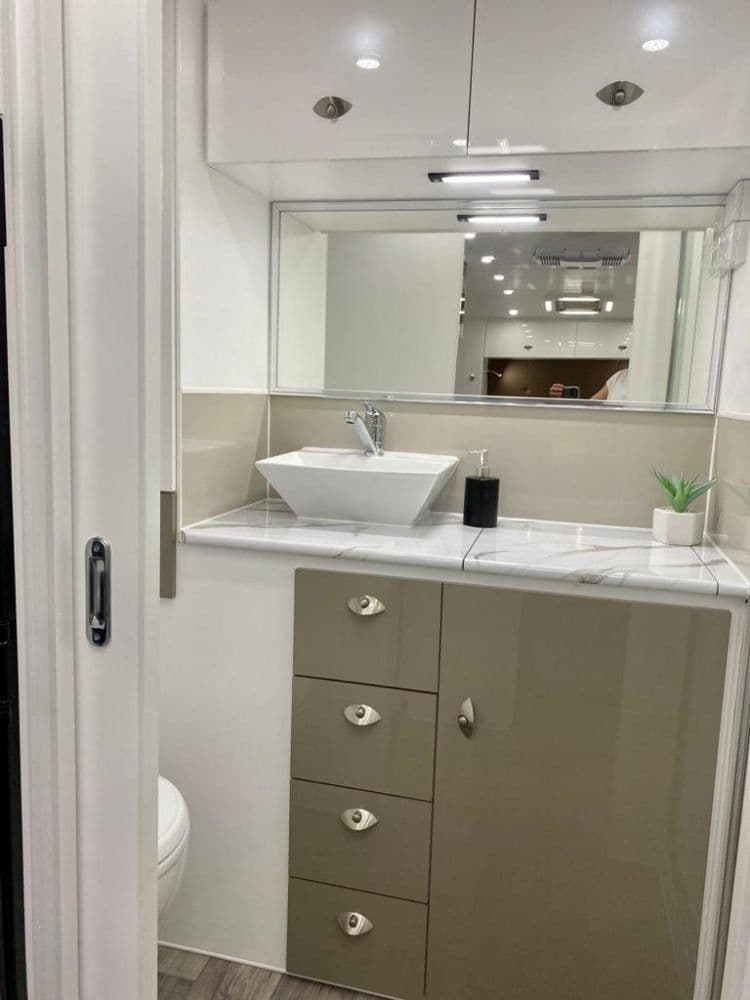

Ceramic basin with flick mixer
Vanity with storage cupboard

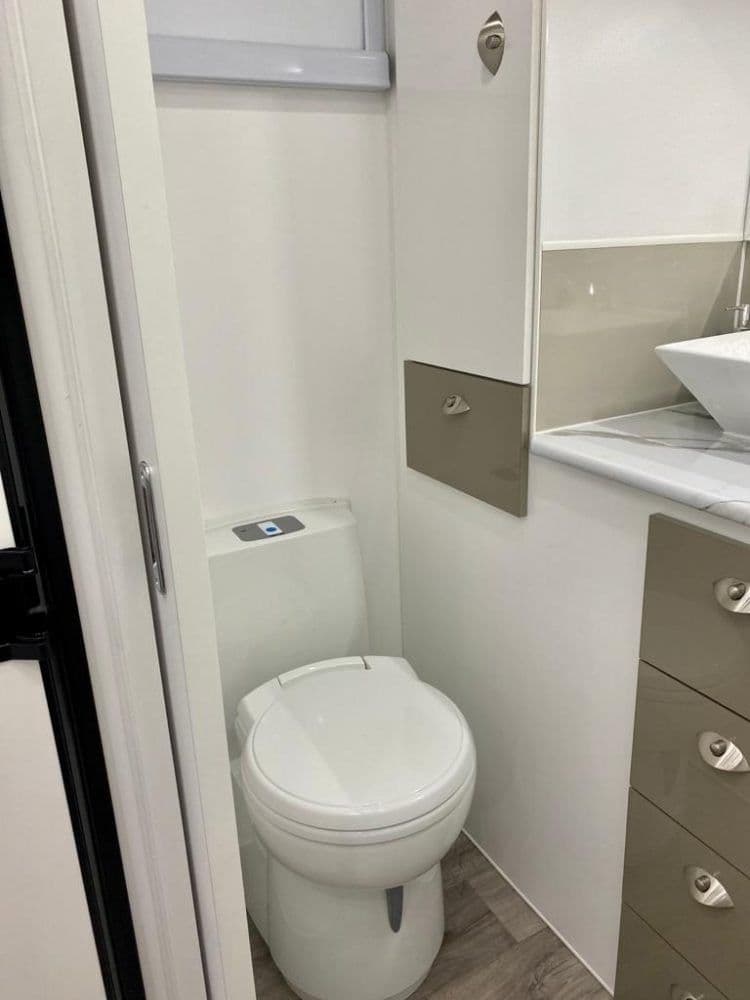

Thetford cassette toilet
12 V fan and hatch in shower

Battery charging system
2 × 100 Ah deep-cycle batteries + battery charger
2 × 170 W solar panels with regulator
LED downlights throughout; reading lights in bedroom & living
LED lighting: door grab handle, front & rear of van, tunnel boot, 2 × awning
240 V double power points throughout (including niches); 12 V / USB points
External 240 V power point + external 12 V socket
Water tank gauges, smoke alarm
LED tail lights, side markers & clearance lights
12-pin flat trailer plug + Anderson plug
TV points internal and external

2 × 95 L fresh-water tanks + 95 L grey-water tank
2 × 9 kg gas bottles, external gas bayonet
Mains pressure limiter on inlet, lockable water fillers
12 V water pump, tap on A-frame

Choice of composite or aluminium cladding
Double-glazed windows with block-out blind & fly screen
Entry door & fly screen

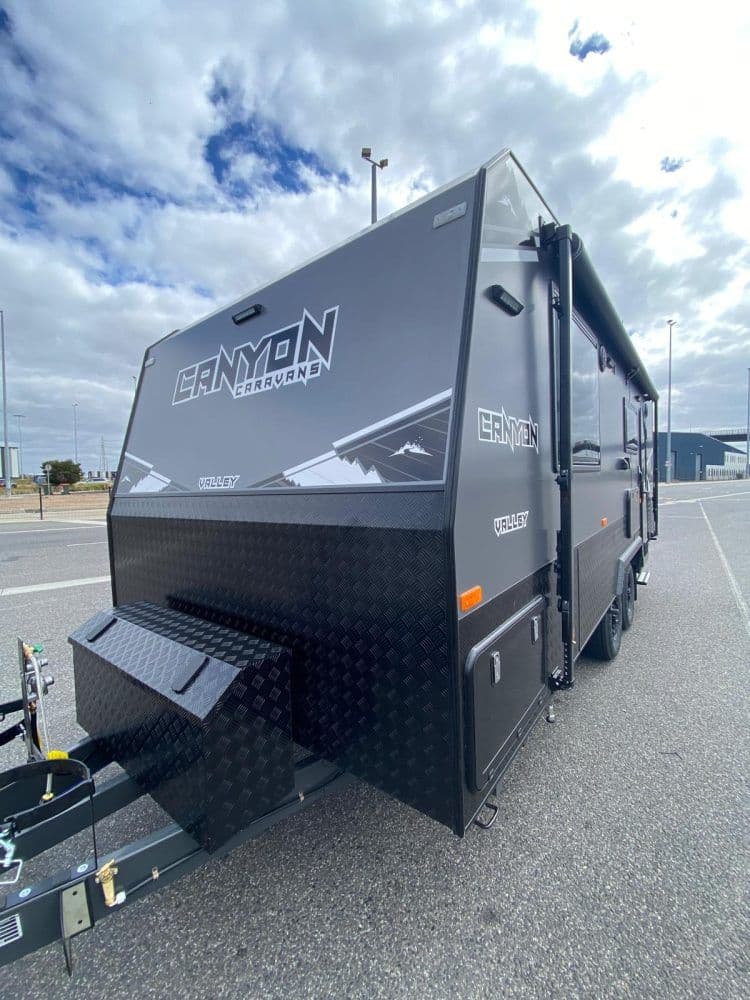

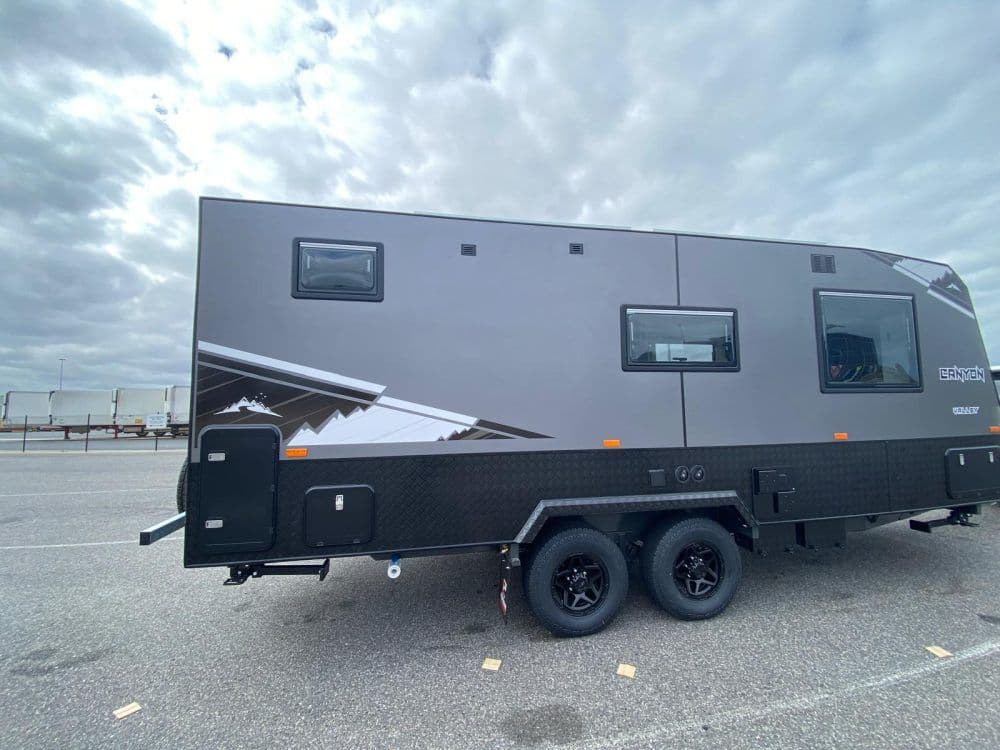

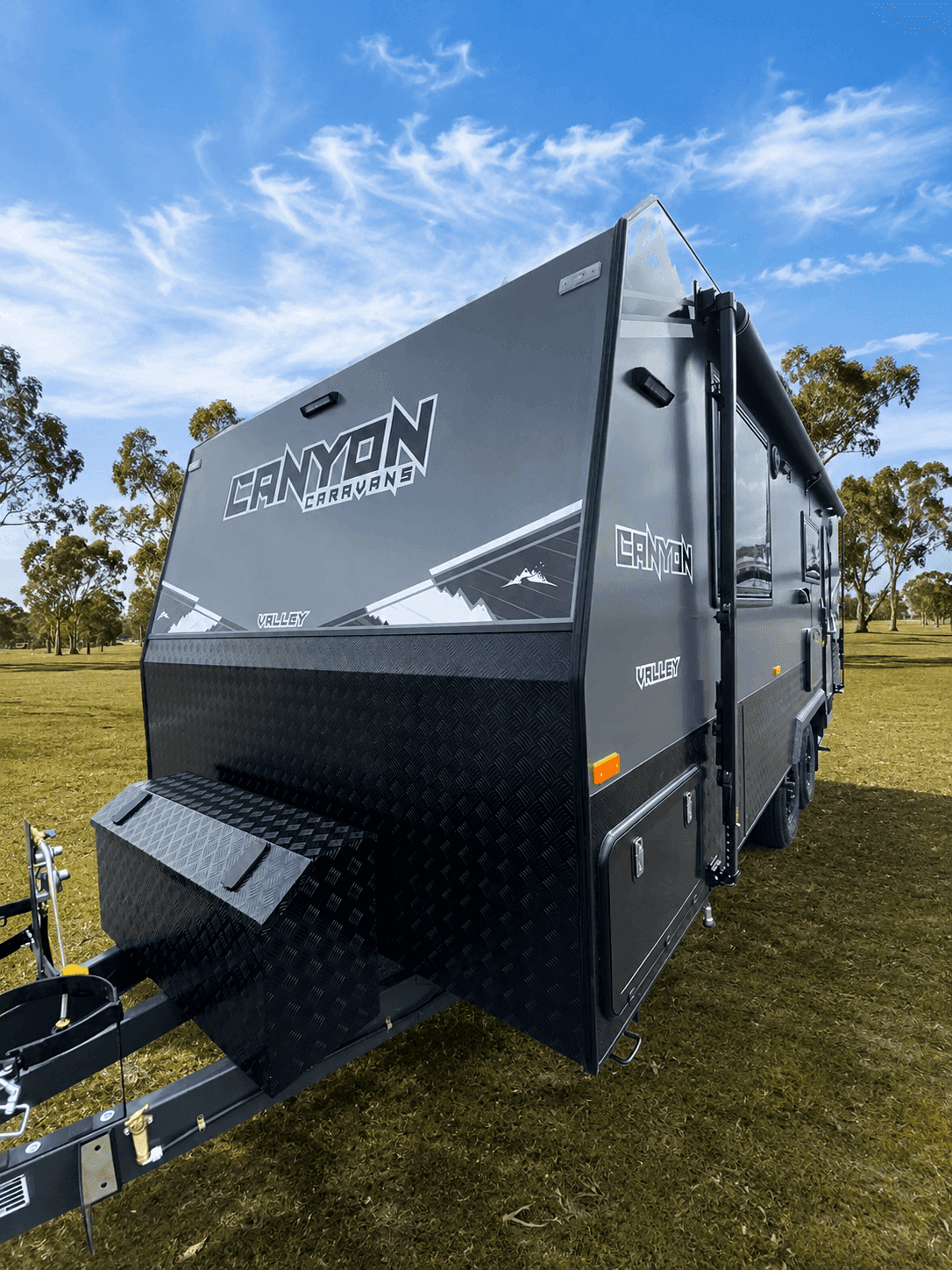

Large front tunnel boot with dual access; toolbox on A-frame
Checker plate on front, back and sides

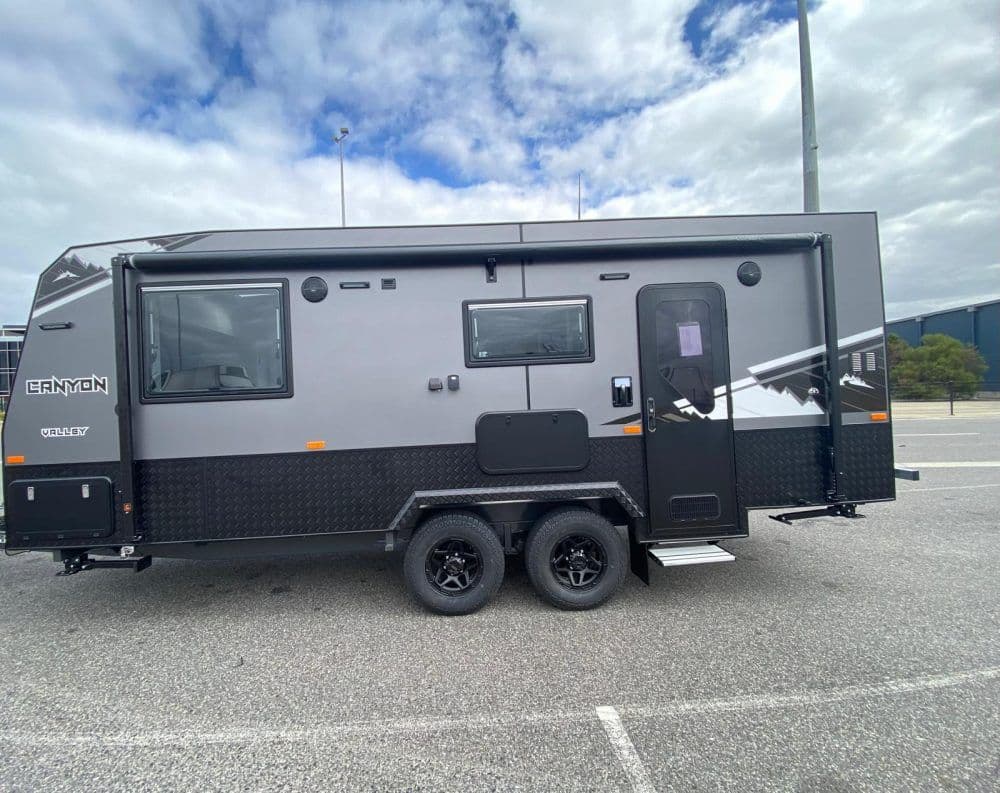

Picnic table, roll-out awning

6″ chassis with 2″ lift; extended heavy-duty 6″ drawbar
Twin axle Al-Ko Roller Rocker suspension
15″ alloy wheels + spare
10″ electric brakes + breakaway system
3-arm rear bumper bar, jockey wheel on A-frame
4 quick-drop adjustable corner stabilisers
Aluminium pull-out step, mud flaps

/05/Construction

Built like it means it.

Structural water-resistant floor
Structural-grade, highly water-resistant deck under one-piece vinyl in your choice of colour
Meranti hardwood or CNC-cut pine frame
Solid timber walls under aluminium cladding — composite optional
Fully insulated walls & roof
Comfortable at Birdsville in January and Jindabyne in July
